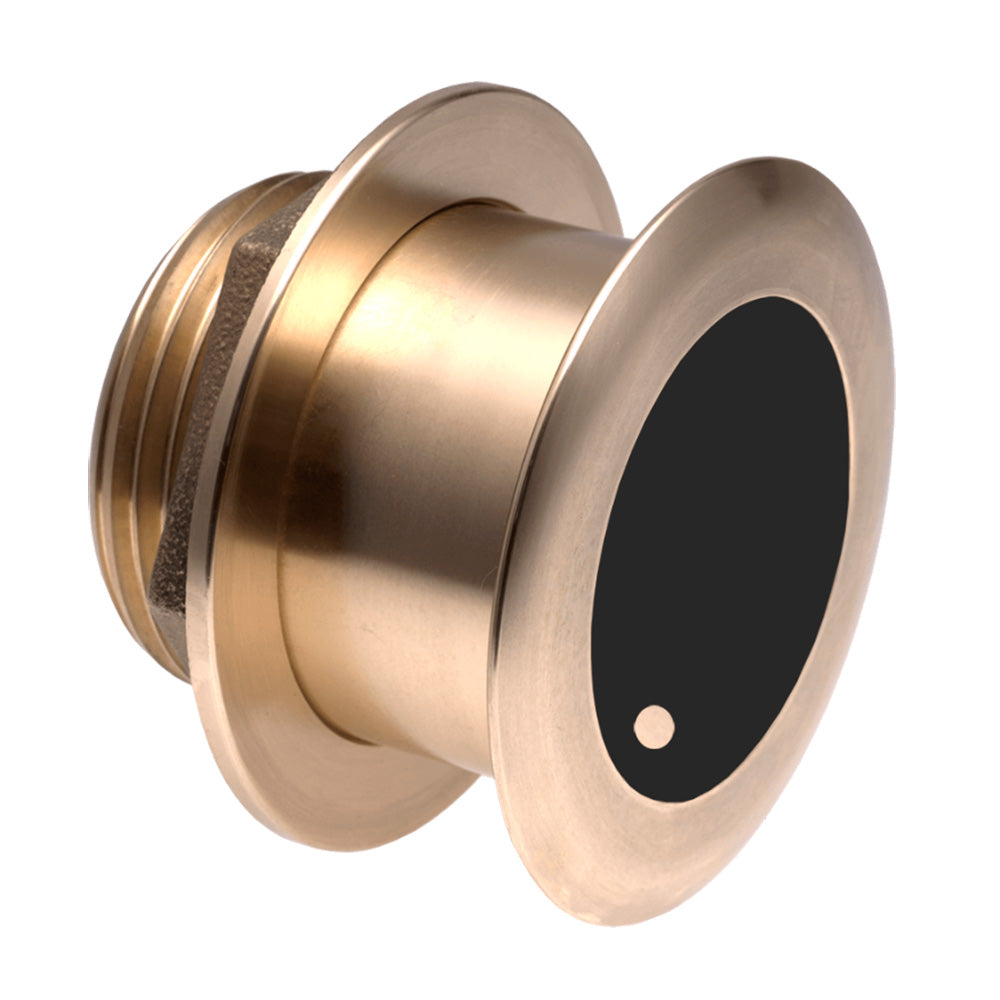

B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector for Garmin
Airmars innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 port-starboard to 16 average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmars new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMARs most popular Tilted Element housings which includes a ceramic element fixed at a 20, 12 or 0 angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Features:
- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300)
- Medium frequency: 60-100 kHz
- 57 to 73 beamwidth (port/starboard)
- 16 average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Bronze housing for use on stepped, planing, or displacement hull
- Low-profile, thru-hull housing yields good resolution at speed when installed properly
- Exclusive Xducer ID technology
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Upgrade your fishing game with the Airmar B175 Medium Ultra-Wide 1kW 12-Degree 12-Pin Connector transducer, designed specifically for Garmin systems. This innovative tilted element thru-hull transducer operates at a medium frequency range of 60-100 kHz, delivering an impressively wide beamwidth of 57-73 degrees port-to-starboard and an average of 16 degrees fore-aft. Ideal for anglers targeting pelagic species, the B175MW ensures maximum underwater coverage, allowing you to locate fish with unprecedented accuracy.
Engineered for superior performance, the B175 transducer features a depth and fast-response water-temperature sensor, enabling you to track depths down to 1,300 feet (400 m). The bronze housing is perfect for various hull types, ensuring durability and reliability on the water. Plus, its low-profile design allows for excellent resolution at speed, making it an essential tool for serious anglers looking to enhance their fishing experience.
Features:
* Depth and fast-response water-temperature sensor: Depth and fast-response water-temperature sensor
* 1 kW with depth tracking down to 400 m (1,300 ft): 1 kW with depth tracking down to 400 m (1,300 ft)
* Medium frequency: 60-100 kHz for superior mid-depth performance: Medium frequency: 60-100 kHz for superior mid-depth performance
* 57 to 73 degrees beamwidth (port/starboard) for maximum coverage: 57 to 73 degrees beamwidth (port/starboard) for maximum coverage
* 16 degrees average fore/aft angle for enhanced targeting: 16 degrees average fore/aft angle for enhanced targeting
* 40 kHz of total bandwidth from one transducer: 40 kHz of total bandwidth from one transducer
* Bronze housing suitable for stepped, planing, or displacement hulls: Bronze housing suitable for stepped, planing, or displacement hulls
* Low-profile, thru-hull design for good resolution at speed when installed correctly: Low-profile, thru-hull design for good resolution at speed when installed correctly
* Exclusive Xducer ID technology for easy identification: Exclusive Xducer ID technology for easy identification
