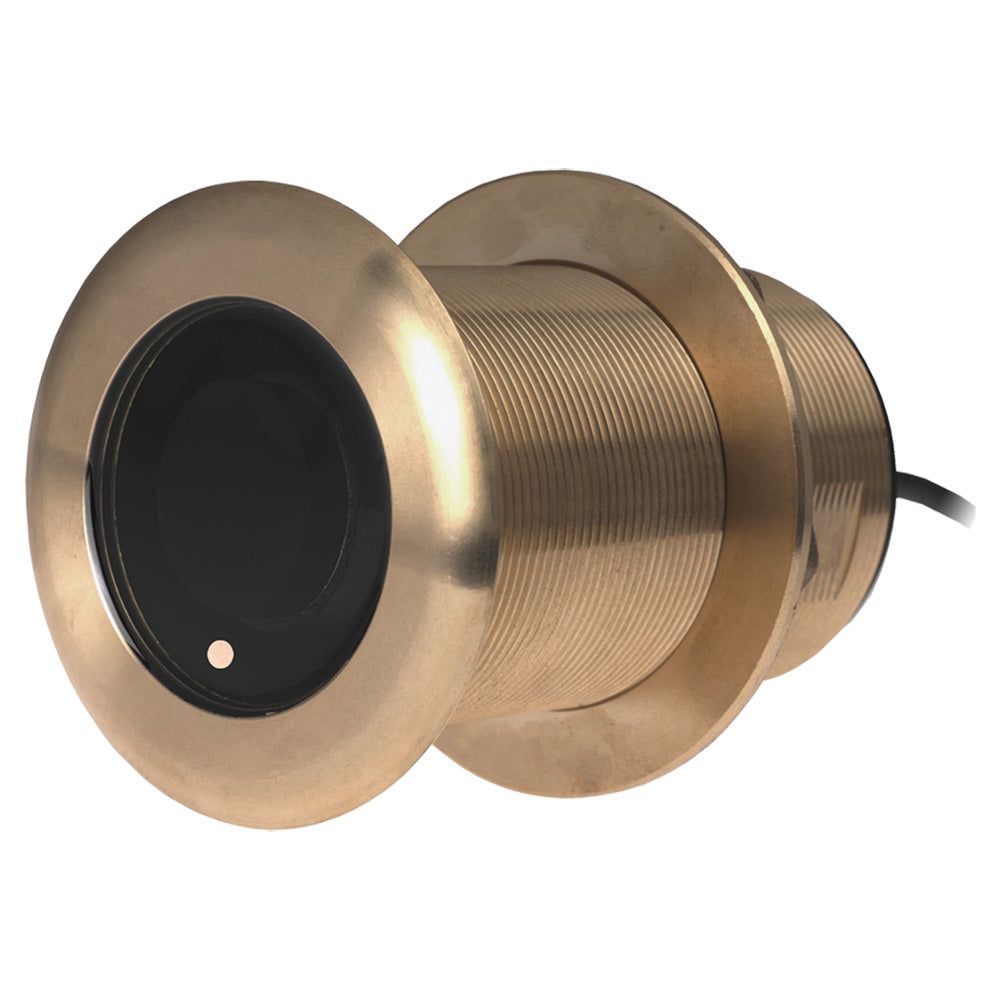

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
Depth and fast-response water temperature sensing
600 W of power
Dual-frequency element:
50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
200 kHz with a 12 beamwidth for depth performance to 206 m (700)
Perfect for center-console or trailered boats
Low-profile bronze housing extends only 5 mm (3/16) outside the hull
No effect on your boats running performance
Bronze housing for fiberglass or wood hull
Also available in a stainless steel housing (SS60) for use with all hull materials
Specifications:
Power Rating: 600 W
Max Deadrise Angle: 24
Housing: Bronze
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 8 m (26)
Hole Size: 60 mm (2-3/8)
Usable Shaft Length: 68.5 mm (2.70)
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45/12
Max Deadrise: Up to 24
Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
Mounting Style: Tilted Element Thru-Hull
Retractable housing: No
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: Yes
Weight: 1.4 kg (3 lbs)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. The Airmar B60-20-MM is a high-performance bronze thru-hull transducer designed for serious boaters. With a power rating of 600 W and the innovative Tilted Element feature, this transducer ensures accurate depth readings and fast-response water temperature sensing. The ceramic element is positioned at a 20-degree angle to correct for hull deadrise, delivering precise echo returns for optimal performance. Whether you're navigating or fishing, this transducer is perfect for center-console or trailered boats.
Constructed from durable bronze, the low-profile housing of the B60-20-MM extends just slightly beyond the hull, ensuring minimal impact on your boat's running performance. This versatile transducer operates at dual frequencies, providing depth performance up to 1,200 feet at 50 kHz and 700 feet at 200 kHz. Ideal for fiberglass or wood hulls, this model is a reliable choice for both leisure yachting and fishing enthusiasts.
Features: * Depth and fast-response water temperature sensing: Depth and fast-response water temperature sensing
* 600 W of power for superior performance: 600 W of power for superior performance
* Dual-frequency element for versatile depth readings: Dual-frequency element for versatile depth readings
* Wide 45-degree beamwidth at 50 kHz for deep depth performance: Wide 45-degree beamwidth at 50 kHz for deep depth performance
* Narrow 12-degree beamwidth at 200 kHz for improved shallow depth detection: Narrow 12-degree beamwidth at 200 kHz for improved shallow depth detection
* Perfect for center-console or trailered boats: Perfect for center-console or trailered boats
* Low-profile bronze housing minimizes hull intrusion: Low-profile bronze housing minimizes hull intrusion
* No adverse effect on boat's running performance: No adverse effect on boat's running performance
* Compatible with fiberglass or wood hulls: Compatible with fiberglass or wood hulls
* Also available in stainless steel for all hull materials: Also available in stainless steel for all hull materials
