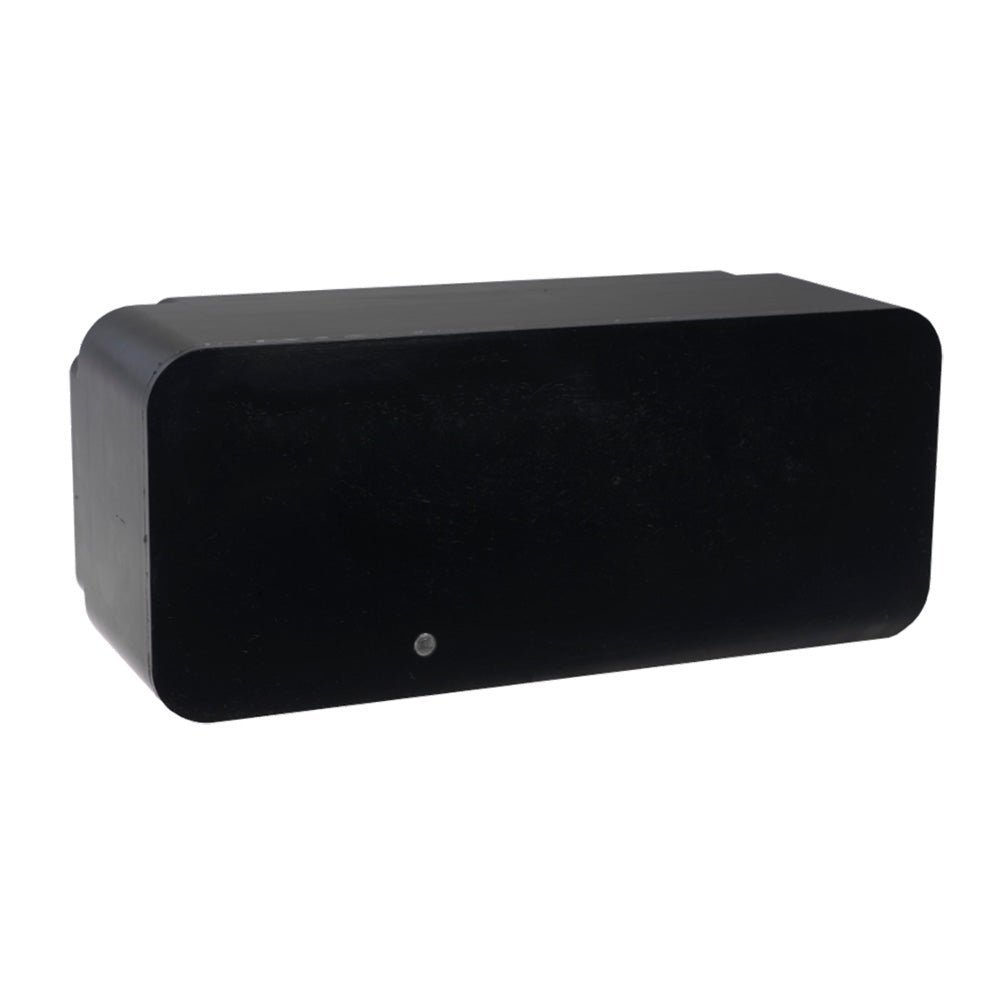

Airmar PM111C-LHW CHIRP 2kW Wide-Beam Pocket/Keel Mount Transducer

PM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No Connector

Get more coverage under your boat with Airmars unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500').

The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmars dual-frequency, Chirp-ready transducer with wide-beam coverage.

Features:

• The depth and fast-response water-temperature sensor


• 2 kW of power for great deep-water performance from the low frequency


• 2 kW low frequency: 38 to 75 kHz


  • 19 to 10 port-starboard beamwidth


  • 10 to 5 fore-aft beamwidth


  • Maximum depth of 1,829 m (6,000')






• 1 kW high frequency: 150 to 250 kHz


  • 25 constant beamwidth


  • Maximum depth of 152 m (500')






• 137 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth


• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation


• High wide beamwidth yields more coverage for detecting fish in the upper-water column


• Urethane housing designed for custom mounting in a cavity


• Also available in an external (R109LHW) mount


• Exclusive Xducer ID technology

Specifications:

• Weight: 13.6 kg (30 lb.)


• Recommended Boat Length:12 m (40') and above


• Hull Material:Solid fiberglass only


• Hull Deadrise:Accommodates any deadrise angle based on custom cavity construction


• Acoustic Window:Epoxy/urethane


• Transducer Element: 16 internal broadband ceramic assemblies

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Enhance your fishing experience with the Airmar PM111C-LHW CHIRP 2kW Wide-Beam Pocket/Keel Mount Transducer. This innovative transducer offers an impressive wide beam and high-frequency capabilities, operating between 150 to 250 kHz for exceptional resolution. Its unique design ensures double the coverage compared to traditional narrow-beam options, making it perfect for both inshore and pelagic fishing. With the capability to detect fish up to 500 feet deep, you*ll never miss a catch.

Equipped with a low-frequency band and 2 kW of power, this transducer excels in deep-water performance while maintaining outstanding shallow-water capabilities. The Airmar PM111C-LHW is designed with advanced features like a rapid-response water temperature sensor and exclusive Xducer ID technology, ensuring you have all the information you need at your fingertips. Whether you're a seasoned angler or just starting, this transducer will elevate your fishing game and provide you with the clarity and coverage you need.

Features:
* Wide-beam technology for enhanced coverage under the boat: Wide-beam technology for enhanced coverage under the boat
* High-frequency range of 150 to 250 kHz for superior resolution: High-frequency range of 150 to 250 kHz for superior resolution
* Low-frequency band with 2 kW of power for deep-water performance: Low-frequency band with 2 kW of power for deep-water performance
* Depth and fast-response water-temperature sensor for accurate readings: Depth and fast-response water-temperature sensor for accurate readings
* Designed for custom mounting in a cavity with durable urethane housing: Designed for custom mounting in a cavity with durable urethane housing
* Exclusive Xducer ID technology for easy identification: Exclusive Xducer ID technology for easy identification
* Maximum depth capabilities of up to 6,000 feet: Maximum depth capabilities of up to 6,000 feet
* Ideal for both inshore and pelagic fishing applications: Ideal for both inshore and pelagic fishing applications
