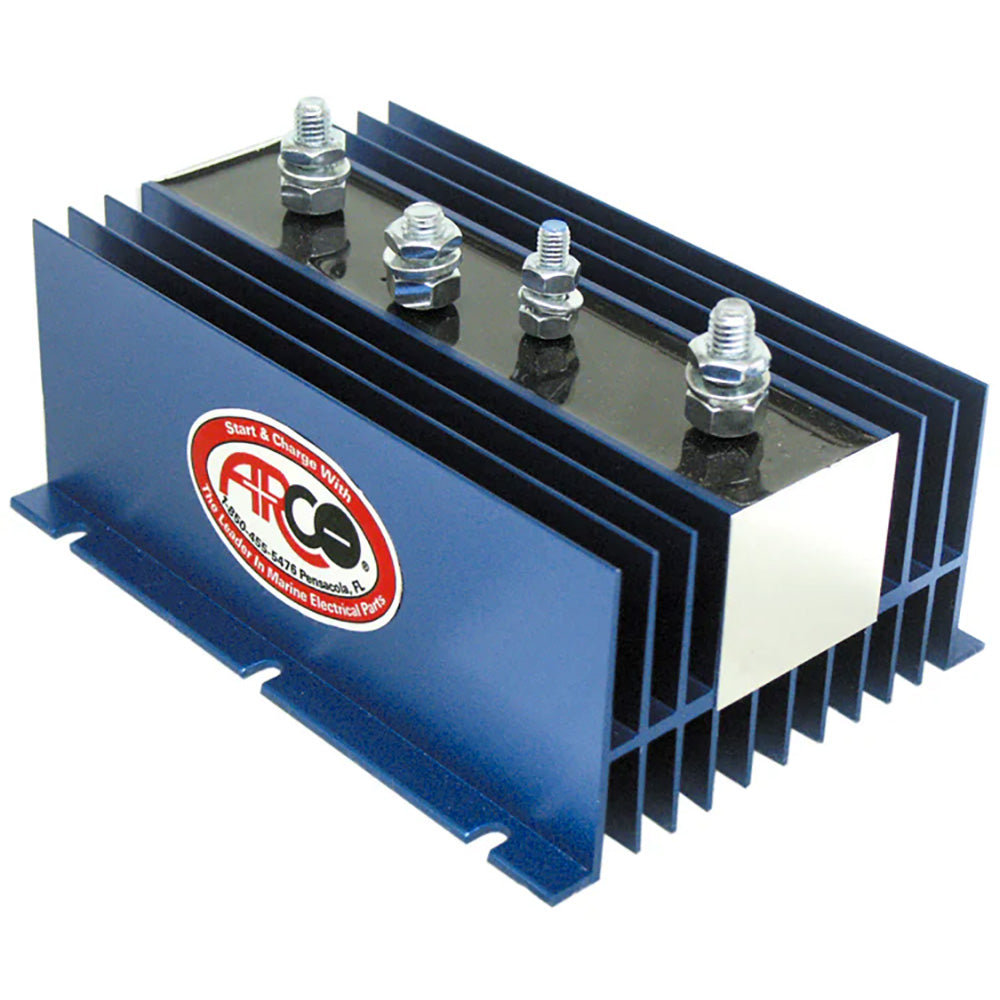

BI-1203-3A Battery Isolator - 120A - 1 Alternator, 3 Battery
The Arco Marine BI-1203-3A is an inboard/outboard battery isolator that can handle 1 alternator, 3 batteries, and 120A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.
*Includes exciter terminal
Features:
- 1 alternator, 3 batteries, 120A max
- Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
- Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
- When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
- Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.
NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The ARCO Marine BI-1203-3A Battery Isolator is a robust solution designed for inboard and outboard applications, accommodating 1 alternator and up to 3 batteries. With a maximum capacity of 120A, this isolator is suitable for various systems operating on 12, 24, or 32 volts. It is compatible with alternators ranging from 10 to 350 amps, ensuring versatile functionality for your boating needs.
One of the key advantages of the BI-1203-3A is its ability to manage battery charging automatically. This solid-state device allows electrical current to flow in one direction only, preventing higher-charged batteries from discharging into lower-charged ones. As a result, both batteries receive optimal charging in proportion to their needs while the engine is running, without the need to adjust selector switches.
Whether you're navigating calm waters or tackling rough seas, the ARCO Marine BI-1203-3A Battery Isolator guarantees reliable performance and efficient battery management. Ensure your boating experience is smooth and worry-free with this essential accessory.
Features:
* Max capacity of 120A for 1 alternator and 3 batteries: Max capacity of 120A for 1 alternator and 3 batteries
* Solid-state design allows current flow in one direction only: Solid-state design allows current flow in one direction only
* Automatic charging of both batteries in proportion to their needs: Automatic charging of both batteries in proportion to their needs
* No need to change switch positions for charging with selector switches: No need to change switch positions for charging with selector switches
* Proportions output or charging current to batteries as required: Proportions output or charging current to batteries as required
