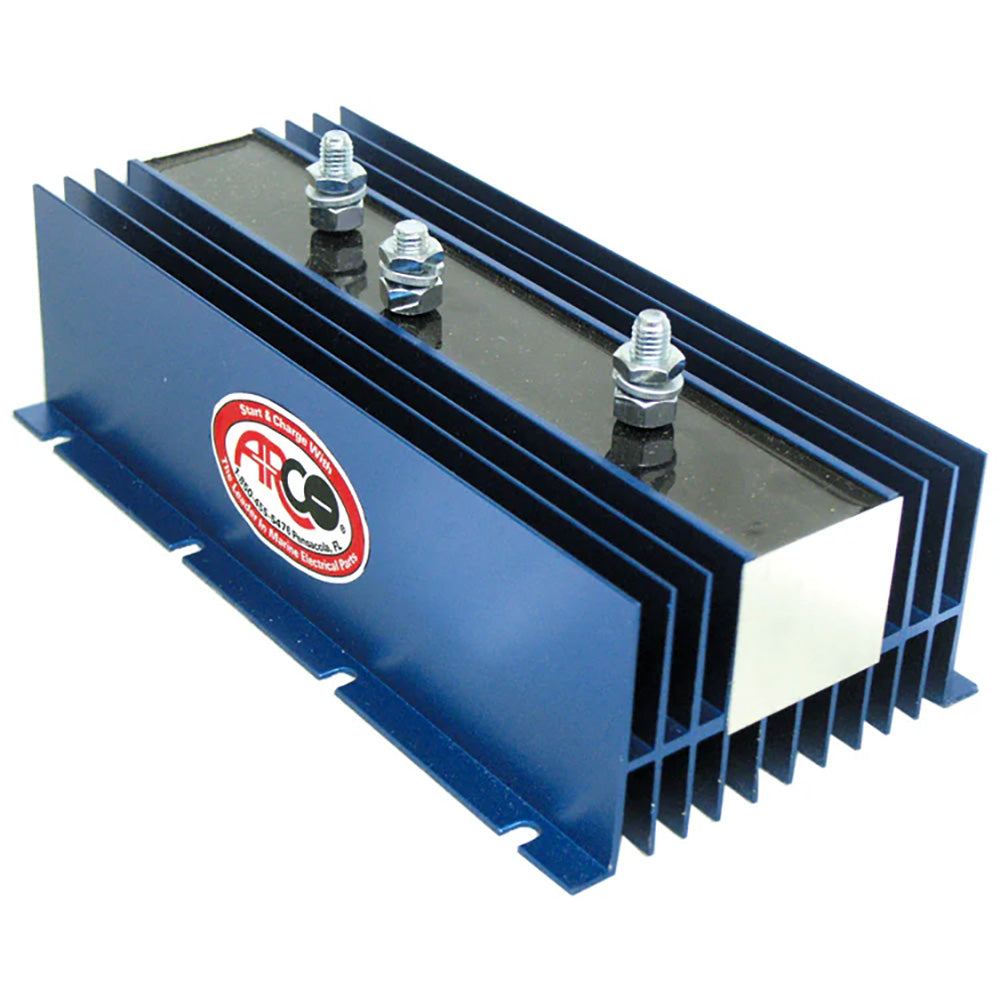

BI-1602 Battery Isolator - 160A - 1 Alternator, 2 Battery
The Arco Marine BI-1602 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 160A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.
Features:
- 1 alternator, 2 batteries, 160A max
- Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
- Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
- When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
- Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.
NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The ARCO Marine BI-1602 Battery Isolator is an essential component for any marine enthusiast looking to efficiently manage their power supply. Designed to handle a single alternator and two batteries, this isolator supports a maximum load of 160A, ensuring reliable performance in both inboard and outboard applications. It is compatible with 12, 24, or 32-volt negative ground systems and works seamlessly with alternators ranging from 10 to 350 amps.
This solid-state device allows electrical current to flow in one direction only, preventing higher-charged batteries from discharging into lower-charged ones. With the ARCO Marine BI-1602, both batteries are charged automatically and proportionally to their needs whenever the engine is running, offering peace of mind and enhanced battery longevity. Additionally, when paired with selector switches, there*s no need to adjust the switch position for charging, providing a hassle-free user experience.
Please note that the ARCO Marine BI-1602 Battery Isolator is not suitable for use with 12-volt charging systems that include 24-volt trolling motors or modern outboard engines equipped with rectifier-regulator charging systems. For any concerns or issues, please contact the manufacturer directly for assistance.
Features:
* Handles 1 alternator and 2 batteries with a maximum load of 160A: Handles 1 alternator and 2 batteries with a maximum load of 160A
* Solid-state design allows current flow in one direction only: Solid-state design allows current flow in one direction only
* Automatically charges both batteries proportionally based on their needs: Automatically charges both batteries proportionally based on their needs
* No need to change switch position when using selector switches: No need to change switch position when using selector switches
* Proportioning of output or charging current to batteries regardless of switch position: Proportioning of output or charging current to batteries regardless of switch position
