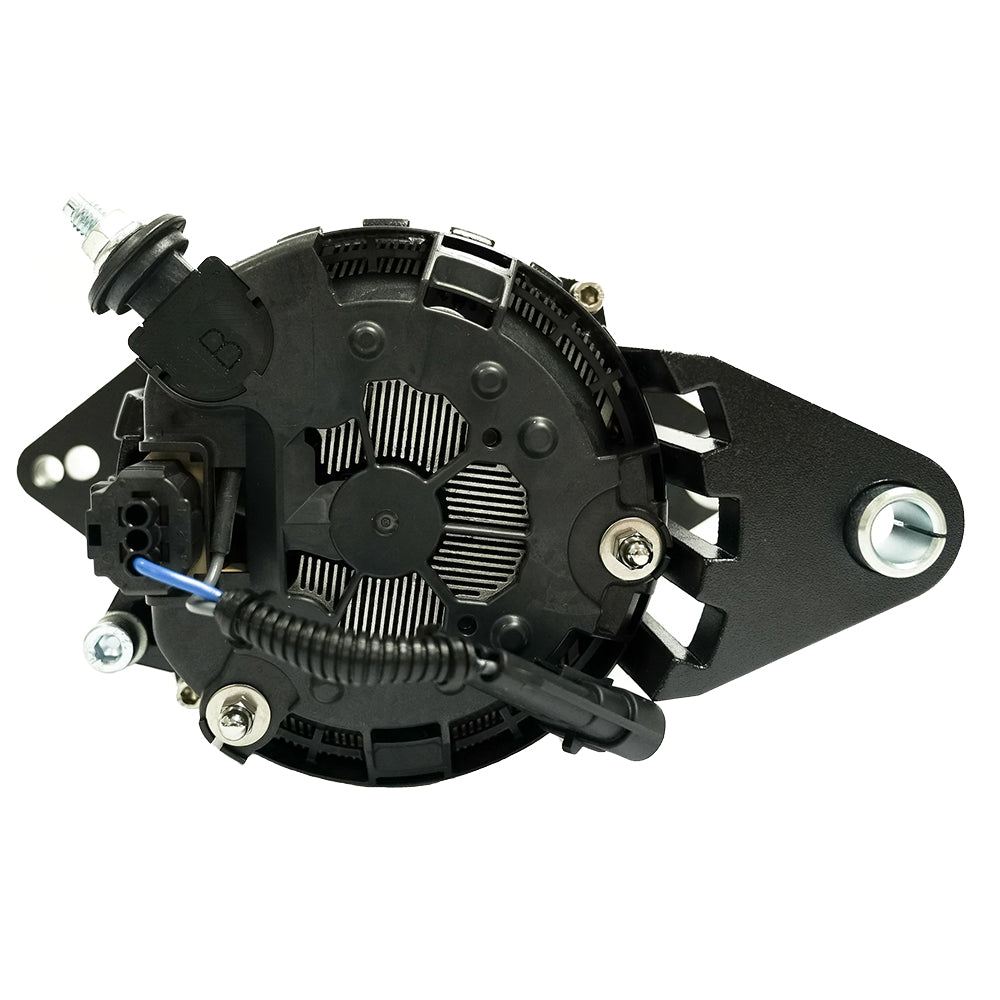

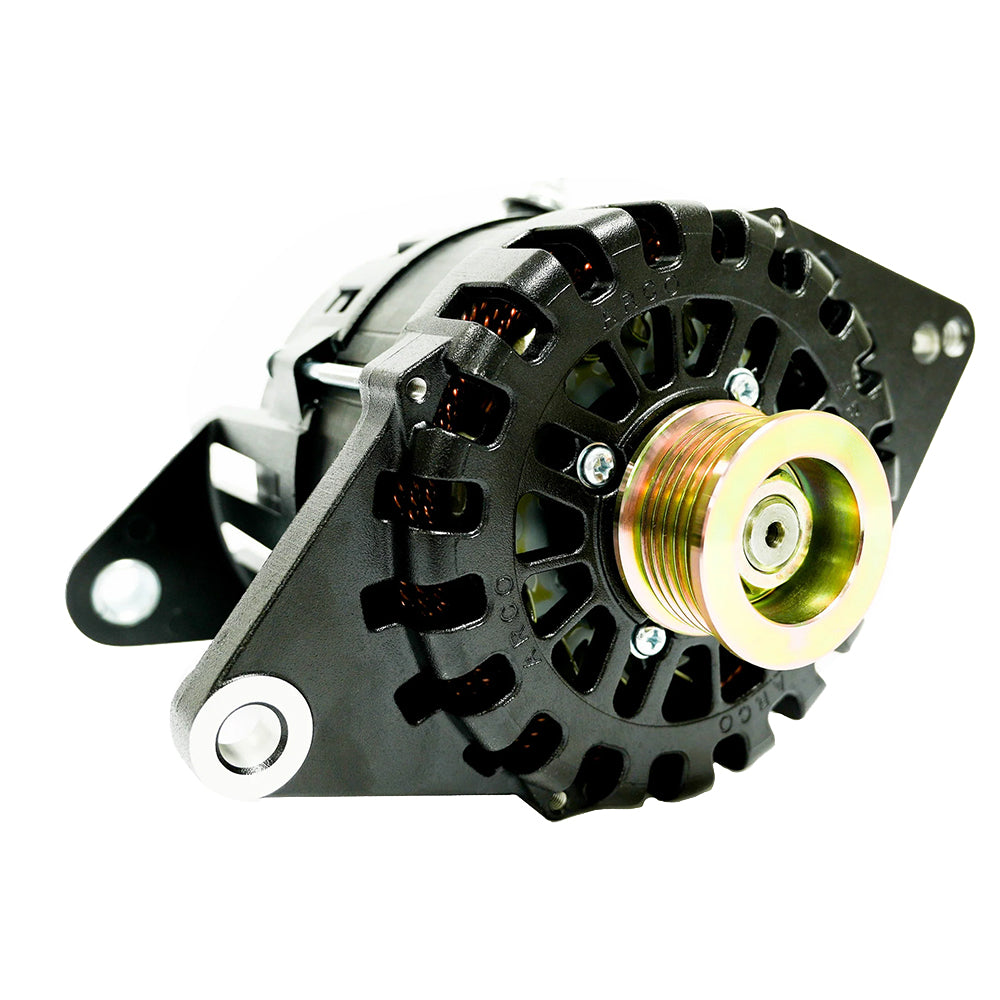

Zeus 24V 7kW J180 4 Alternator with Isolated Ground
The ARCO Zeus 24v 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!
The ARCO Zeus 24v 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.
Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact onthe alternator lifespan.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat shedding coatings
- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 24v
- Field Type - P
- Rotor Poles - 16
- Stator Size - 138mm
- Frame Size - Large
- Weight - 15.89lbs/7.2kg
- Regulation - External Only
- Finish - (Black) E-coating
- Cut-In RPM - 1,962 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts 11.2 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts 8.6kW PTO
- Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts 2kW PTO
- Max Continuous Operating Temperature - 100C / 212F
Mounting Application:
- Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount. Also, used on many larger industrial-based engines.
Introducing the ARCO Marine Zeus 24V 7kW Alternator (Part Number 4503), a powerful solution for your marine, RV, military, or commercial energy needs. This alternator is engineered to produce high amperage efficiently, generating over 3 kW at cruising RPMs and up to 6 kW at higher RPMs, ensuring rapid charging of large battery banks. The innovative design allows for cooler operation, significantly enhancing performance and lifespan compared to older, bulkier models.
The Zeus alternator features a native 24V design that optimizes energy production, reducing the need for a generator while maximizing power output. With dual cooling fans and heat-shedding coatings, this alternator remains cool even under heavy use. Upgrade to the ARCO Zeus to experience peak performance, especially when paired with the ARCO Zeus Bluetooth Alternator Regulator for lithium battery charging capabilities.
Features:
* Engineered for high energy production.: Engineered for high energy production.
* Suitable for marine, RV, military, and commercial applications.: Suitable for marine, RV, military, and commercial applications.
* Rapidly charges large battery banks.: Rapidly charges large battery banks.
* Coolest operating temperatures for increased performance.: Coolest operating temperatures for increased performance.
* Heat shedding coatings enhance efficiency.: Heat shedding coatings enhance efficiency.
* Rectifier located on housing exterior for improved cooling.: Rectifier located on housing exterior for improved cooling.
* Dual cooling fans for superior heat management.: Dual cooling fans for superior heat management.
* Made with OEM components for reliability.: Made with OEM components for reliability.
* Optimized for performance at idle speeds.: Optimized for performance at idle speeds.
* Reduces the need for a generator by creating additional power with your engine.: Reduces the need for a generator by creating additional power with your engine.
* E-Coat/Cerakote finish keeps the unit cooler for sustained amperage output.: E-Coat/Cerakote finish keeps the unit cooler for sustained amperage output.
* SAE J1171 Certified for safety and reliability.: SAE J1171 Certified for safety and reliability.
* Proudly made in the U.S.A.: Proudly made in the U.S.A.
