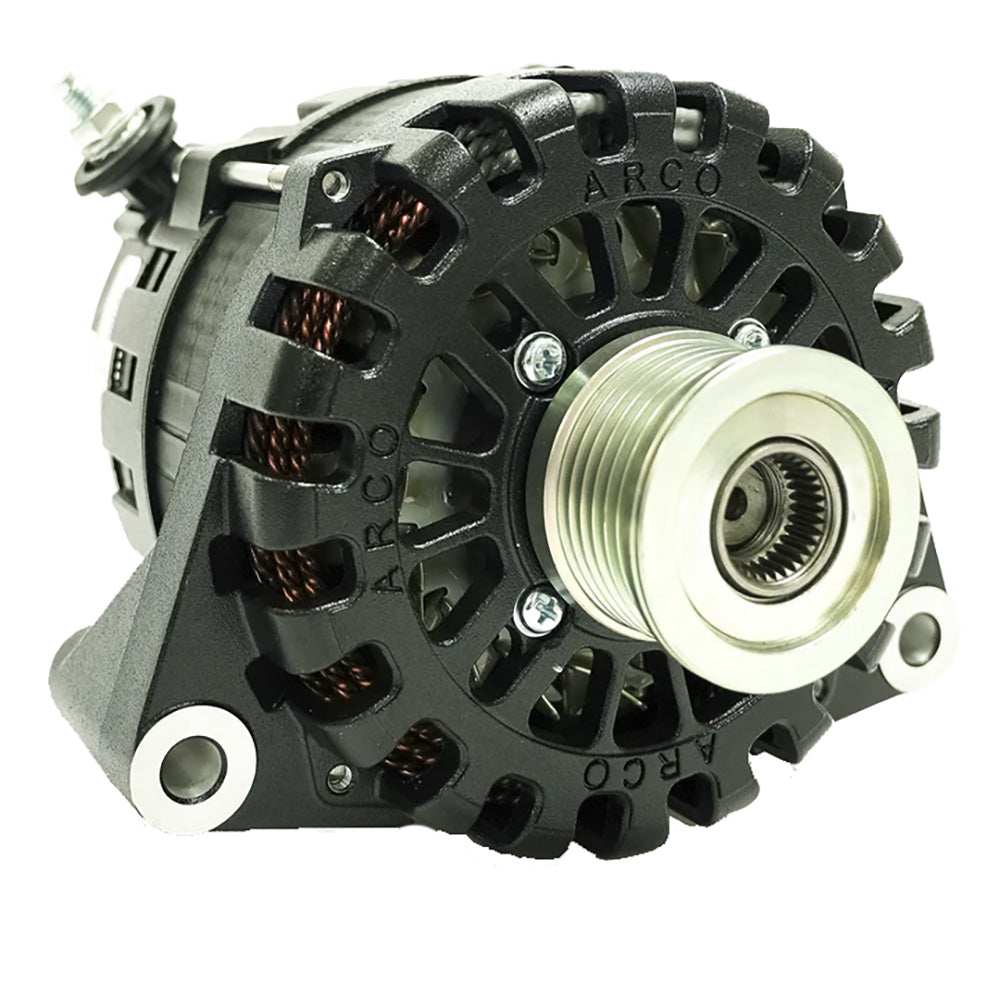

Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley
The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!
Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.
Features:
- Engineered for high energy production.
- Suitable for marine, RV, military, and commercial applications.
- Rapidly charges large battery banks.
- Coolest operating temperatures for increased performance:
- Heat shedding coatings

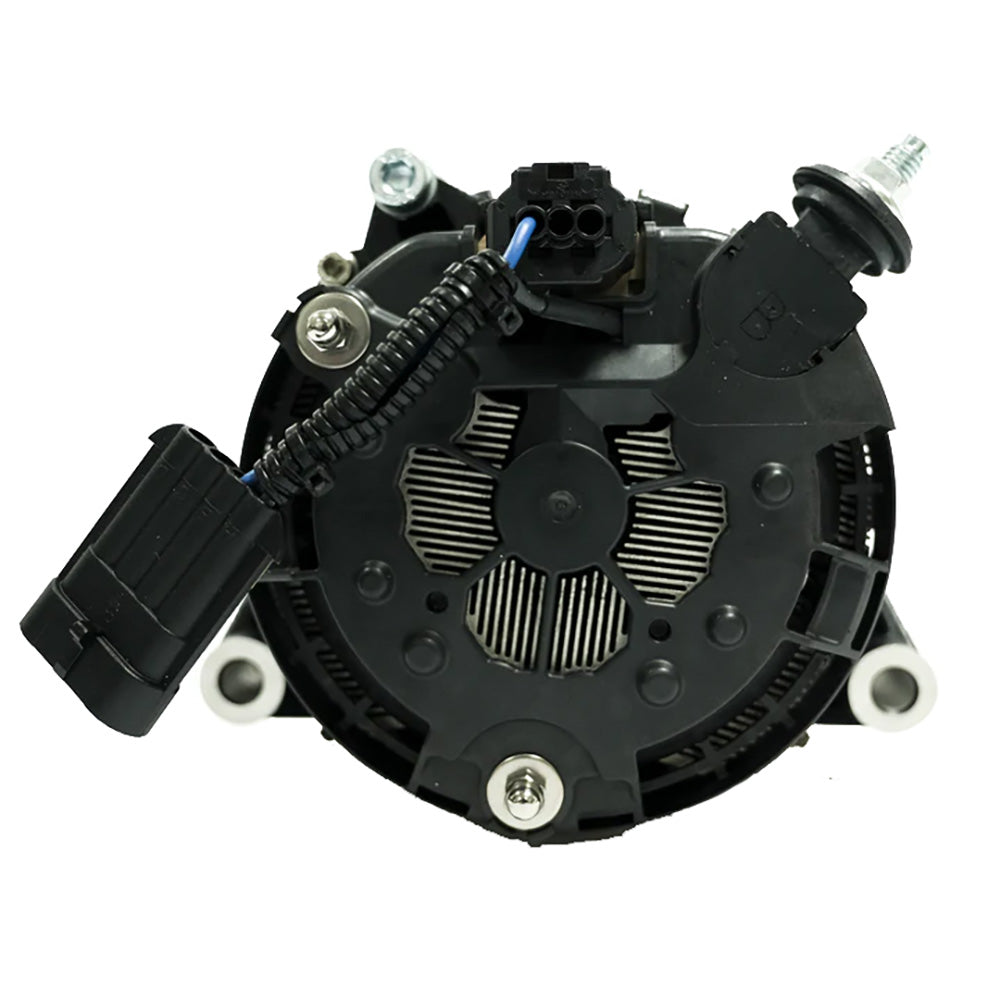

- Rectifier located on housing exterior
- Dual cooling fans
- OEM components
- Optimized for performance at idle speeds.
- Reduces the need for a generator by creating additional power with your engine.
- Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
- Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
- SAE J1171 Certified.
- Proudly made in the U.S.A.
Technical Specifications:
- Voltage - 48v
- Field Type - P

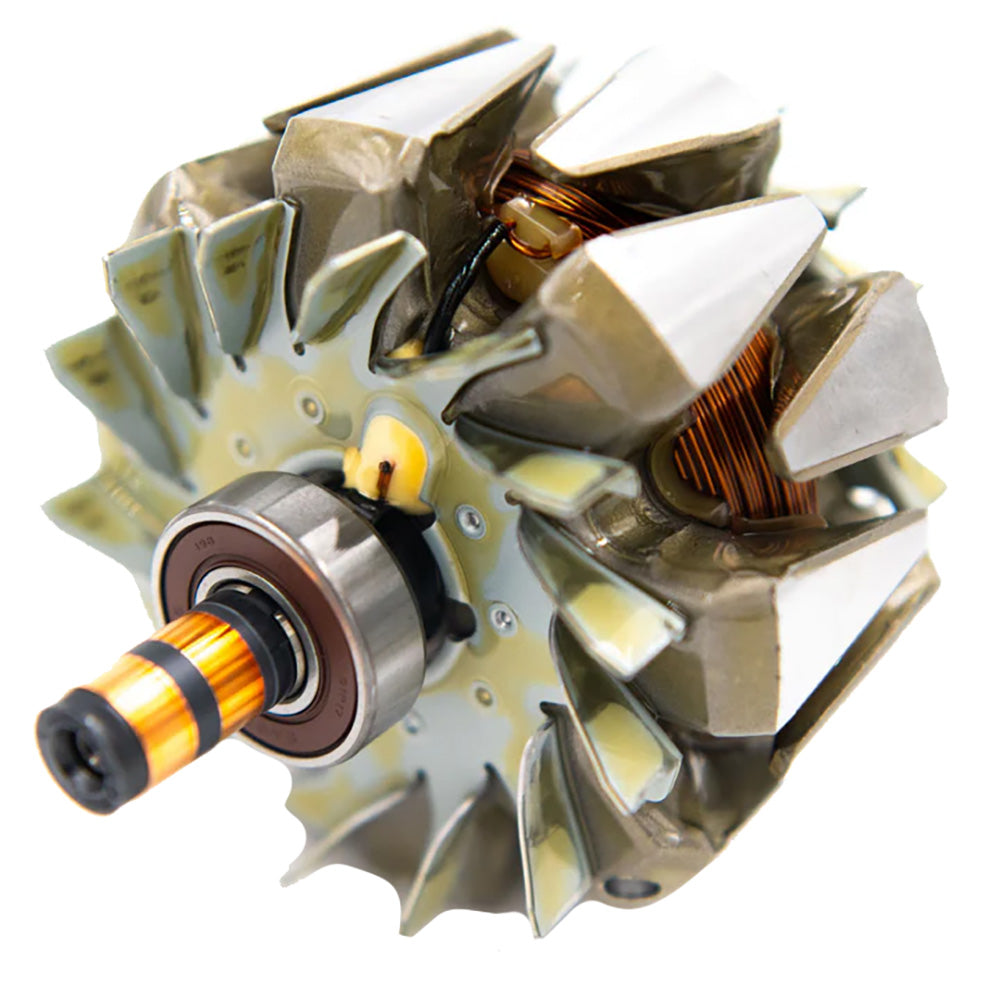

- Rotor Poles - 16

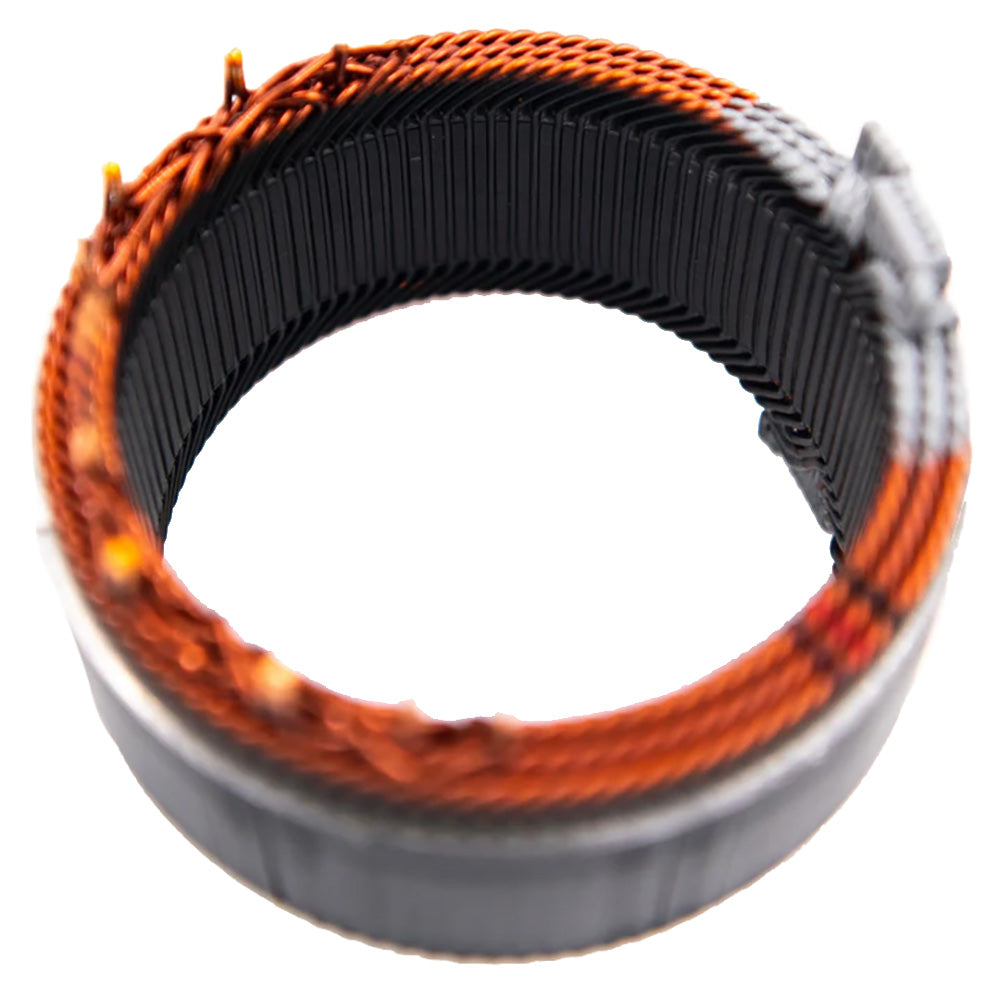

- Stator Size - 138mm
- Frame Size - Large
- Weight - 15.89lbs/7.2kg
- Regulation - External Only
- Finish - (Black) E-coating
- Cut-In RPM - 1,920 Alternator RPM
- Maximum Alt RPM - 19,000
- Battery Post - M8 Thread Post, Side Mount
- Standard Pulley - 49K6 (6-groove, 49mm)
- Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
- Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
- Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
- Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO
- Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO
- Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO
- Max Continuous Operating Temperature - 100C / 212F
Mounting Application:
- Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements.
The ARCO Marine Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley is engineered for optimal performance, providing a compact and efficient power solution for marine, RV, military, and commercial applications. This advanced alternator operates at lower RPMs, producing over 3kW at 2,500 RPM and nearly 6kW at 4,000 RPM, making it an ideal choice for various setups, including Mercedes Sprinter vehicles. Its innovative design ensures that it runs cooler than standard competitors, significantly extending its lifespan while optimizing energy production.
Utilizing a native 48V rotor and field current, the ARCO Zeus alternator avoids inefficiencies commonly found in competitors that repurpose 12V designs. This not only enhances reliability but also reduces the necessity for a generator by providing ample power directly from your engine. Additionally, the alternator features a durable E-Coat/Cerakote finish and is SAE J1171 certified, ensuring it meets high standards for quality and performance. Proudly made in the U.S.A., the ARCO Marine Zeus A8000-48V is the ultimate choice for those seeking robust, reliable power generation.
Features:
* Engineered for high energy production.: Engineered for high energy production.
* Suitable for marine, RV, military, and commercial applications.: Suitable for marine, RV, military, and commercial applications.
* Rapidly charges large battery banks.: Rapidly charges large battery banks.
* Coolest operating temperatures for increased performance.: Coolest operating temperatures for increased performance.
* Heat shedding coatings.: Heat shedding coatings.
* Rectifier located on housing exterior.: Rectifier located on housing exterior.
* Dual cooling fans.: Dual cooling fans.
* OEM components.: OEM components.
* Optimized for performance at idle speeds.: Optimized for performance at idle speeds.
* Reduces the need for a generator by creating additional power with your engine.: Reduces the need for a generator by creating additional power with your engine.
* Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.: Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.
* Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.: Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
* SAE J1171 Certified.: SAE J1171 Certified.
* Proudly made in the U.S.A.: Proudly made in the U.S.A.
