Triple DO 550 Rope Clutch
Modern, high-performance materials. Manufactured from modern lightweight materials, the DO 550 molded parts are from high-grade plastics that are strong, light, and impact-resistant. Cams and bases are from marine grade aluminum, anodized for long life in the harsh marine environment.
True clutch mechanism
This true clutch mechanism allows lines to be adjusted through the unit in the closed, locked position with minimal slippage. Release under load is positive and requires little effort. The mechanisms opening and closing action is precise and easy to operate, even with cold, wet hands. A positive handle lock in the closed position is also featured.
Kind to lines
The clutchs cam and base, manufactured from high grade extruded aluminium, feature a specially tempered tooth design which allows for maximum grip with minimal slippage, whilst being kind to your lines.Stainless steel rope fairleads are fitted to both line entry and exit points; a feature which helps to prevent wear to both clutch and lines.
Bolt-together construction for straightforward servicing
The DO 550 clutch range features the advantage of a bolt together construction which allows for ease of servicing and replacement of parts. A full range of components is available from our Barton stockist.
Important fitting notes: rope clutches
When fitting ensure a fair lead straight through the clutch to prevent wear to side plates and/or reducedload capabilities.For best performance site clutch approximately 1ft (300mm) forward of the winch to ensure a fair leadboth vertically and horizontally.Use Barton deck organisers forward of the clutch to gain perfect alignment.Always use a bolt-through fastening with a suitable sealant.A drilling template is provided on our packaging for your convenience.
Ergonomically designed handle
The handle is strong and easy to grip, with a positive smooth lock and unlock action.A unique feature of this new design is the removable insert on the top face of the handle.These inserts are available packaged separately with a selection for both cruising and racing yachts.

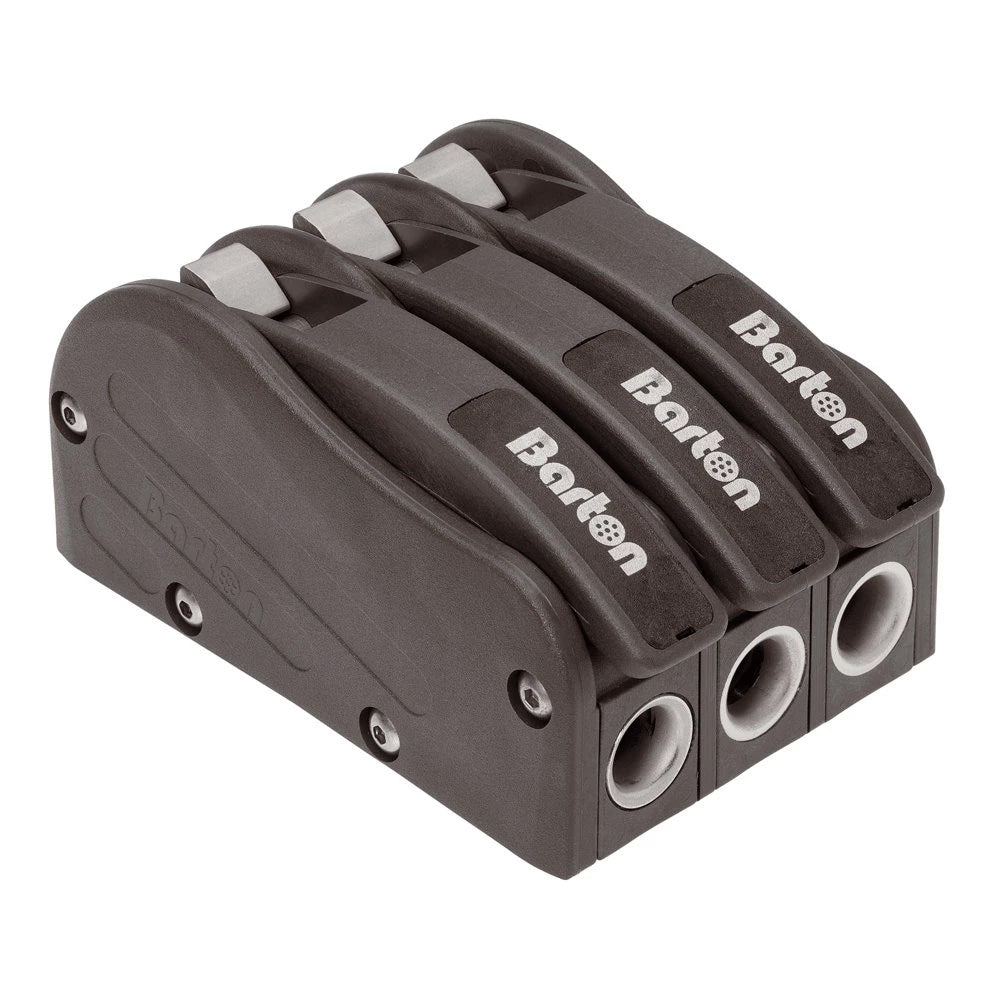

Upgrade your sailing experience with the Barton Marine Triple DO 550 Rope Clutch (Part Number: 81502). This high-performance clutch is engineered using modern lightweight materials, ensuring durability without sacrificing weight. The molded parts are crafted from high-grade plastics, while the cams and bases are made from anodized marine grade aluminum, providing exceptional resistance to harsh marine environments.
The true clutch mechanism allows for effortless line adjustments even under load, with minimal slippage. Designed for ease of use, the clutch operates smoothly, making it ideal for sailors who often handle lines in challenging conditions. With its specially tempered tooth design, the clutch ensures maximum grip while being gentle on your lines, effectively preventing wear and tear. The stainless steel rope fairleads further enhance the longevity of both the clutch and your ropes.
Servicing is a breeze thanks to the bolt-together construction of the DO 550 clutch. This feature allows for straightforward maintenance and part replacements. Additionally, the ergonomically designed handle provides a strong grip, making it easy to lock and unlock. With removable inserts available, you can customize your clutch for either cruising or racing, making the Barton Marine Triple DO 550 Rope Clutch a versatile choice for any sailor.
Features:
* High-performance materials: Lightweight high-grade plastics and marine grade aluminum for durability.: High-performance materials: Lightweight high-grade plastics and marine grade aluminum for durability.
* True clutch mechanism: Allows easy line adjustments in the locked position with minimal slippage.: True clutch mechanism: Allows easy line adjustments in the locked position with minimal slippage.
* Kind to lines: Tempered tooth design provides maximum grip without damaging your ropes.: Kind to lines: Tempered tooth design provides maximum grip without damaging your ropes.
* Stainless steel rope fairleads: Prevents wear to both clutch and lines.: Stainless steel rope fairleads: Prevents wear to both clutch and lines.
* Bolt-together construction: Simplifies servicing and replacement of parts.: Bolt-together construction: Simplifies servicing and replacement of parts.
* Ergonomically designed handle: Strong grip with smooth lock and unlock action.: Ergonomically designed handle: Strong grip with smooth lock and unlock action.
