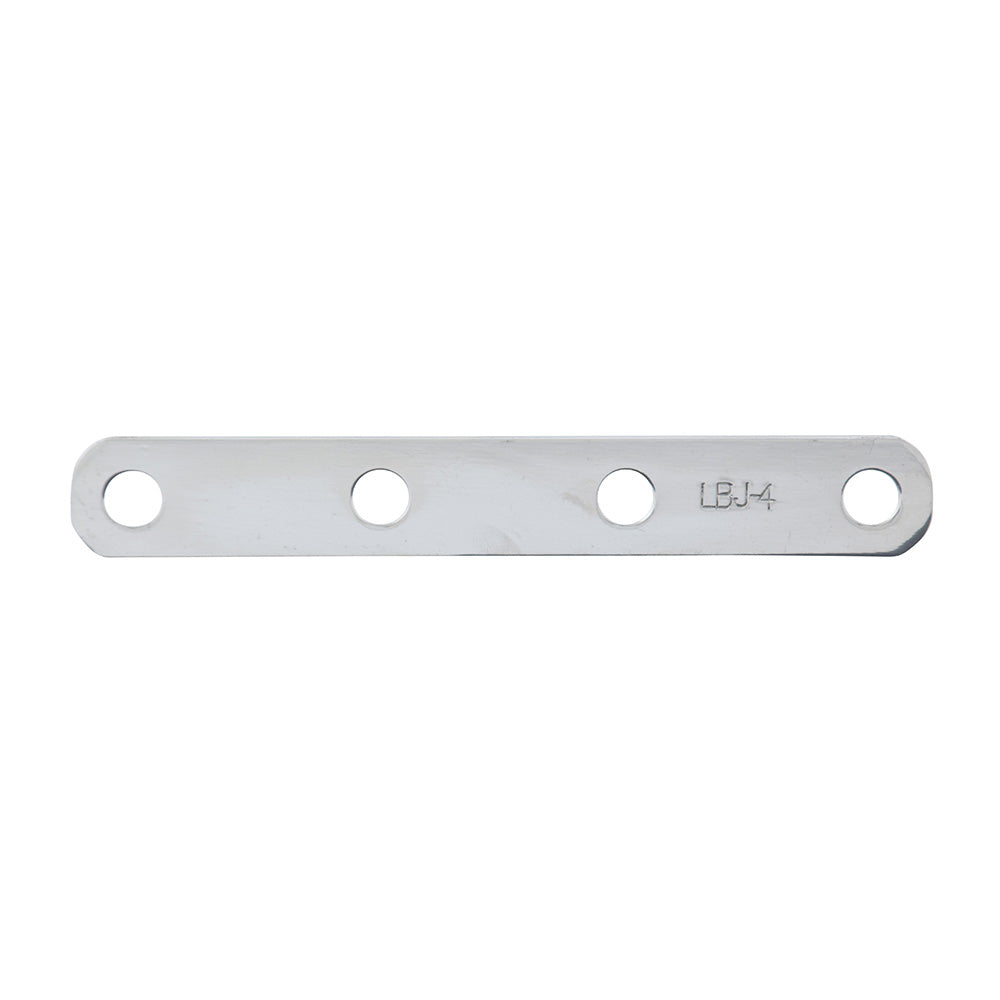

Pro Installer Link Joinder 4-Way
This tin-plated bus bar can be used to link 4 adjacent DC products together. The rating varies from 450-650 Amps depending on how this busbar is wired. Made from tin-plated high-purity copper, this bar is intended for use with the BEP Pro Installer system but it has universal applications anywhere a high amperage link bus is needed. Pro Installer link bars provide the fastest and most economical way of connecting the Pro Installer line of products to save space and allow for the most compact installations. The common interconnection height of Pro Installer components allows link bars to quickly and easily convert a group of different products into a functional cluster. Links can be doubled to accommodate higher loads.
Features:
- Tin-plated high-purity copper for maximum conductivity and corrosion resistance
- 650 AMP continuous rating between two adjacent positions
- 450 AMP continuous rating across all positions
- This link bar is intended to be used with 3/8 studs
- Hole spacing is 2
- Overall dimensions 6.9 x 1
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The BEP Marine 779-LBJ-4 Pro Installer 4-Way Link Bar/Joiner is an essential component for linking up to four adjacent DC products efficiently. Designed with high-purity tin-plated copper, this bus bar ensures maximum conductivity and outstanding corrosion resistance, making it ideal for high-amperage applications. With a continuous rating that varies from 450 to 650 Amps, depending on the configuration, this link bar is versatile enough for various installations.
Whether you're setting up a compact marine system or other electrical configurations, the Pro Installer system allows for quick and easy connections between different products, optimizing both space and functionality. Its common interconnection height facilitates seamless integration, and the option to double links accommodates higher loads when necessary.
Choose the BEP Marine Pro Installer 4-Way Link Bar/Joiner for a reliable and efficient electrical solution, designed specifically to enhance your DC product connections.
Features:
* Tin-plated high-purity copper for maximum conductivity and corrosion resistance: Tin-plated high-purity copper for maximum conductivity and corrosion resistance
* 650 AMP continuous rating between two adjacent positions: 650 AMP continuous rating between two adjacent positions
* 450 AMP continuous rating across all positions: 450 AMP continuous rating across all positions
* Designed for use with 3/8 studs: Designed for use with 3/8 studs
* Hole spacing of 2 inches: Hole spacing of 2 inches
