The Johnson Hyfield-type lever has several very practical features that have been developed after extensive testing on both high-performance multi-hulls and monohulls. The fitting is rugged, having an ultimate strength of 2500 lbs. A positive stop is provided to prevent jamming fingers between the fitting and wire when thrown open under load and the large surface area of the push pad makes it easier to close the lever under load. Lever take-up is 2-1/8 to an over-center position and comes with a quick-release pin for positive locking. The extender arm may be had in either 1/4 or 5/16 pin size. This is an essential piece of hardware on Catamaran shrouds to allow the crew to right the boat after a capsize. Without it, another boat or extraordinary effort is required. Trailer-able boats up to 26 feet find that a lever on the forestay greatly facilitates stepping and unstepping the mast.
Specifications:
Approximate breaking strength = 2,500lbs
Safe working load = 1000lbs
Extender number of holes = 3

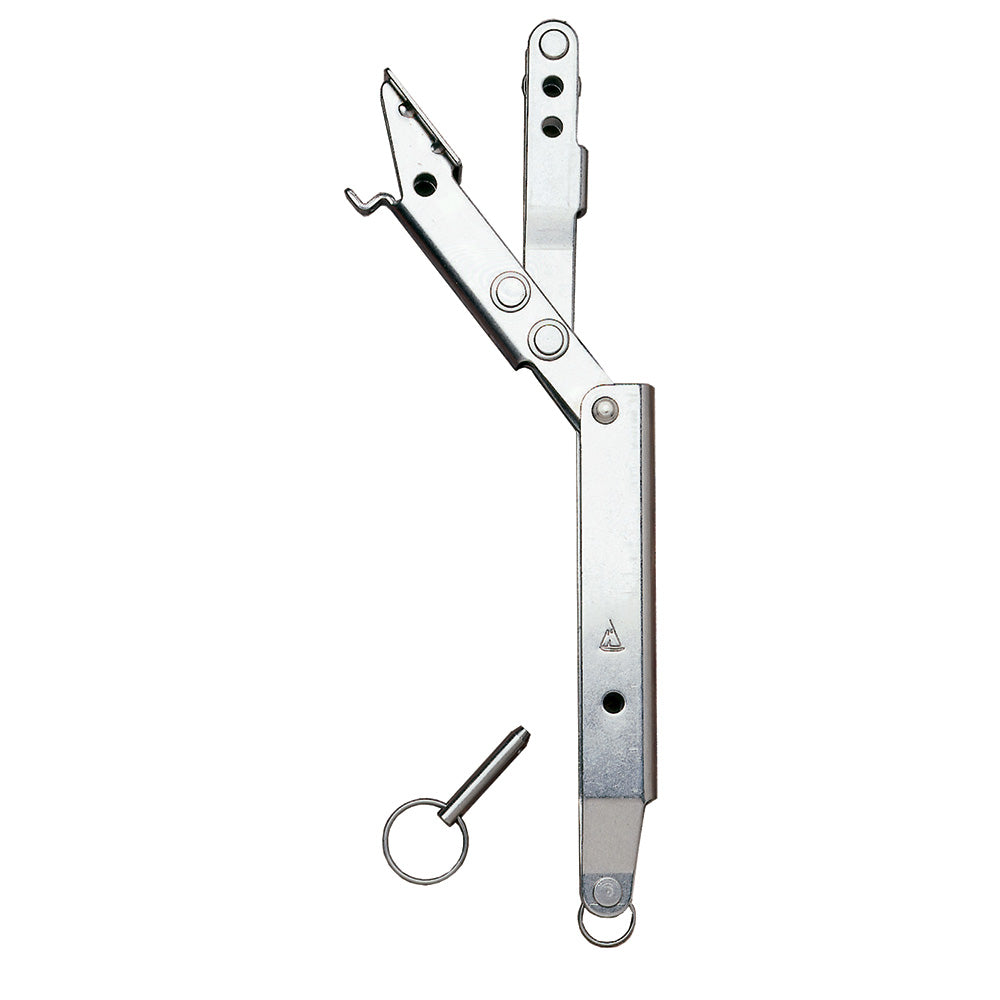

The C. Sherman Johnson Quick Release Lever (Part Number: 14-206) is a highly durable and practical solution for your sailing needs. Designed for both high-performance multi-hulls and monohulls, this lever boasts a robust construction with an ultimate strength of 2,500 lbs. The ergonomic design features a positive stop that prevents finger jam during operation, ensuring safety and ease of use under load. With its large push pad surface area, closing the lever becomes effortless, even in challenging conditions.
This quick-release lever is an essential piece of hardware for Catamaran shrouds, allowing crews to right the boat after a capsize with minimal effort. It is also a valuable addition for trailer-able boats up to 26 feet, significantly simplifying the mast stepping and unstepping process. The lever features a quick-release pin for secure locking and is compatible with either 1/4 or 5/16 pin sizes, making it versatile for various applications.
Features: * Ultimate strength of 2,500 lbs for reliable performance: Ultimate strength of 2,500 lbs for reliable performance
* Positive stop to prevent finger jamming during use: Positive stop to prevent finger jamming during use
* Large surface area push pad for easier operation under load: Large surface area push pad for easier operation under load
* Quick-release pin for secure locking: Quick-release pin for secure locking
* Essential for Catamaran shrouds and trailer-able boats up to 26 feet: Essential for Catamaran shrouds and trailer-able boats up to 26 feet
