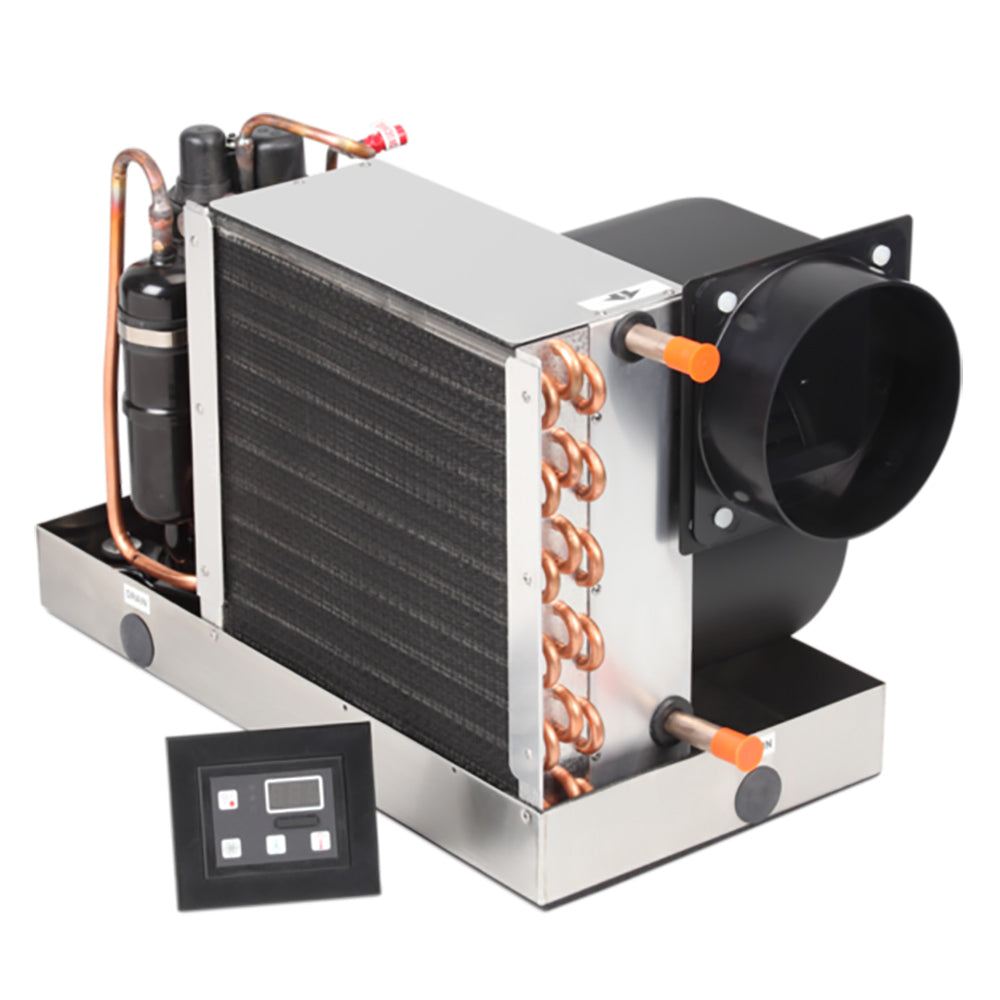

Dometic EnviroComfort ECD6K-HV AC Retrofit Kit – 115V, 6,000 BTU | Marine Air Conditioner with Reverse Cycle Heating & Cooling

Stay cool in the summer and warm in the winter with the Dometic EnviroComfort ECD6K-HV 6,000 BTU Marine Air Conditioning Retrofit Kit. Engineered for marine comfort, this reverse-cycle AC unit is ideal for replacing older systems or installing a new compact HVAC solution aboard your vessel.

Designed for boats requiring 5,000–7,000 BTU systems, this 115V unit offers reliable performance and easy installation. The high-velocity blower, which can be rotated horizontally or vertically, allows for flexible mounting even in tight spaces. Built on a durable stainless-steel drain pan with a pre-installed and cleanable return-air filter, it ensures longevity and minimal maintenance.

This ECD kit includes everything you need: the self-contained AC unit, a digital Passport I/O control with bezel and 15' cable, and a user-friendly instruction manual. The compact size and environmentally friendly R-410A refrigerant make it a smart, future-ready choice.

Key Features:

• 6,000 BTU cooling and heating capacity (reverse-cycle)

• 115V / 50-60 Hz input voltage

• High-velocity, rotatable blower for flexible installation

• Stainless steel drain pan with easy plumbing

• Compact design ideal for tight marine spaces

• Digital Passport I/O Control (P/N 9600005997) included

• Environmentally friendly R-410A refrigerant

• Plastic remote electrical box for convenient mounting

• Pre-installed return-air filter, removable for cleaning

Specifications:

• Cooling Capacity: 6,000 BTU

• Voltage: 115V

• Starting Amps: 36A

• Fuse Max / Min: 20A / 12A

• Refrigerant Type: R-410A

• Input Frequency: 50/60 Hz

• Minimum Duct Size: 4"

• Seawater Inlet Connection: 5/8" (0.625")

• Unit Dimensions: H 11.25" x W 16" x D 9"

What’s in the Box:

• Self-Contained AC Unit

• Digital Control with Bezel and 15' Cable

• Instruction Manual

Cross-SKU Recommendations – Build the Perfect Climate System:

• Need a higher capacity? Consider the Dometic ECD10K-HV Retrofit Kit – 10,000 BTU for larger vessels.

• Looking for 230V compatibility? Check out the Dometic ECD6K-HV 230V Marine AC Kit.

• Add the Dometic Smart Touch Control Upgrade Kit for advanced thermostat integration.

• Pair it with a Dometic Seawater Circulation Pump Kit for optimal cooling efficiency.
