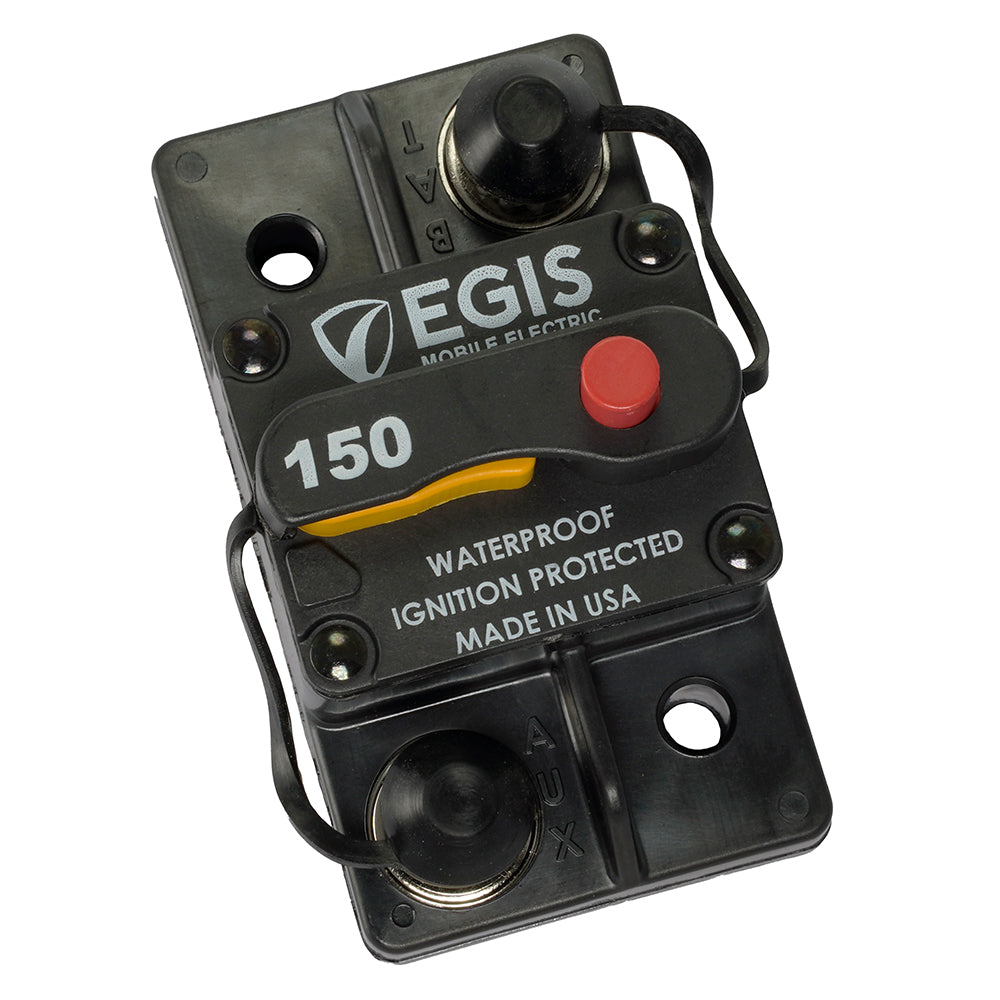

150A Surface Mount Circuit Breaker - 285 Series
This 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its products ability to meet the users needs
Specifications:
- Continuous Current Amps: 150
- Max Voltage: 48
- Cycling Endurance: 100
- Interrupt Current @16 VDC (Amps): 5,000
- Interrupt Current @28 VDC (Amps): 3,000
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.
The Egis Mobile Electric 150A Surface Mount Circuit Breaker (Part Number 4703-150) is designed to provide robust protection for electrical circuits against short circuits and over-current conditions. This essential device helps prevent the overheating of wire insulation, ensuring the longevity and safety of your electrical systems. With its dual functionality of automatic circuit protection and manual on/off switching, this compact breaker is perfect for various applications, particularly in battery systems where reliable circuit isolation is crucial.
Engineered for durability, the Egis 150A Circuit Breaker features high voltage ratings, making it suitable for 12, 24, 36, and 48 VDC applications. Its sealed design guarantees protection against dust and water intrusion, ensuring reliable performance in demanding environments. Additionally, the breaker is built to withstand up to 6,000 cycles at full current, providing high endurance for your electrical needs. Backed by a 4-year warranty, Egis stands behind its commitment to quality and reliability.
Features:
* Sealed against dust and water intrusion for reliable circuit protection: Sealed against dust and water intrusion for reliable circuit protection
* High Voltage (48 Vdc) Rating supports various DC applications: High Voltage (48 Vdc) Rating supports various DC applications
* High Electrical / Manual Switching Endurance with 6,000 cycles at full current: High Electrical / Manual Switching Endurance with 6,000 cycles at full current
* High Interrupt Current capability for circuits connected to large battery banks: High Interrupt Current capability for circuits connected to large battery banks
* 4-Year Warranty ensuring product reliability and customer satisfaction: 4-Year Warranty ensuring product reliability and customer satisfaction
