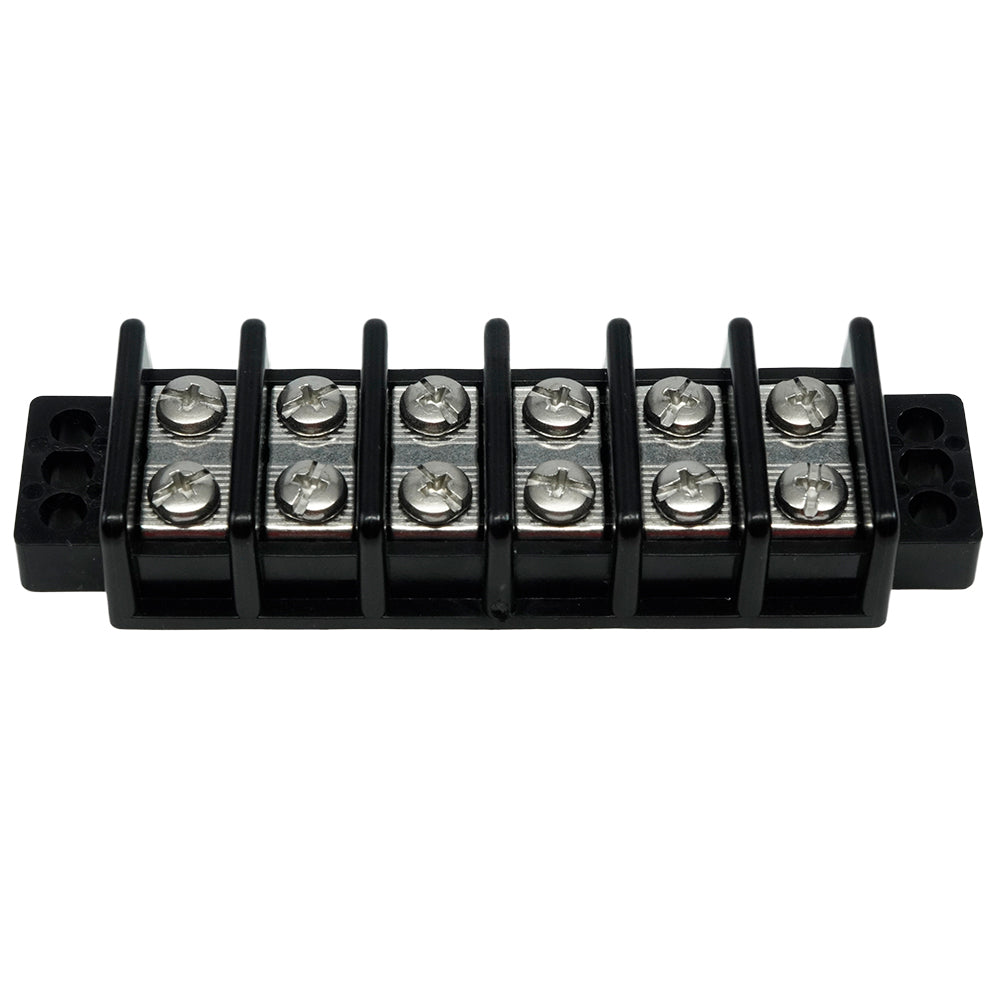

Terminal Block - 30 Amp - 6 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes
The Egis Mobile Electric 2230-06 Terminal Block is your reliable solution for electrical connections in demanding environments. Designed to handle up to 30 amps, this 6-circuit terminal block is perfect for both marine and industrial applications. Its robust construction features marine-grade materials, ensuring durability and performance even in harsh conditions.
This terminal block is equipped with screw terminal connection pairs, providing a secure and effective way to connect wires. Each pair includes one input and one output screw connected to separate copper alloy bus bars, making it easy to manage multiple circuits. It supports a wide range of voltage systems, from 12 to 48 Vdc, as well as 120/240 Vac applications, making it versatile for various setups.
With features like anti-rotation ribs to minimize wire terminal rotation and high insulation walls for added protection, the Egis 2230-06 Terminal Block is built to withstand the rigors of any project. Plus, with a 4-year warranty, you can trust in the quality and reliability of your electrical connections.
Features:
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* Marine-grade materials ensure long-lasting reliability in harsh environment applications with tin-plated copper alloy conductors and stainless steel hardware.: Marine-grade materials ensure long-lasting reliability in harsh environment applications with tin-plated copper alloy conductors and stainless steel hardware.
* 125 Volt AC or DC rated, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: 125 Volt AC or DC rated, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Constructed with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware for durability.: Constructed with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware for durability.
* 4-Year Warranty ensures the product meets your needs and expectations.: 4-Year Warranty ensures the product meets your needs and expectations.
