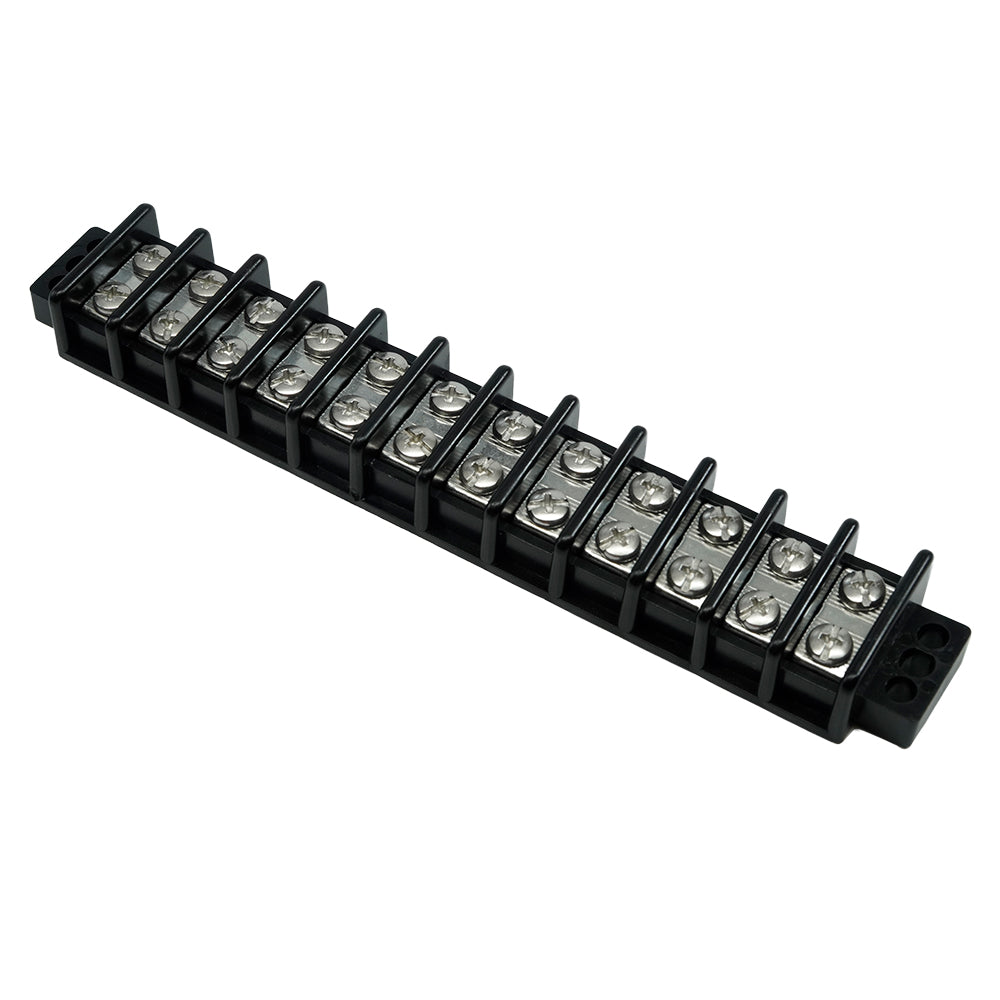

Terminal Block - 30 Amp - 12 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 30
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes
The Egis Mobile Electric 2230-12 Terminal Block offers a robust solution for reliable electrical connections in demanding environments. Designed to accommodate 30 amps, this 12 circuit terminal block is constructed from marine-grade materials, ensuring long-lasting performance even in harsh conditions. With its screw terminal connection pairs, each input and output is securely connected to separate copper alloy bus bars for optimal conductivity and safety.
This terminal block is rated for 125 Volt AC or DC, and it can easily support various voltage systems including 12, 24, 36, and 48 Vdc, as well as 120/240 Vac applications. Safety features such as high insulation walls protect against short circuits, while anti-rotation ribs on conductor strips minimize the risk of wire rotation under strain. Backed by a 4-year warranty, the Egis 2230-12 is engineered for reliability and peace of mind in all your electrical needs.
Features:
* Screw terminal connection pairs provide secure input and output connections to separate copper alloy bus bars.: Screw terminal connection pairs provide secure input and output connections to separate copper alloy bus bars.
* Marine-grade construction ensures durability and reliability in harsh environments with tin-plated copper alloy conductors and stainless steel hardware.: Marine-grade construction ensures durability and reliability in harsh environments with tin-plated copper alloy conductors and stainless steel hardware.
* Rated for 125 Volt AC or DC, compatible with 12, 24, 36, and 48 Vdc systems, and 120/240 Vac applications.: Rated for 125 Volt AC or DC, compatible with 12, 24, 36, and 48 Vdc systems, and 120/240 Vac applications.
* Anti-rotation ribs on conductor strips help prevent wire terminal rotation under strain.: Anti-rotation ribs on conductor strips help prevent wire terminal rotation under strain.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Constructed with high-temperature insulation materials and robust hardware for bullet-proof reliability.: Constructed with high-temperature insulation materials and robust hardware for bullet-proof reliability.
* Comes with a 4-year warranty, demonstrating the commitment to quality and customer satisfaction.: Comes with a 4-year warranty, demonstrating the commitment to quality and customer satisfaction.
