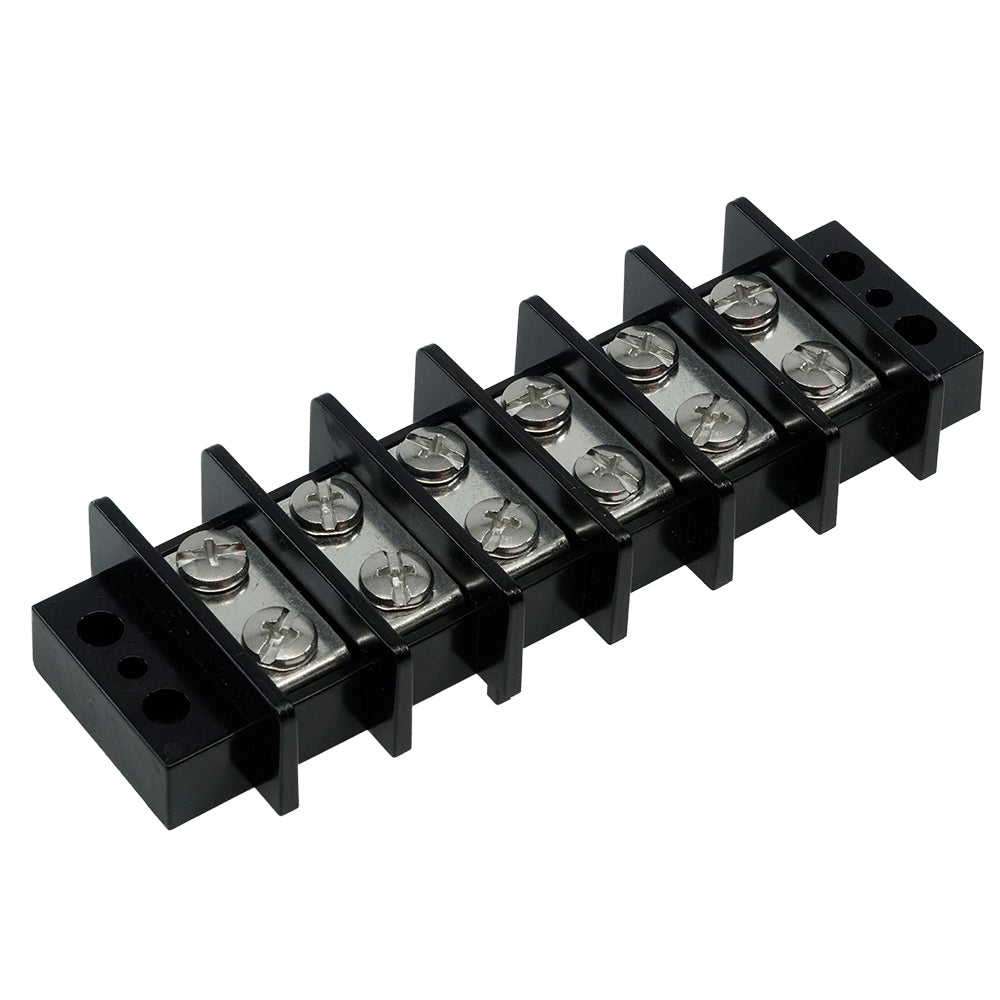

Terminal Block - 30 Amp - 6 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 65
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes
The Egis Mobile Electric 2265-06 Terminal Block is a robust solution designed specifically for demanding applications. With a 30 Amp capacity and 6 circuit connections, this terminal block is built using marine-grade materials, ensuring long-lasting reliability even in harsh environments. Engineered for versatility, it easily supports both AC and DC systems up to 125 volts, making it ideal for a variety of setups including 12, 24, 36, and 48 Vdc configurations, as well as 120/240 Vac applications.
Features of this terminal block include screw terminal connection pairs that provide secure input and output connections through separate copper alloy bus bars. The anti-rotation ribs on conductor strips minimize the risk of wire terminal rotation, enhancing the overall durability of your installation. Additionally, the high insulation walls protect against short circuits, ensuring safe and reliable operation. With a 4-year warranty, the Egis Mobile Electric 2265-06 Terminal Block is a dependable choice for your electrical needs.
Features:
* Marine-grade materials ensure long-lasting reliability in harsh environment applications.: Marine-grade materials ensure long-lasting reliability in harsh environment applications.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* Easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: Easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.: Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
* 4-year warranty ensures the product meets your needs.: 4-year warranty ensures the product meets your needs.
