Terminal Block - 65 Amp - 8 Circuit
- Marine-grade materials ensure long-lasting reliability in harsh environment applications
- Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
- 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
- Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
- Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
- 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
- Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
- Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
- Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
- 4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
- Continuous Current (Amps): 65
- Max Voltage (Vac/Vdc): 250
- Dielectric Strength: 2000Vac
- Hardware Material: Stainless Steel
- CE Marked: Yes
- ROHS Compliant: Yes

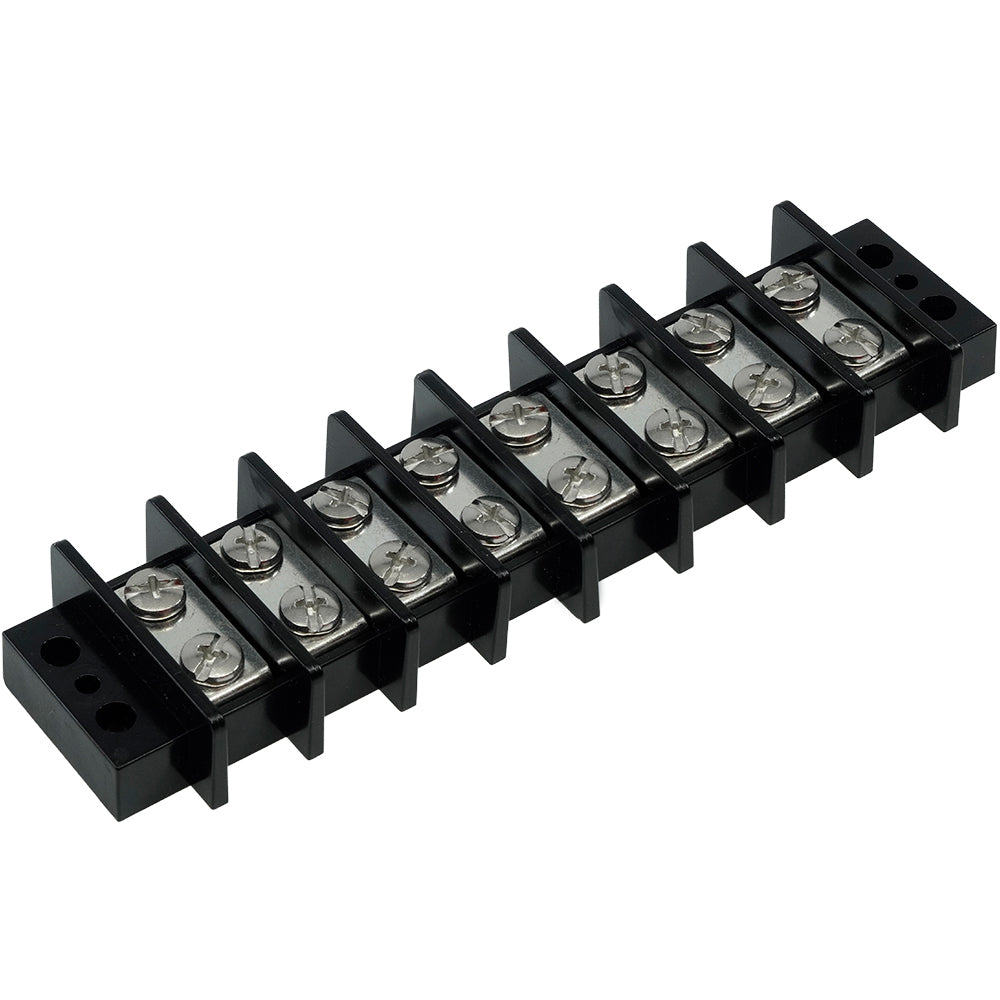

The Egis Mobile Electric 2265-08 Terminal Block is engineered for high-performance applications with a robust 65 Amp capacity across 8 circuits. Crafted from marine-grade materials, this terminal block is built to withstand harsh environments, making it an ideal choice for marine and industrial use. The design features screw terminal connection pairs, ensuring a secure and efficient connection to separate copper alloy bus bars for reliable power distribution.
This terminal block supports a versatile range of voltage systems, accommodating 12, 24, 36, and 48 Vdc configurations, as well as 120/240 Vac applications. Its bullet-proof construction includes high-temperature insulation and tin-plated copper alloy conductors, ensuring durability and longevity. With anti-rotation ribs on conductor strips, it minimizes the risk of wire terminal rotation, providing peace of mind in demanding settings. Plus, the high insulation walls protect against short circuits, making this terminal block a safe and dependable choice for your electrical needs.
Features:
* Marine-grade materials ensure long-lasting reliability in harsh environment applications.: Marine-grade materials ensure long-lasting reliability in harsh environment applications.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* Supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: Supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Constructed with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.: Constructed with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
* Backed by a 4-year warranty, ensuring reliability and performance.: Backed by a 4-year warranty, ensuring reliability and performance.
