Marine-grade materials ensure long-lasting reliability in harsh environment applications
Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications
Features:
Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 65
Max Voltage (Vac/Vdc): 250
Dielectric Strength: 2000Vac
Hardware Material: Stainless Steel
CE Marked: Yes
ROHS Compliant: Yes

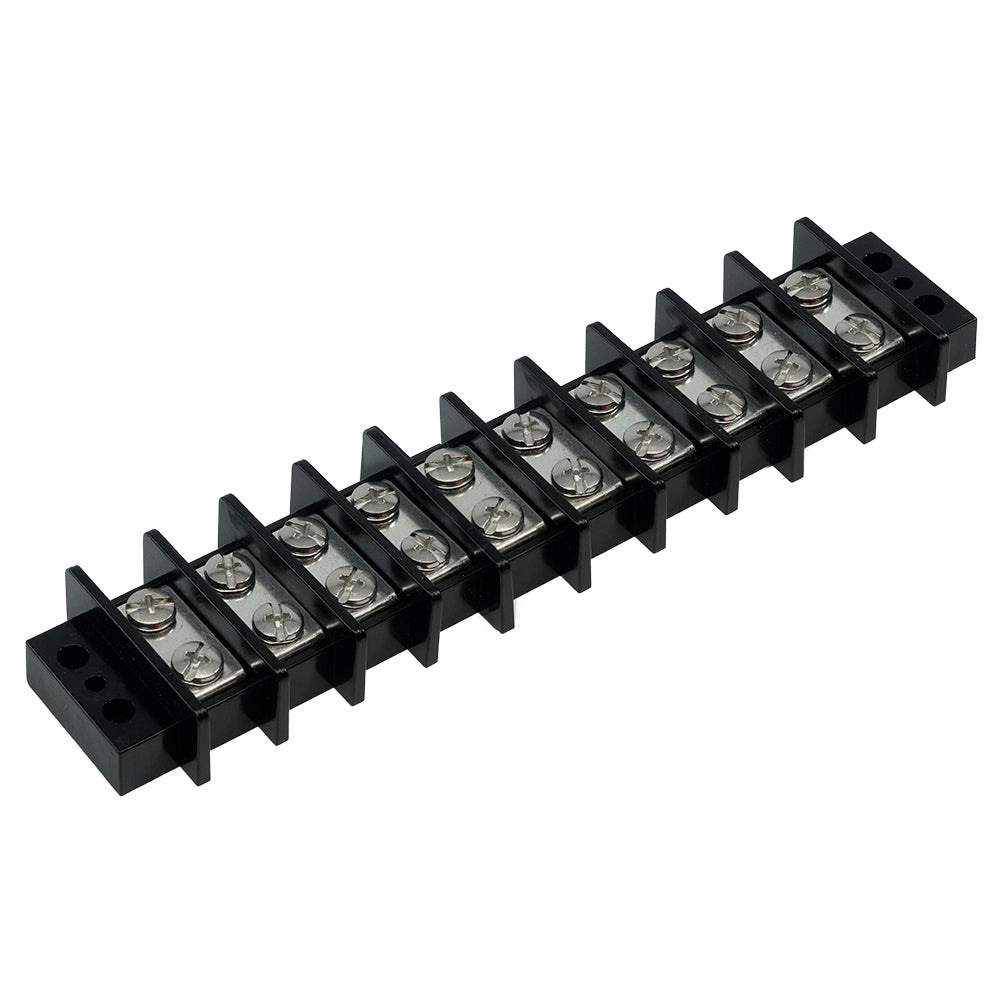

The Egis Mobile Electric 2265-10 Terminal Block is designed to deliver exceptional performance and reliability for your electrical needs. This 65 Amp, 10 Circuit terminal block is constructed with marine-grade materials, ensuring it can withstand harsh environments while maintaining long-lasting durability. Whether you're working with 12, 24, 36, or 48 Vdc systems or 120/240 Vac applications, this terminal block is ready to support your projects with ease.
Featuring screw terminal connection pairs, the Egis 2265-10 provides one input and one output screw connected to separate copper alloy bus bars for each matching connection. This not only simplifies your wiring but also enhances safety by preventing accidental shorting between circuits with its high insulation walls. The anti-rotation ribs on the conductor strips help to maintain wire integrity, ensuring a secure and reliable connection even under strain. With a robust construction that includes stainless steel hardware and high-temperature insulation materials, this terminal block is built to last, backed by a 4-year warranty to meet your needs.
Features: * Marine-grade materials ensure long-lasting reliability in harsh environment applications.: Marine-grade materials ensure long-lasting reliability in harsh environment applications.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* Rated for 125 Volt AC or DC, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: Rated for 125 Volt AC or DC, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Constructed with high-temperature insulation material and stainless steel hardware for bullet-proof durability.: Constructed with high-temperature insulation material and stainless steel hardware for bullet-proof durability.
* 4-Year warranty ensures product reliability and customer satisfaction.: 4-Year warranty ensures product reliability and customer satisfaction.
