25A Surface Mount Circuit Breaker - 285 Series
This 25A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
Applications:
- Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
- High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
- High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-Year Warranty - Egis stands behind its products ability to meet the users needs
Specifications:
- Continuous Current Amps: 25
- Max Voltage: 48
- Cycling Endurance: 100
- Interrupt Current @16 VDC (Amps): 3,000
- Interrupt Current @28 VDC (Amps): 1,500
- Ingress Protection Rating: IP67
Focal Features:
ON/OFF High Visibility Controls
Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.
Integrated Terminal Insulators
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Stainless Steel Hardware / Serrated Flange Nuts
Corrosion and vibration resistance for harsh environment applications.
Proudly Made in the USA
Made in the USA of high-quality components.

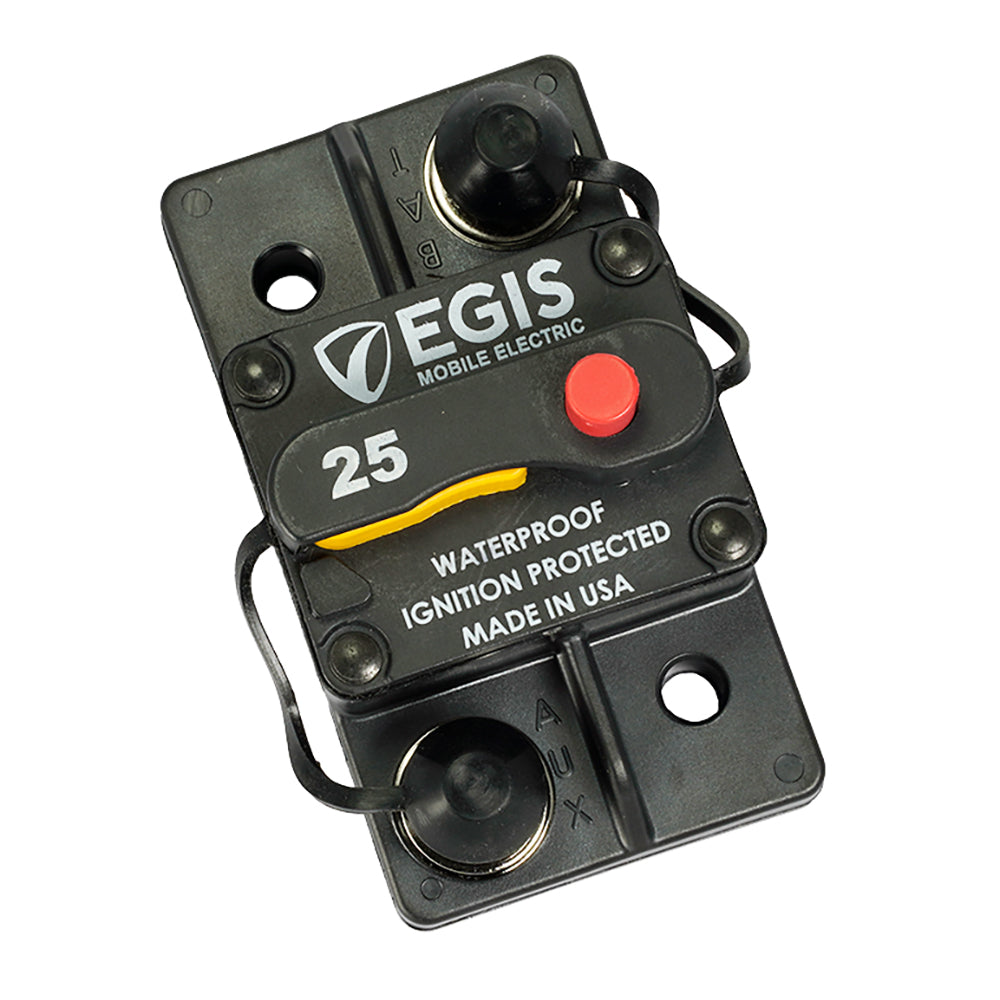

The Egis Mobile Electric 25A Surface Mount Circuit Breaker, part number 4703-025 from the 285 Series, is designed to offer superior protection for your electrical circuits. This robust circuit breaker prevents damage from short-circuit events and over-current loads, ensuring that your wiring remains safe from overheating and destruction. Perfect for a variety of applications, it combines automatic circuit protection with manual on/off switching for ultimate reliability.
This circuit breaker is ideal for those requiring circuit isolation and maintenance of load circuits. Its design allows for convenient switching and integral circuit protection, making it an excellent choice for installation alongside battery systems in any location. The sealed enclosure ensures durability against dust and water intrusion, providing reliable performance throughout the life of your electrical system.
With a high voltage rating suitable for 12, 24, 36, and 48 VDC applications, the Egis 25A Circuit Breaker delivers high electrical endurance, supporting up to 6,000 cycles at full current. Built with stainless steel hardware and serrated flange nuts, it offers corrosion and vibration resistance, making it perfect for harsh environments. Enjoy peace of mind with a 4-year warranty, as Egis stands firmly behind their products.
Features:
* Feature: Sealed against dust and water intrusion for reliable circuit protection
* Feature: High Voltage (48 Vdc) Rating supports various DC applications
* Feature: High Electrical / Manual Switching Endurance with 6,000 cycles at full current
* Feature: High Interrupt Current for safe circuit protection connected to large battery banks
* Feature: 4-Year Warranty ensuring product reliability and customer satisfaction
