Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.
Specifications:
Total Continuous Current Amps: 500
Max MIDIAMI Fuse Value (Amps): 200
Ingress Protection Rating: IP67
Ignition Protected (SEA J1171) Yes
Output Stud Size: M6
Input Stud Size: M8

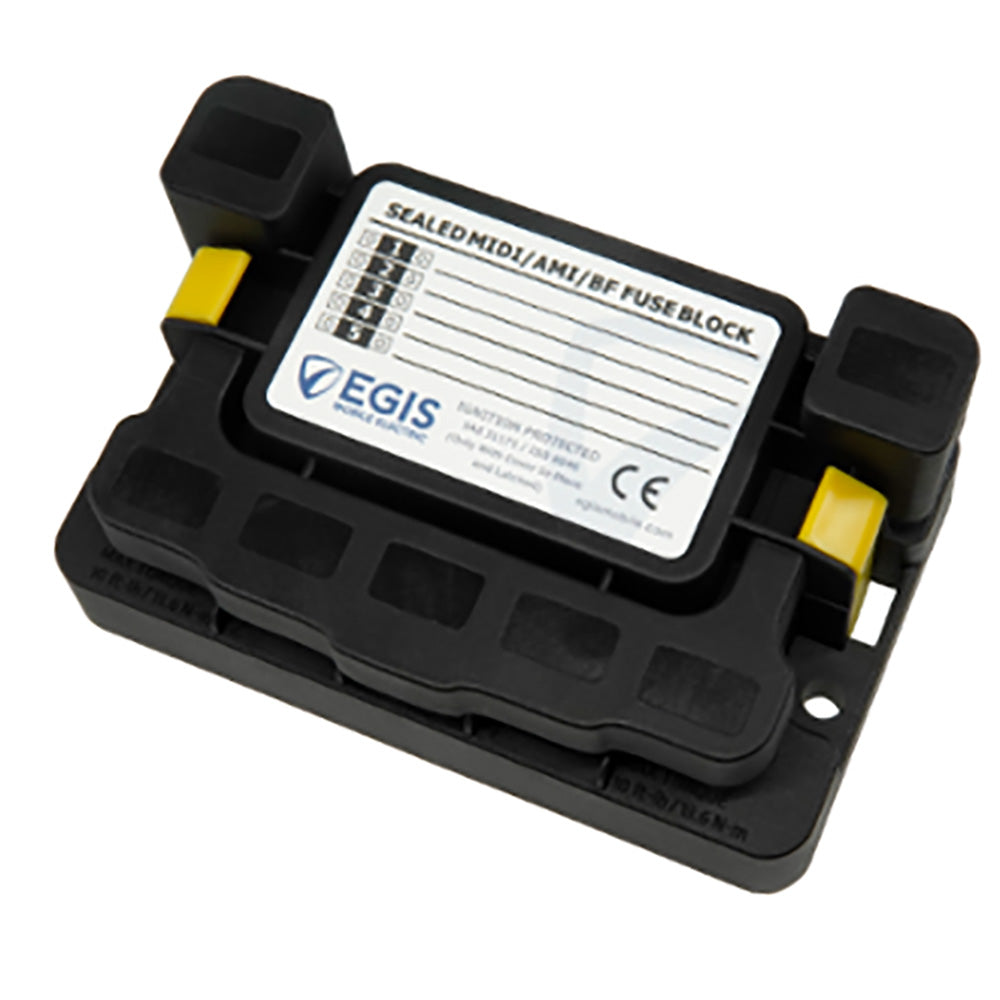

The Egis Mobile Electric MIDI 5x Fuse Block with Sealed Cover is the perfect solution for protecting your electrical circuits in challenging environments. Designed with marine-grade construction, this fuse block supports five MIDI/AMI/BF type fused outputs, ensuring your add-on circuits remain safe from accidental short circuits and overload events. Its sealed design guarantees durability and reliability, making it ideal for both land and marine applications.
This fuse block is not just robust but also expandable. You can easily connect dual, triple, or quad link busbars, allowing for a plug-and-play installation that simplifies your power management setup. With its bullet-proof construction rated IP66/IP6K9K, it is built to withstand high temperatures and harsh conditions. The included protective cover conveniently stores two spare fuses, ensuring you have backup on hand when you need it.
Upgrade your electrical system with the Egis MIDI 5x Fuse Block and experience peace of mind knowing your circuits are protected. From recreational vehicles to boats, this versatile fuse block is designed to meet your needs effectively and efficiently.
Features: * Sealed marine grade construction compatible with 5 MIDI/AMI/BF type fused outputs.: Sealed marine grade construction compatible with 5 MIDI/AMI/BF type fused outputs.
* Protects add-on circuits from accidental short circuits to frame ground or battery negative.: Protects add-on circuits from accidental short circuits to frame ground or battery negative.
* Expandable with dual, triple, and quad link busbars for plug-and-play installation.: Expandable with dual, triple, and quad link busbars for plug-and-play installation.
* Bullet-proof construction sealed to IP66/IP6K9K, using high-temperature materials.: Bullet-proof construction sealed to IP66/IP6K9K, using high-temperature materials.
* Stainless steel cable lug studs and large mounting holes for easy installation.: Stainless steel cable lug studs and large mounting holes for easy installation.
* Protective cover stores 2 spare fuses and features an easy-to-operate latching mechanism.: Protective cover stores 2 spare fuses and features an easy-to-operate latching mechanism.
