High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features:
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 250
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

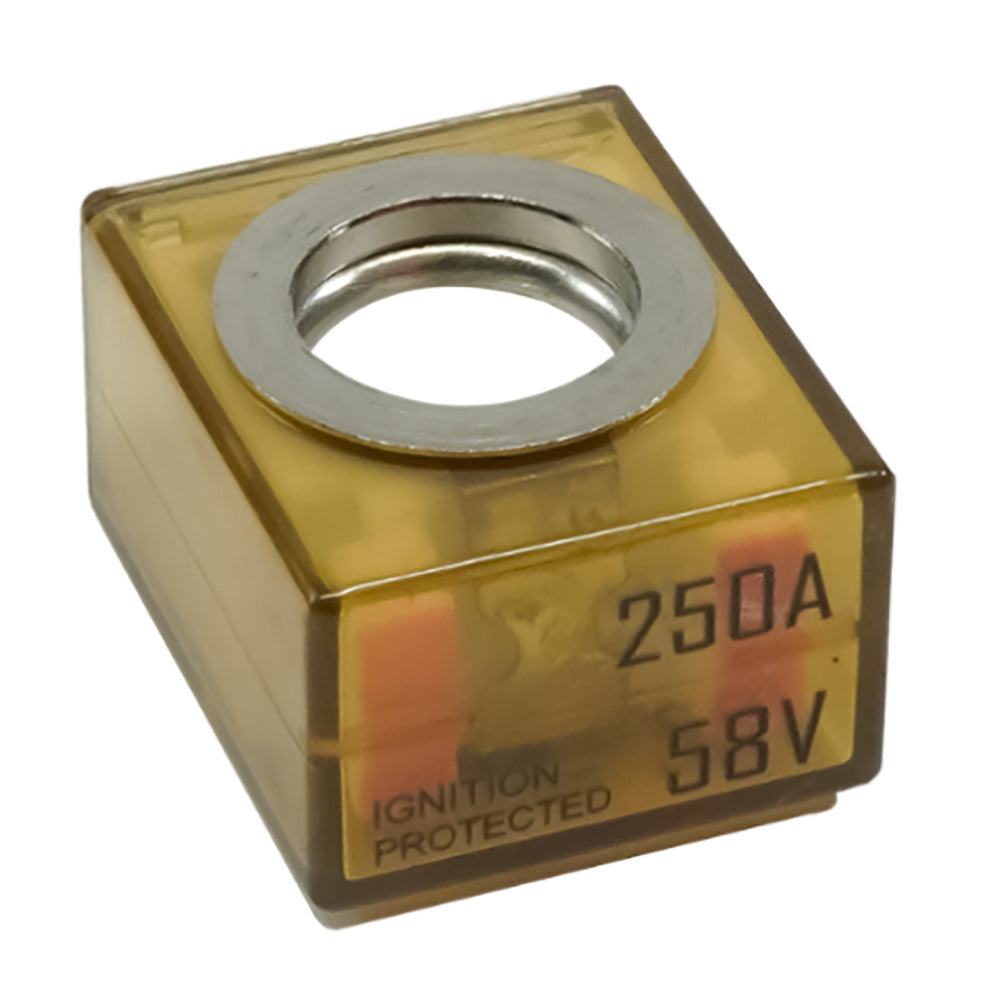

Ensure your electrical systems are fully protected with the Egis Mobile Electric MRBF Terminal Fuse rated at 250 Amps. This high-performance fuse is designed for larger battery banks, providing reliable circuit protection against short circuit events and over-current loads. Its transparent design allows for an easy visual check of the fuse status, making maintenance straightforward and hassle-free.
The Egis MRBF Terminal Fuse is equipped with ignition protection compliant with SAE/J1171 and ISO8846 standards, making it a safe choice for installations in closed compartments that may contain explosive gases. Its robust design ensures resistance against shock and vibration, making it ideal for both marine and automotive applications. Additionally, the fuse is sealed against dust and water intrusion, guaranteeing long-lasting reliability in harsh environments.
Features such as color-coded amperage ratings and a high interrupt rating satisfy ABYC requirements, ensuring optimal safety for your electrical systems. With a 4-year warranty, the Egis MRBF Terminal Fuse stands as a dependable choice for anyone looking to secure their electrical circuits effectively.
Features: * Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.: Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
* Ignition protected for safe installation in closed compartments with potentially explosive gases.: Ignition protected for safe installation in closed compartments with potentially explosive gases.
* Harsh environment design with shock and vibration resistance, ideal for marine and vehicle electrical systems.: Harsh environment design with shock and vibration resistance, ideal for marine and vehicle electrical systems.
* Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.
* Color-coded for easy identification of amperage rating.: Color-coded for easy identification of amperage rating.
* 58 Vdc rating easily supports 12 to 48V nominal applications.: 58 Vdc rating easily supports 12 to 48V nominal applications.
* 4-Year warranty demonstrates confidence in product reliability and performance.: 4-Year warranty demonstrates confidence in product reliability and performance.
