High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features:
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 60
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

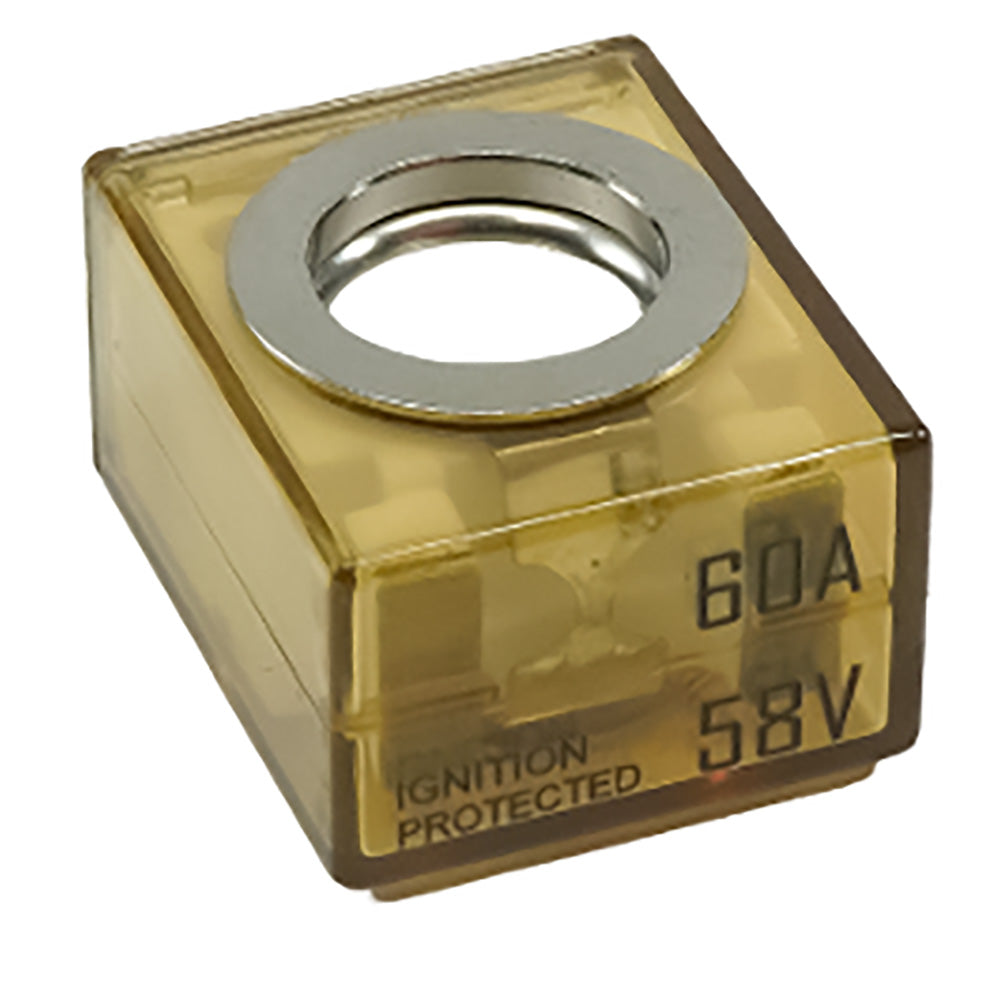

The Egis Mobile Electric MRBF Terminal Fuse with a 60 Amp capacity is designed for reliable electrical circuit protection in demanding environments. This fuse features a transparent casing, allowing for easy visual identification of fuse status, ensuring immediate awareness of any issues. With its ignition protection compliant with SAE/J1171-ISO8846 standards, this fuse is safe for installation even in closed compartments where potentially explosive gases may be present.
Engineered for high performance, the MRBF Terminal Fuse meets ABYC requirements, making it ideal for larger battery banks. Its high interrupt rating safeguards against short circuit events and over-current loads, preventing overheating of wire insulation and subsequent damage. Additionally, this fuse is sealed against dust and water intrusion, providing durability and reliability for your electrical systems. Color-coded for easy identification of amperage rating, the Egis MRBF Terminal Fuse is a must-have component for any marine or vehicle electrical setup.
Features: * Transparent design for easy visual of fuse status: Transparent design for easy visual of fuse status
* Ignition-protected for safe installation in closed compartments: Ignition-protected for safe installation in closed compartments
* High interrupt rating satisfies ABYC requirements for larger battery banks: High interrupt rating satisfies ABYC requirements for larger battery banks
* Color-coded for quick identification of amperage rating: Color-coded for quick identification of amperage rating
* Prevents wire insulation overheating due to short circuit events: Prevents wire insulation overheating due to short circuit events
* Shock and vibration resistant for harsh environments: Shock and vibration resistant for harsh environments
* Sealed against dust and water for reliable protection: Sealed against dust and water for reliable protection
* Supports 12 to 48V nominal applications: Supports 12 to 48V nominal applications
* 4-Year warranty ensuring product reliability: 4-Year warranty ensuring product reliability
