High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
Color-coded for easy ID of amperage rating
Features:
Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
58 Vdc Rating: easily supports 12 to 48V nominal applications.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4-Year Warranty: We stand behind our products ability to meet your needs.
Specifications:
Continuous Current (Amps): 80
Max Voltage (VDC): 58
Interrupt Rating @ 14 VDC (Amps): 10,000
Interrupt Rating @ 48Vdc (Amps): 5,000
Interrupt Rating @ 58Vdc (Amps): 2,000
Ingress Protection: IP66

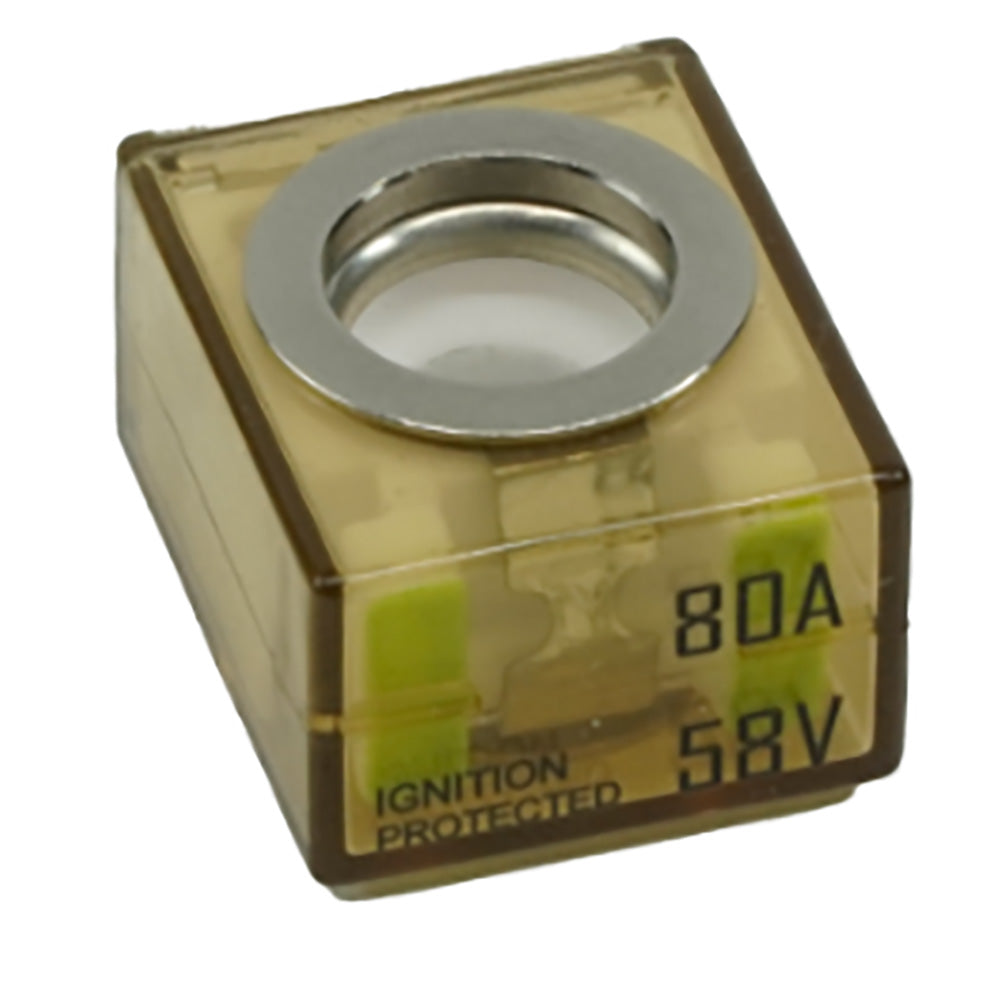

The Egis Mobile Electric MRBF Terminal Fuse, rated at 80 Amps, provides robust protection for your electrical circuits. Designed with a transparent casing, this fuse allows for an easy visual inspection of its status, making it simple to monitor its functionality. Its ignition protection according to SAE/J1171-ISO8846 standards ensures safety in closed compartments where potentially explosive gases may be present. This makes it ideal for marine and vehicle electrical systems.
Engineered for high performance, the MRBF Terminal Fuse boasts a high interrupt rating, satisfying ABYC requirements for DC main circuit protection on larger battery banks. Its color-coded design simplifies the identification of amperage ratings, while its harsh environment design ensures shock and vibration resistance. Built to last, this fuse is sealed against dust and water intrusion, ensuring reliable circuit protection throughout the lifespan of your electrical system installation.
Features: * Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.: Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
* Ignition protected for safe installation in closed compartments with potentially explosive gases.: Ignition protected for safe installation in closed compartments with potentially explosive gases.
* High interrupt current capability safely protects circuits connected to large paralleled battery banks with significant available power.: High interrupt current capability safely protects circuits connected to large paralleled battery banks with significant available power.
* Sealed against dust and water intrusion to ensure reliable circuit protection.: Sealed against dust and water intrusion to ensure reliable circuit protection.
* Color-coded for easy identification of amperage rating.: Color-coded for easy identification of amperage rating.
* Rated for up to 58 VDC, easily supports applications ranging from 12 to 48 volts.: Rated for up to 58 VDC, easily supports applications ranging from 12 to 48 volts.
* Backed by a 4-year warranty, ensuring the product meets your needs.: Backed by a 4-year warranty, ensuring the product meets your needs.
