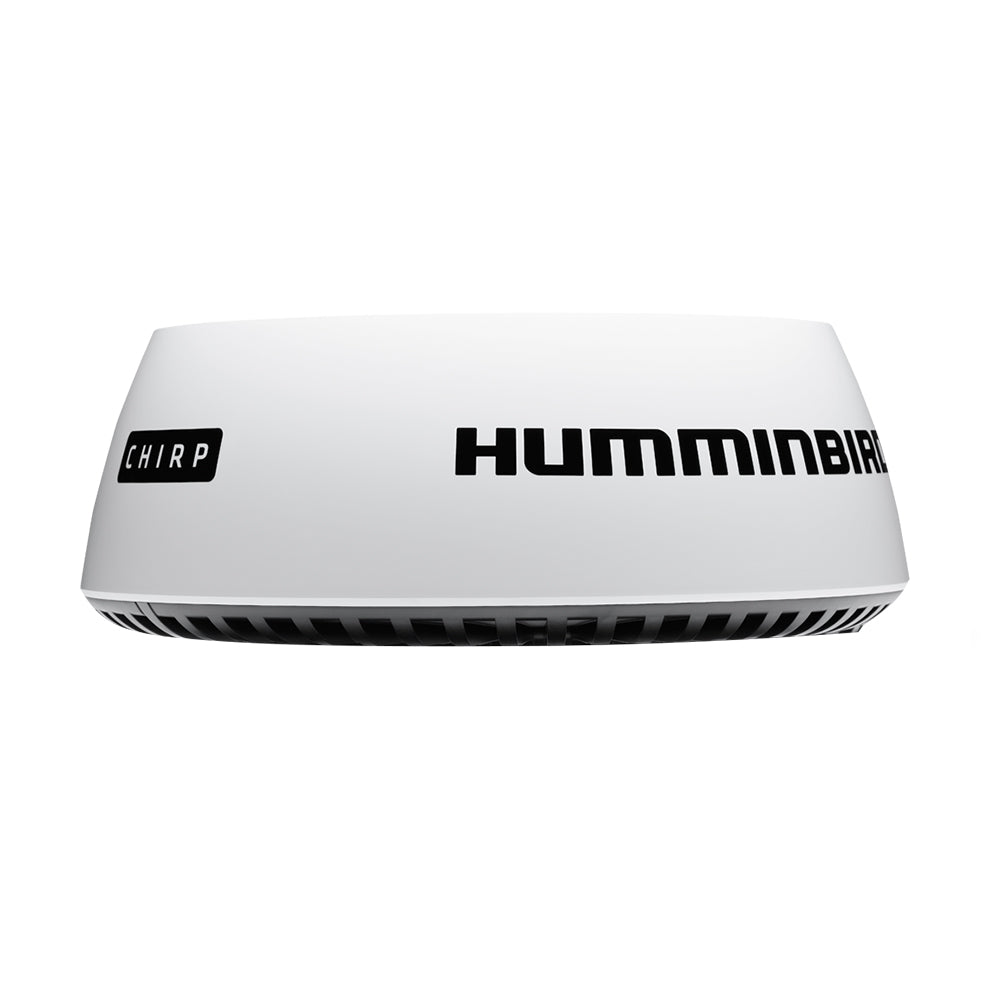

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.
Features:
Antenna Dimension - 21" Enclosed Dome
Antenna Type - Patch Array
Peak Power Output - 20W
Transmit Frequency - 9354 to 9446 MHz
Beam width (nominal) - 4.9 Horizontal and 20 Vertical
Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
Networking - Ethernet
Maximum Range Scale - from 1/16 to 24 nautical miles
Compatibility Networking HELIX models and all ONIX models
Discover enhanced situational awareness on the water with the Humminbird HB2124 CHIRP Radar. Designed for compatibility with select HELIX and ONIX models, this state-of-the-art radar utilizes CHIRP pulse compression technology, setting a new standard for compact solid-state radar systems. Experience superior radar imaging across both long and short ranges, making it easier to navigate in low-visibility conditions and identify gamefish by tracking birds and floating obstacles.
The Humminbird HB2124 Radar is equipped with an impressive array of features, including a 21-inch enclosed dome antenna, 20W peak power output, and a maximum range scale of up to 24 nautical miles. It offers incredible definition for tracking weather and vessels, ensuring safety and efficiency while on the water. With its robust design and IPX6 waterproofing, you can rely on this radar to perform in various marine environments.
Features: * Antenna Type: 21" Enclosed Dome: Antenna Type: 21" Enclosed Dome
* Peak Power Output: 20W: Peak Power Output: 20W
* Transmit Frequency: 9354 to 9446 MHz: Transmit Frequency: 9354 to 9446 MHz
* Beam Width: 4.9 degrees Horizontal and 20 degrees Vertical: Beam Width: 4.9 degrees Horizontal and 20 degrees Vertical
* Input Voltage: 12 or 24 VDC (Minimum - 10.8 Volts, Maximum - 31.2 Volts): Input Voltage: 12 or 24 VDC (Minimum - 10.8 Volts, Maximum - 31.2 Volts)
* Networking: Ethernet compatible: Networking: Ethernet compatible
* Maximum Range Scale: 1/16 to 24 nautical miles: Maximum Range Scale: 1/16 to 24 nautical miles
* Power Consumption: Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W: Power Consumption: Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
* Waterproofing: IPX6 rated: Waterproofing: IPX6 rated
