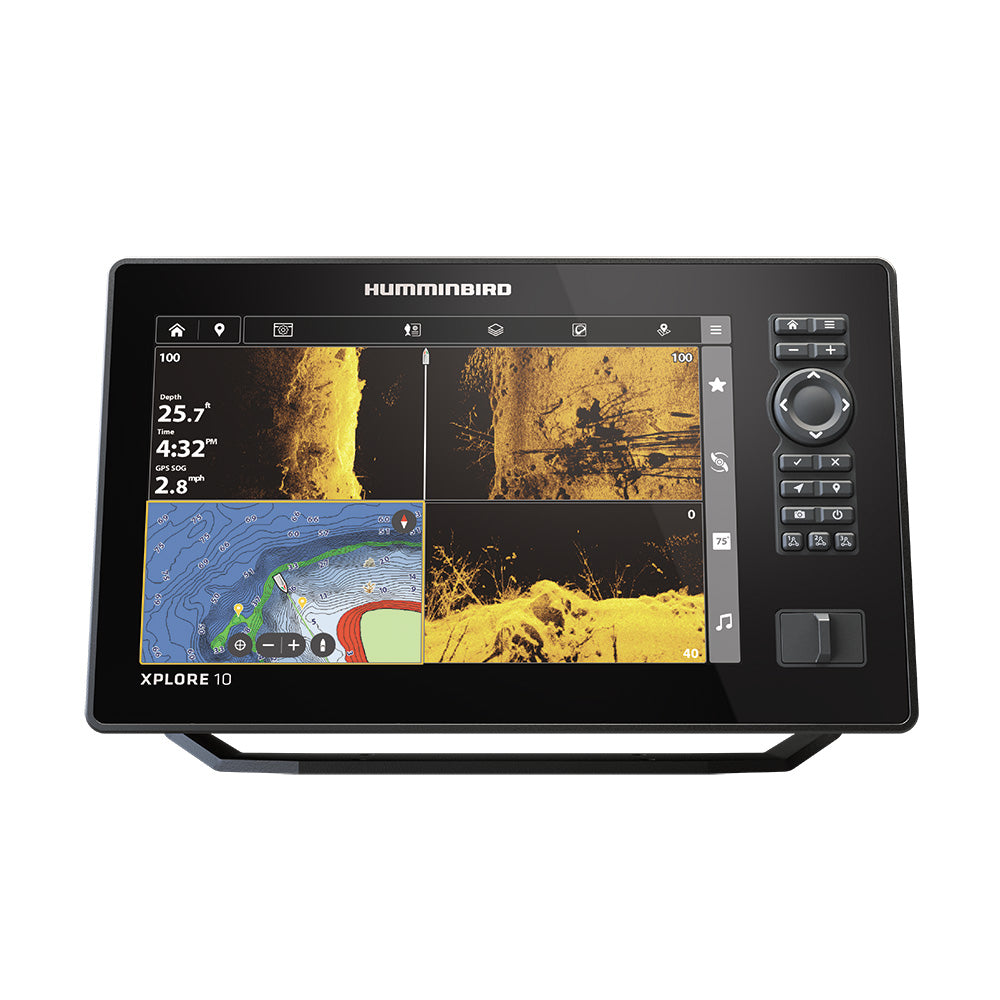

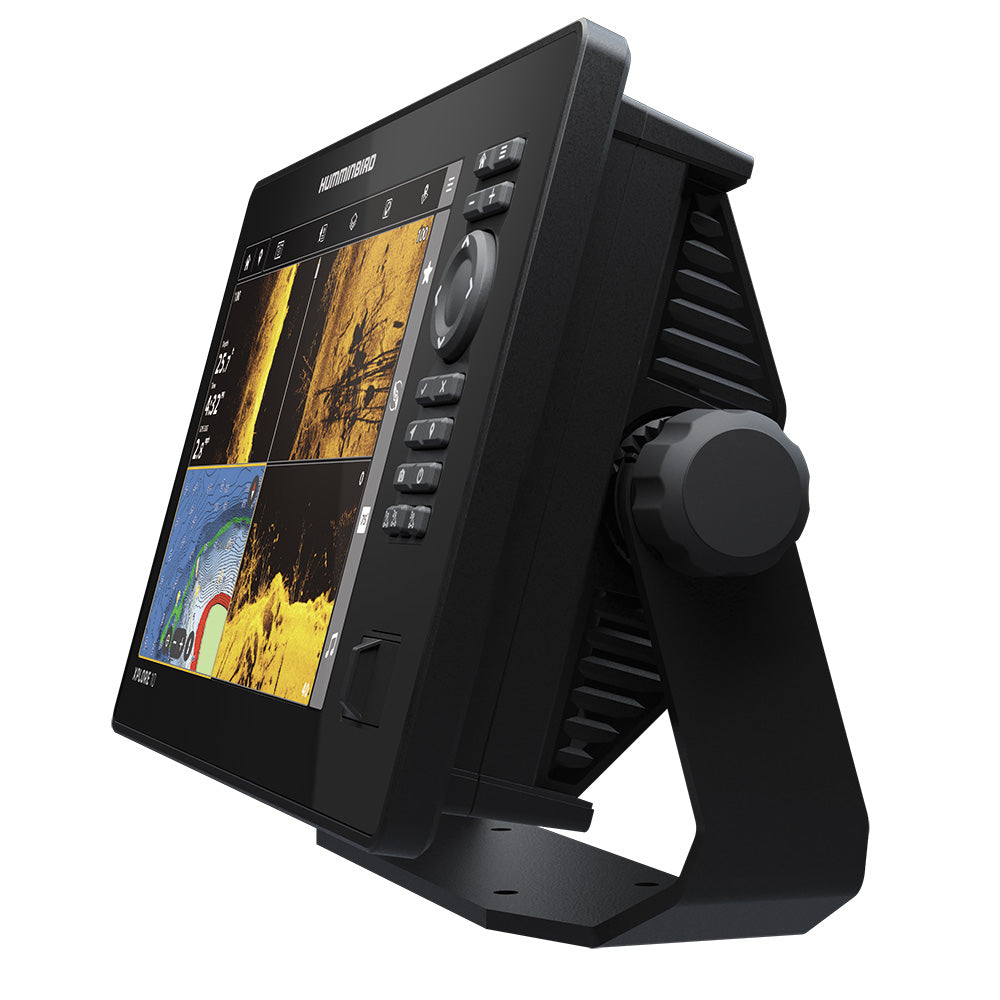

Humminbird XPLORE 10 Control Head Only - Part Number 412010-1CHO

XPLORE 10 Control Head Only

THE XPLORE 10 CHO features a 10 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products. This CHO (Control Head Only) model is a great option for anglers looking to select their transducer with MEGA Live Imaging or Built-in MEGA Imaging trolling motor from Minn Kota.

Features:

Control Head Only Model:

• This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network control. Easily access the preloaded views from the user-friendly menu system, operated by a touch screen or directional keypad, to operate your fish finder in any conditions reliably.

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 720V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Dual Spectrum CHIRP Sonar: (with optional transducer)

• Before you cast, know whats down there thanks to highly-detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+: (with optional transducer)

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+: (with optional transducer)

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head


• Power adapter


• Unit cover


• Mounting bracket

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD


• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+


• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low


• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)


• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA


• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)


• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)


• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)


• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)


• Interface: Touch Screen, Keypad Control


• Power Input: 10.8-20 VDC


• Power Output Peak-to-Peak: 8000 Watts


• Power Output RMS: 1000 Watts


• Screen Snap Shot: Included


• Sonar Recording: Included


• Mount-Standard: Gimbal


• Mount-Standard Size: 12.098 in W x 7.702 in H x 3.891 in D


• Mount-Optional: In-Dash Mounting Kit


• Mount-Optional Size: 12.098 in W x 7.702 in H x 3.891 in D


• Transducer Mount Location: Transom


• GPS Chartplotting: Included


• GPS Receiver: Internal


• GPS Trackplotting: Not Supported


• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000


• 360 Imaging Compatibility: Yes


• MEGA Live Compatibility: Yes


• Humminbird Basemap: Included


• LakeMaster Compatibility: Yes


• CoastMaster Compatibility: Yes


• Navionics Gold/HotMaps Compatibility: Yes


• Navionics Platinum+ Compatibility: Yes


• Platinum Compatibility: Yes


• Minn Kota Advanced GPS Navigation Compatibility: Yes


• Minn Kota i-Pilot Link Compatibility: Yes


• Minn Kota Talon Shallow Water Anchor Compatibility: Yes


• Radar Compatibility: Yes


• 5-Port Ethernet Switch Compatibility: Yes


• AIS Compatibility: Not Supported


• Autopilot Compatibility: No


• Heading Sensor GPS Compatibility: No


• Heading Sensor GPS (NMEA 2000) Compatibility: Yes


• NMEA2000: Included


• Target Separation: 2.5 in


• Upgradable Software: Yes


• View Preset Keys: Yes


• X-Press Menu System: Yes


• Custom Digital Readout: Yes


• Custom View Selections: Yes


• Display Colors Grayscale: 24-Bit


• Display Type: Color TFT


• Speed: Included


• Temperature: Built In


• Temperature Alarm: Yes


• Temperature Graph: Yes


• HDMI Compatible: No


• Warranty: Two-Year Warranty

The Humminbird XPLORE 10 Control Head Only (Part Number 412010-1CHO) is designed for serious anglers who demand clarity and precision on the water. Featuring a stunning 10-inch ultra-clear display and a user-friendly Cross Touch interface, this control head offers advanced sonar technology including MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar. With built-in GPS and Humminbird Basemap, you'll navigate with confidence and access detailed maps of over 10,000 lakes and coastal areas across the continental U.S.

This CHO model provides the flexibility to choose your own transducer, making it compatible with MEGA Live Imaging and Minn Kota's built-in MEGA Imaging trolling motors. The device also supports Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking, ensuring seamless integration with the One-Boat Network family, which includes Minn Kota and Cannon products. Whether you're mapping out new fishing spots or sharing sonar data with an existing network, the XPLORE 10 is equipped to elevate your fishing experience.

Features:
* Control Head Only Model: Allows for selection of compatible transducers, including MEGA Imaging options.: Control Head Only Model: Allows for selection of compatible transducers, including MEGA Imaging options.
* Full-HD Display with Cross Touch interface: 1280H x 720V display provides exceptional detail and user control.: Full-HD Display with Cross Touch interface: 1280H x 720V display provides exceptional detail and user control.
* Dual Spectrum CHIRP Sonar: Offers wide and narrow modes for comprehensive fish and structure detection.: Dual Spectrum CHIRP Sonar: Offers wide and narrow modes for comprehensive fish and structure detection.
* MEGA Side Imaging+: Crystal-clear views extend out to 200 feet on either side of the boat.: MEGA Side Imaging+: Crystal-clear views extend out to 200 feet on either side of the boat.
* MEGA Down Imaging+: Delivers clarity down to 200 feet below for detailed underwater observation.: MEGA Down Imaging+: Delivers clarity down to 200 feet below for detailed underwater observation.
* Industry-leading Humminbird Sonar: Combines multiple sonar technologies for superior fish-finding capabilities.: Industry-leading Humminbird Sonar: Combines multiple sonar technologies for superior fish-finding capabilities.
* Internal GPS and Humminbird Basemap: Enhanced navigation features with comprehensive underwater terrain mapping.: Internal GPS and Humminbird Basemap: Enhanced navigation features with comprehensive underwater terrain mapping.
* Premium Chart Compatible: Supports LakeMaster and CoastMaster mapping, plus additional chart options.: Premium Chart Compatible: Supports LakeMaster and CoastMaster mapping, plus additional chart options.
* AutoChart Live: Enables real-time mapping of fishing locations with built-in recording time.: AutoChart Live: Enables real-time mapping of fishing locations with built-in recording time.
* One-Boat Network Compatible: Integrates with Minn Kota and Cannon products for enhanced fishing features.: One-Boat Network Compatible: Integrates with Minn Kota and Cannon products for enhanced fishing features.
* Ethernet Networking: High-speed connections allow for multiple devices and add-on technologies.: Ethernet Networking: High-speed connections allow for multiple devices and add-on technologies.
* Bluetooth: Wireless control for shallow water anchors and downriggers, along with smartphone notifications.: Bluetooth: Wireless control for shallow water anchors and downriggers, along with smartphone notifications.
* NMEA 2000 Networking Built-in: Connects to an accessory network for comprehensive boat performance data.: NMEA 2000 Networking Built-in: Connects to an accessory network for comprehensive boat performance data.
