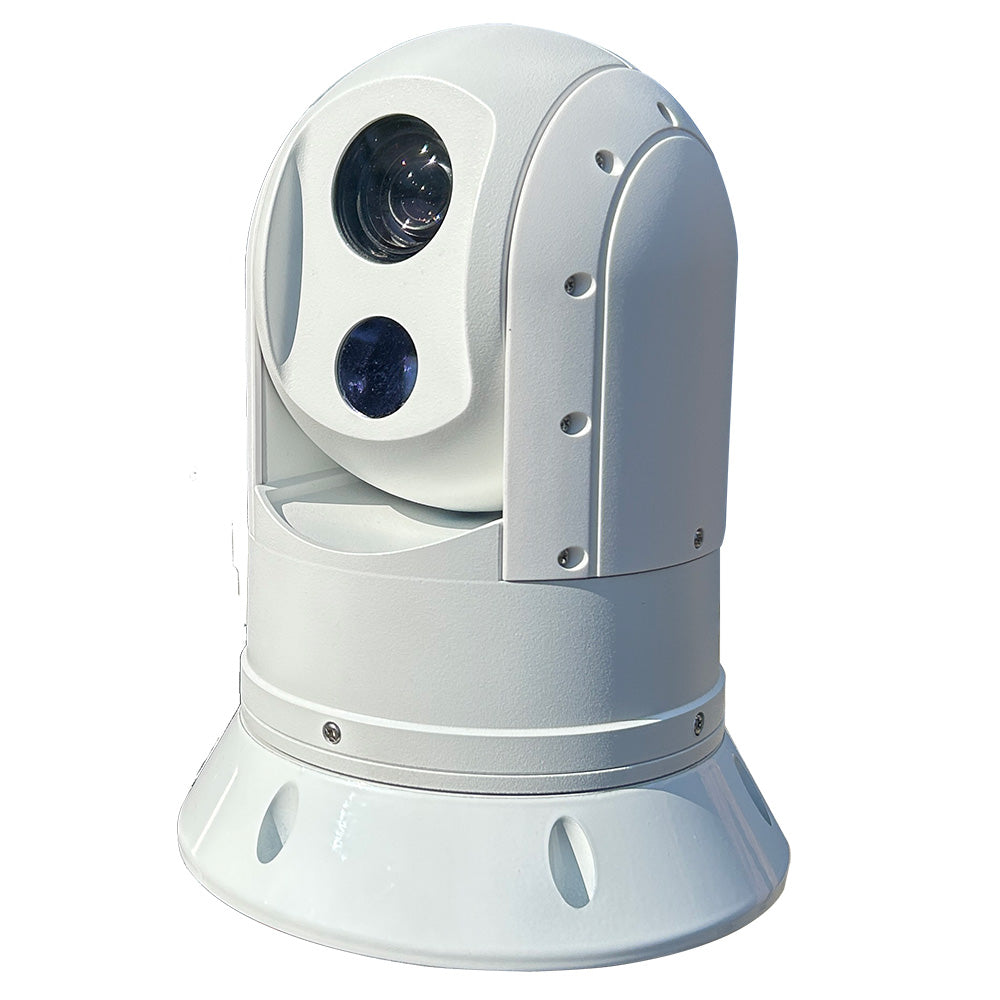

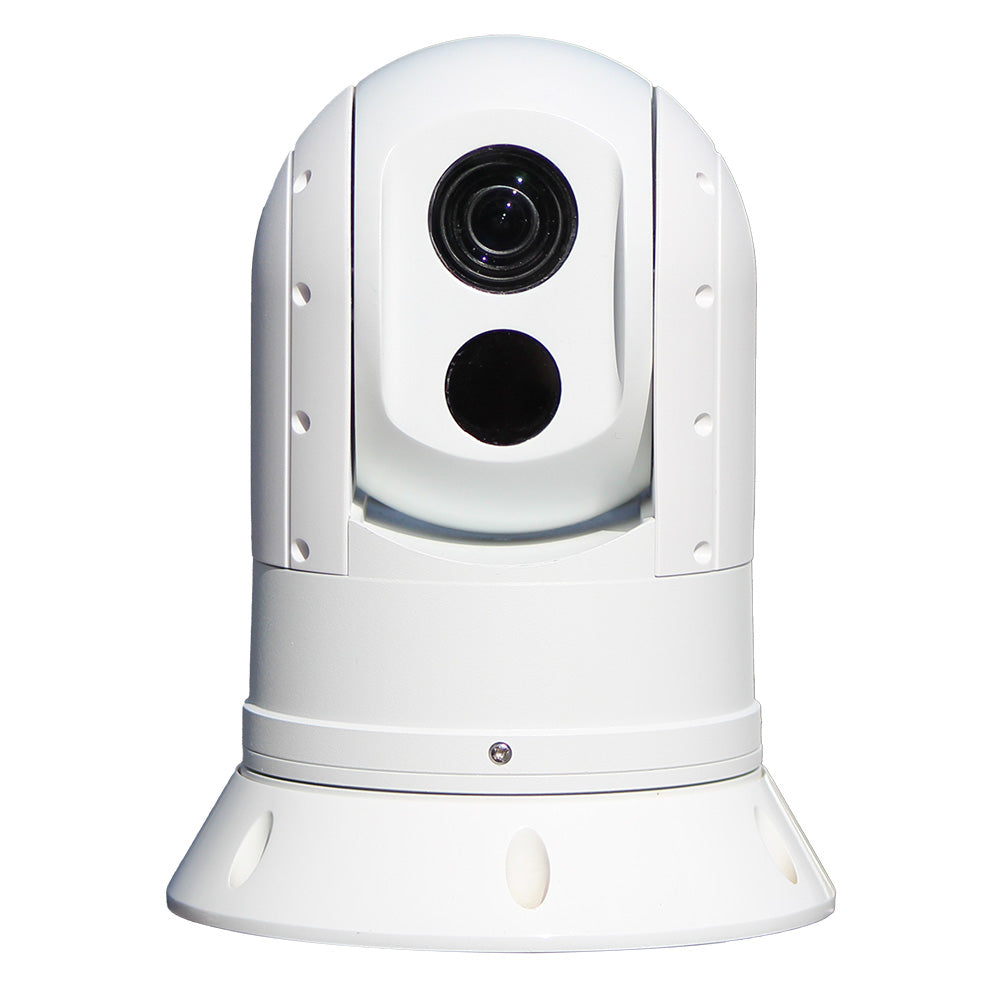

A295 Dual Payload 384x288 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera
The IRIS-A295 Low-Cost Dual Payload Night Vision PTZ From Iris Innovations.
With an industry-leading 400300 thermal resolution, the cameras also feature a 2MP high-definition visible spectrum camera core with excellent low light performance, super sharp footage, and 10x optical zoom capabilities.
Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.
Each sensor has its IP address meaning the cameras can be configured, controlled, and switched independently, and are compatible with many leading marine chart plotters via our range of CMAC camera management interfaces. An RS485 Serial Data connection is also provided to maximize control options so Atom cameras can be controlled using suitable joystick control devices and NVRs. With its rugged, compact footprint and extremely competitive pricing, our ATOM range of IP PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. Standing only 8 high, ATOM cameras blend into the vessels aesthetic without standing out, and because they are so small they are the perfect camera solution for RIBs, center consoles, and sports fishing boats.
To maximize compatibility, the ATOM-A295 is both ONVIF compliant and as the camera is also NDAA compliant, can be used for government, military, and other security-sensitive applications.
Features:
- Dual Spectrum Cameras - Thermal Visible Spectrum
- Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom
- 384x288 (A295) thermal core resolution - 4x Digital Zoom
- Miniature - Lightweight Compact Form Factor
- Dimensions 206mm x 160mm / 2Kg Weight
- Available with single IP address or dual IP addresses
- Side mount or Rear mount Waterproof Cable Connector
- Push Lock Quick Connector - IP66
- 17m Pixel Pitch
- Features IP and RS485 Serial Data Control
- 750mA @ +12VDC Power / 8.4W
- IP66 Environmental Rating
Technical Specifications:
- Thermal Camera Resolution - 384x288
- Thermal Camera Lens - 19mm
- Pixel Pitch - 17m
- Refresh Rate - 25/30Hz
- Color Pallets - White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint
- Image Enhancement - ICE Image Contrast Enhancement - 7 Levels
- Zoom - x4 Smooth Digital Zoom - Continuous
- Visible Spectrum Camera - 1/2.8 High-Performance Low Illumination SONY CMOS Sensor IMX327
- Resolution - 1920 x 1080 25/30 frames/sec
- Focal Length / Iris / Zoom - F = 4.7mm 94mm / F1.6 F3.5 / 20x Optical Zoom
- Compression - H.264 / H.265
- Bit Rate - 32Kbps 16Mbps
- Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)
- Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)
- Cellular/WiFi/GPS - Optional
- Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D
- Power Requirements - +12vDC / 750mA / 8.4W
Experience superior surveillance with the Iris Innovations IRIS-A295 Dual Payload Camera. This advanced IP PTZ camera features a 384x288 thermal resolution alongside a 2MP high-definition visible spectrum camera, offering exceptional low light performance and 10x optical zoom for detailed imaging. Perfect for various applications, the IRIS-A295 is designed to withstand harsh environmental conditions, thanks to its robust waterproof casing.
The innovative design of the IRIS-A295 allows for independent configuration and control of both thermal and visible spectrum cameras, making it a versatile solution for marine environments. Its compact size ensures it fits seamlessly on any vessel, from RIBs to sports fishing boats. With support for ONVIF compliance and NDAA regulations, this camera is tailored for use in government and security-sensitive applications, ensuring reliability and performance where it matters most.
Features:
* Dual Spectrum Cameras - Thermal and Visible Spectrum capabilities: Dual Spectrum Cameras - Thermal and Visible Spectrum capabilities
* Visible Spectrum Camera with 2MP HD Resolution and 10x Optical Zoom: Visible Spectrum Camera with 2MP HD Resolution and 10x Optical Zoom
* 384x288 thermal core resolution with 4x Digital Zoom: 384x288 thermal core resolution with 4x Digital Zoom
* Miniature and Lightweight Compact Form Factor: Miniature and Lightweight Compact Form Factor
* Available with single or dual IP addresses for flexible networking: Available with single or dual IP addresses for flexible networking
* Side or Rear Mount Waterproof Cable Connector options: Side or Rear Mount Waterproof Cable Connector options
* Push Lock Quick Connector with IP66 rating for robust performance: Push Lock Quick Connector with IP66 rating for robust performance
* IP and RS485 Serial Data Control for enhanced functionality: IP and RS485 Serial Data Control for enhanced functionality
* Designed for rigorous environmental conditions with IP66 Environmental Rating: Designed for rigorous environmental conditions with IP66 Environmental Rating
