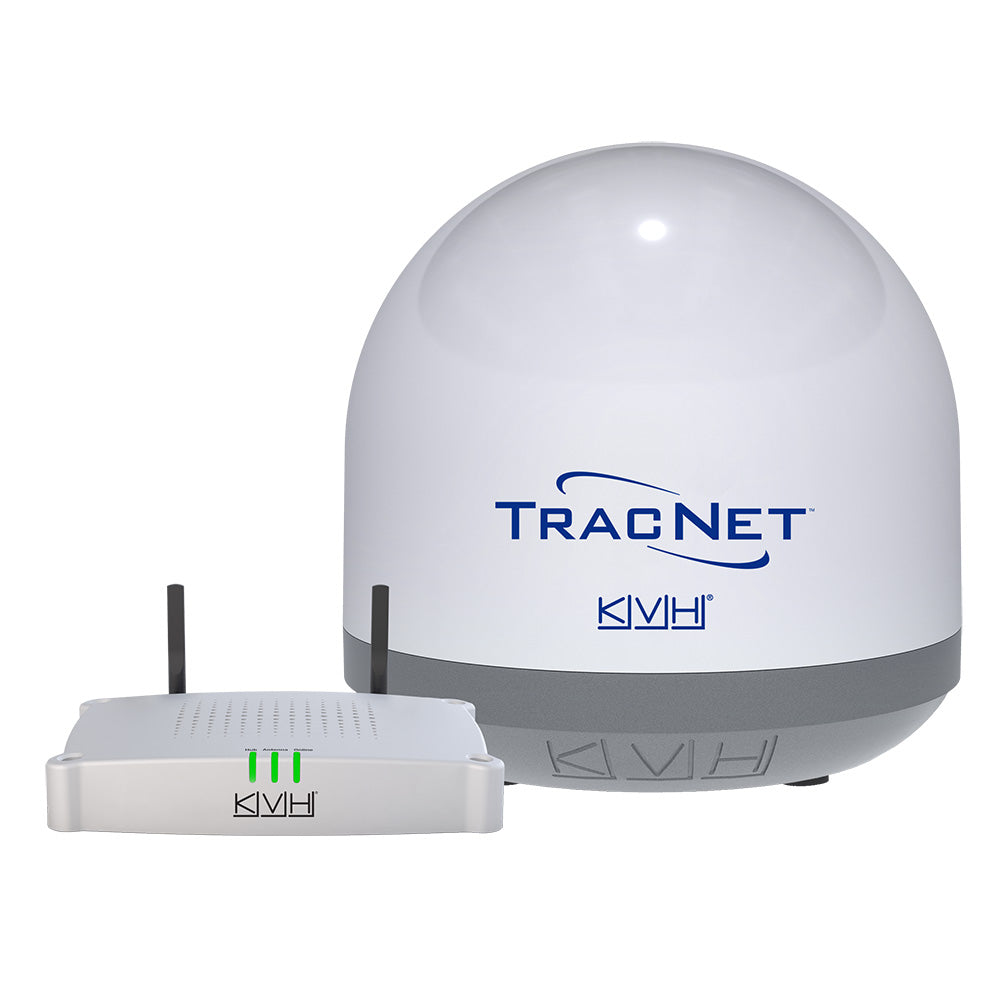

TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub
Are you looking for faster and more affordable data to support business and personal connectivity Would you like to experience home-like content streaming on your boat Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!
Features:
- 5G/LTE and WAN WiFi in a compact radome
- Integrated cellular//WiFi system with intelligent hybrid switching
- High-gain 5G cellular antennas for extended offshore coverage
- Single-cable, DC-powered maritime design (TracNet Hub)
- Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
- Data plans starting as low as $1/GB (subject to change)
- Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
- Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
- Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
- Marine-grade, compact antenna
- Single-cable antenna installation with ultra-efficient DC power design
- Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
- Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
- Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
- 4-port ethernet router
- Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access
Technical Specifications:
- Dome Dimensions - 13.5 (Dia.) x 13.1 (H)
- Dome Weight - 8 lbs
- Dome Operating Temperature - -25C to +55C (-13F to +131F)
- Dome Survival Temperature - -30C to +70C (-22F to +158F)
- Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN
- Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
- Power Consumption (Nominal/Max) - 16W/22W
- BDU Operating Temperature - -15C to +55C (+5F to +131F)
- BDU Survival Temperature - -25C to +70C (-13F to +158F)
- Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN
The KVH TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub is designed for boaters seeking high-speed connectivity on the water. This marine-grade terminal provides seamless access to 5G and LTE cellular services worldwide, allowing you to stream content, make calls, and connect with your favorite apps as if you were at home. Its robust design ensures that you can experience data speeds of over 300 Mbps while enjoying high-gain WiFi reception in marinas and ports.
Equipped with intelligent hybrid switching, the KVH TracNet Coastal Pro can efficiently manage connections between 5G, LTE, and WiFi networks. This feature makes it a perfect complement to existing onboard communications systems like Starlink and VSAT. With the convenience of month-to-month data plans and options for using your own SIM, the KVH TracNet Coastal Pro truly enhances your maritime connectivity experience.
Features:
* 5G/LTE and WAN WiFi in a compact radome: 5G/LTE and WAN WiFi in a compact radome
* Integrated cellular/WiFi system with intelligent hybrid switching: Integrated cellular/WiFi system with intelligent hybrid switching
* High-gain 5G cellular antennas for extended offshore coverage: High-gain 5G cellular antennas for extended offshore coverage
* Single-cable, DC-powered maritime design (TracNet Hub): Single-cable, DC-powered maritime design (TracNet Hub)
* Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports: Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
* Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology: Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology
* Intelligent switching among 5G, LTE, and WiFi with integrated onboard router: Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
* Marine-grade, compact antenna for reliable performance: Marine-grade, compact antenna for reliable performance
* Single-cable antenna installation with ultra-efficient DC power design: Single-cable antenna installation with ultra-efficient DC power design
* Compatible with the CommBox Edge Communications Gateway for advanced network management: Compatible with the CommBox Edge Communications Gateway for advanced network management
