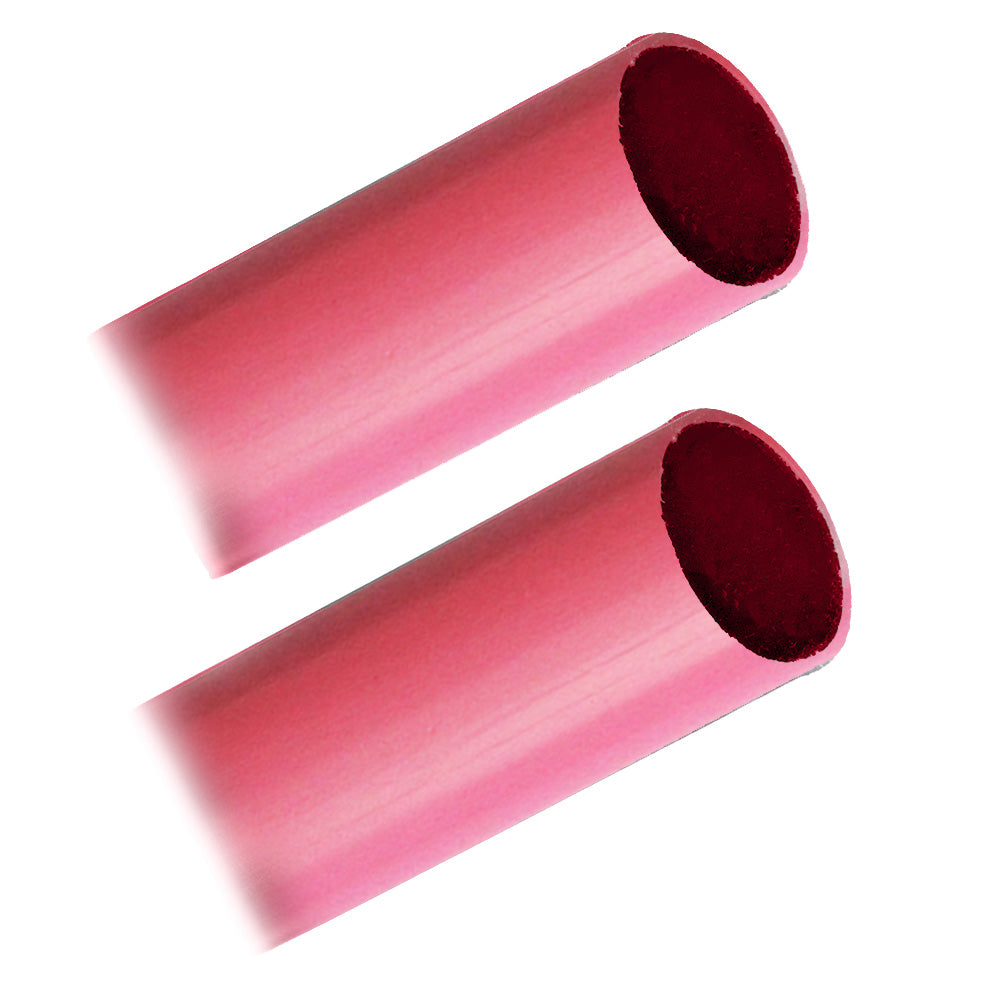

Battery Cable Heavy Wall Heat Shrink Tubing - 1 x 12 - Red (2-Pieces)
BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.
Features:
- Highly abrasion and impact-resistant
- Easy installation, shrinks when heated over 120 C
- The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
- A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
- Any connection in harsh conditions
- Adhesive lining provides a barrier against contaminants
- Excellent resistance to acids and alkalis
- Good resistance to fuel, oil, and solvents
Applications:
- Splice sealing
- Primary insulation
- Cable/jacket repair
- Direct burial/submersible
- Strain relief
Specifications:
- Expanded Inner Diameter: 1.1
- Recovered Inner Diameter: 0.367
- Application Range AWG: 1/0 - 4/0 (.40 - .95)
- Recovered Wall Thickness: 0.12
Compliances:
The Pacer Group BHW1-12RD-2 Battery Cable Heavy Wall Heat Shrink Tubing is designed for robust performance in demanding environments. Featuring a dual-purpose thermoplastic liner, this tubing flows and encapsulates when heated, providing exceptional mechanical strength and corrosion protection once cooled. Ideal for various applications such as splice sealing, primary insulation, and cable repairs, this heavy wall tubing ensures durability and reliability in any connection, even under harsh conditions.
Easy to install, the tubing shrinks effectively when heated over 120?C, adhering securely to materials like PVC, neoprene, and aluminum. Its sturdy construction offers outstanding insulation, abrasion resistance, and strain relief, making it a trusted choice for professionals. With excellent resistance to acids, alkalis, fuels, oils, and solvents, the Pacer Group heat shrink tubing is your go-to solution for protecting critical electrical connections from environmental contaminants.
Features:
* Highly abrasion and impact-resistant: Highly abrasion and impact-resistant
* Easy installation, shrinks when heated over 120?C: Easy installation, shrinks when heated over 120?C
* The thermoplastic liner adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum: The thermoplastic liner adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum
* Sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties: Sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties
* Provides superior environmental protection with adhesive lining: Provides superior environmental protection with adhesive lining
* Offers a barrier against contaminants in harsh conditions: Offers a barrier against contaminants in harsh conditions
* Excellent resistance to acids and alkalis: Excellent resistance to acids and alkalis
* Good resistance to fuel, oil, and solvents: Good resistance to fuel, oil, and solvents
