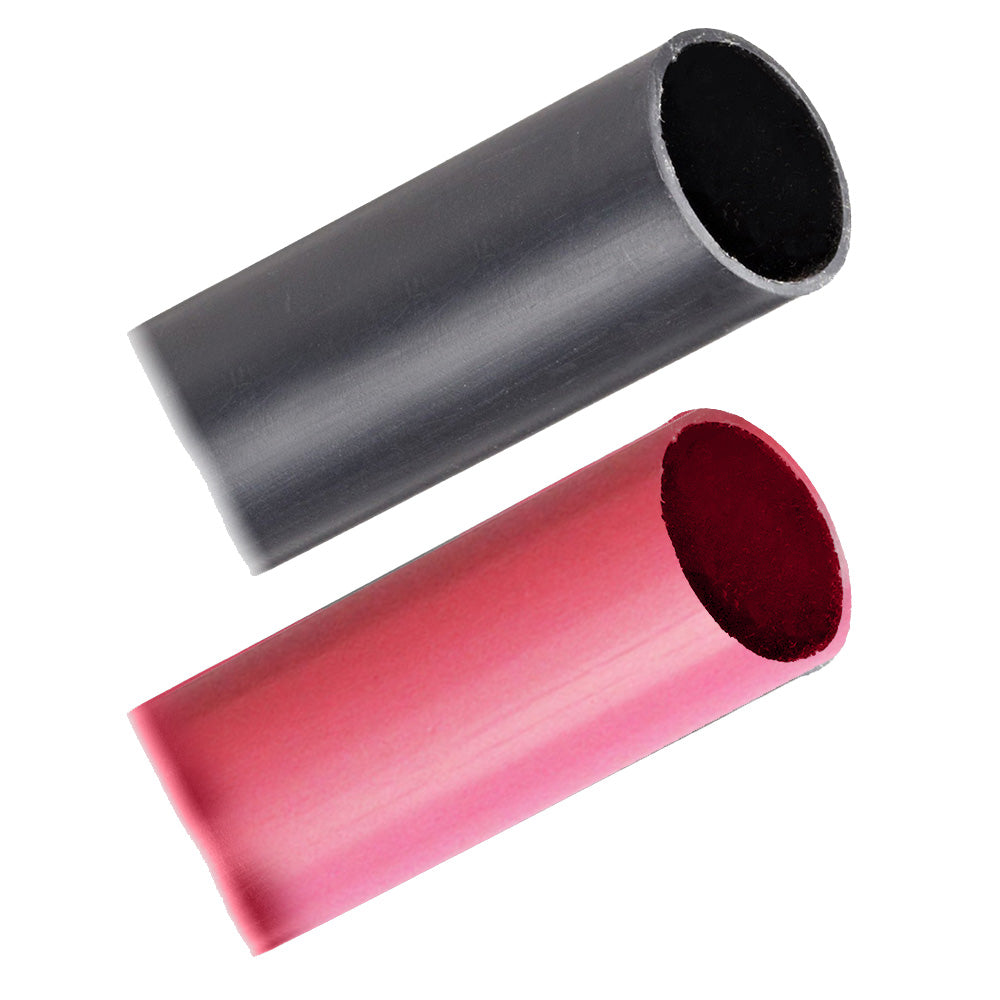

Battery Cable Heavy Wall Heat Shrink Tubing - 1 x 3 - Black/Red (2-Pieces Combo Pack)
BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.
Features:
- Highly abrasion and impact-resistant
- Easy installation, shrinks when heated over 120 C
- The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
- A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
- Any connection in harsh conditions
- Adhesive lining provides a barrier against contaminants
- Excellent resistance to acids and alkalis
- Good resistance to fuel, oil, and solvents
Applications:
- Splice sealing
- Primary insulation
- Cable/jacket repair
- Direct burial/submersible
- Strain relief
Specifications:
- Expanded Inner Diameter: 1.1
- Recovered Inner Diameter: 0.367
- Application Range AWG: 1/0 - 4/0 (.40 - .95)
- Recovered Wall Thickness: 0.12
Compliances:
The Pacer Group BHW1-3BKRD Heavy Wall Heat Shrink Tubing is designed to provide superior insulation and protection for your electrical connections. This 2-piece combo pack features a robust black and red color scheme, making it perfect for both aesthetic and functional applications. The tubing is coated internally with a dual-purpose thermoplastic liner that flows and encapsulates when heated, ensuring a secure and moisture-resistant seal once cooled.
Ideal for use in harsh environments, this heavy wall tubing offers excellent abrasion resistance and can withstand the rigors of everyday wear and tear. The thermoplastic adhesive adheres seamlessly to a variety of materials, including PVC, neoprene, and aluminum, providing a reliable barrier against contaminants. Whether you need to splice seal, repair cables, or provide strain relief, the Pacer Group heat shrink tubing is engineered to meet your needs with durability and performance in mind.
Features:
* Highly abrasion and impact-resistant for long-lasting use: Highly abrasion and impact-resistant for long-lasting use
* Easy installation, shrinks effectively when heated over 120?C: Easy installation, shrinks effectively when heated over 120?C
* Thermoplastic liner adheres well to PVC, neoprene, polyolefin, EPR, steel, and aluminum: Thermoplastic liner adheres well to PVC, neoprene, polyolefin, EPR, steel, and aluminum
* Sturdy heavy wall construction with excellent insulating and strain-relieving properties: Sturdy heavy wall construction with excellent insulating and strain-relieving properties
* Designed for connections in harsh conditions with superior environmental protection: Designed for connections in harsh conditions with superior environmental protection
* Adhesive lining provides an effective barrier against contaminants: Adhesive lining provides an effective barrier against contaminants
* Excellent resistance to acids, alkalis, fuel, oil, and solvents: Excellent resistance to acids, alkalis, fuel, oil, and solvents
