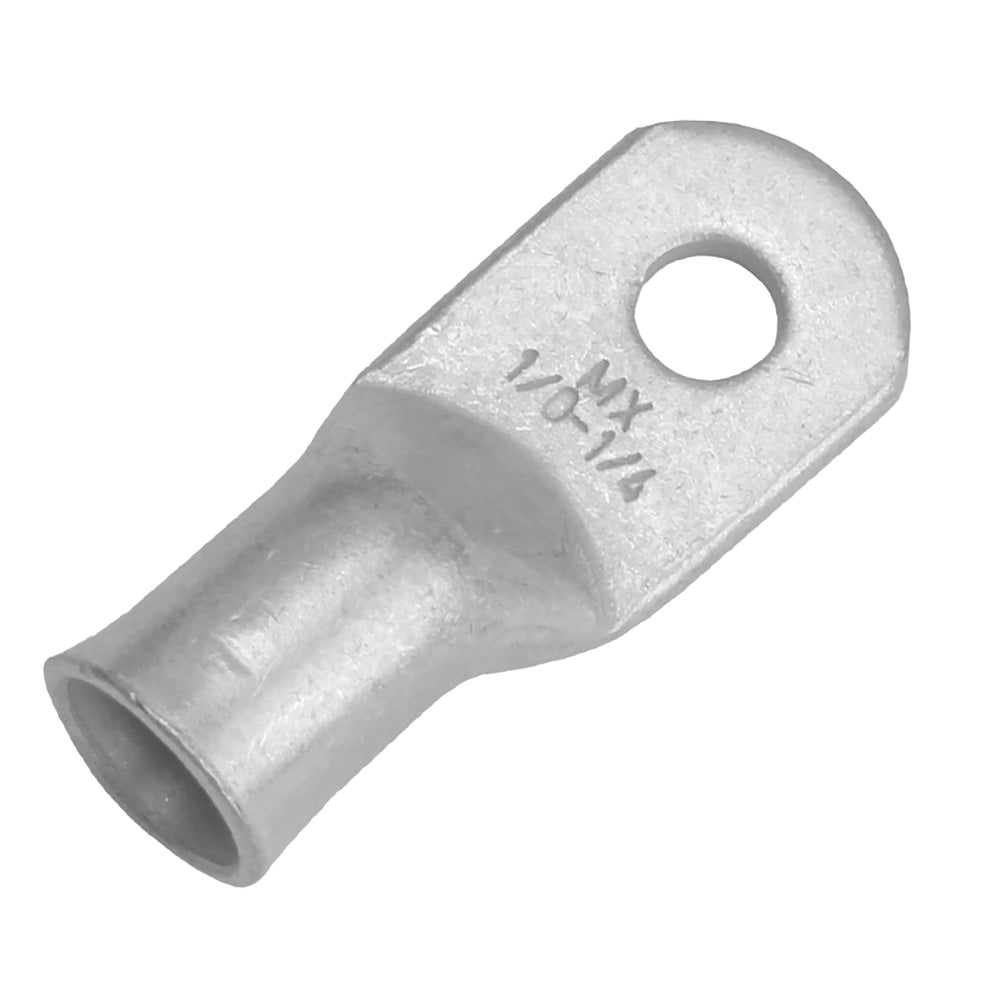

Tinned Lug 1/0 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1/0
- Stud Size: 1/4
- Length: 1.844
- Width: 0.734
- Clearance: 0.406
- Package Size: 10
The Pacer Group TAE1/0-14R-10 Tinned Lug 1/0 AWG with 1/4" Stud Size is designed for those who require dependable electrical connections. These closed-end lugs are tin-plated and feature no exposed seams, making them perfect for marine applications where waterproof connections are crucial. When paired with epoxy heat shrink, these lugs ensure that all components are shielded from the elements, providing enhanced longevity and durability.
Utilizing the Pacer Tinned Lugs is simple. Just strip your wire to the correct length, slide the lug over the exposed section, and crimp securely. These lugs are engineered for stranded copper wires and offer a larger pad area for improved contact. With various stud sizes and wire gauges available, you can easily find the right fit for your needs. For any questions on selection, our Pacer experts are ready to assist you.
Features:
* Tin Plated for corrosion resistance: Tin Plated for corrosion resistance
* No exposed seams enhance durability: No exposed seams enhance durability
* Rated for 600V, ensuring safe usage: Rated for 600V, ensuring safe usage
* Constructed from seamless tubes of 99.9% copper for superior conductivity: Constructed from seamless tubes of 99.9% copper for superior conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area facilitates better contact: Larger pad area facilitates better contact
* Cable size and stud hole stamped on pad for easy identification: Cable size and stud hole stamped on pad for easy identification
* Can be crimped or soldered for versatile installation: Can be crimped or soldered for versatile installation
* Highly controlled flare allows for easy cable insertion: Highly controlled flare allows for easy cable insertion
* Tight barrel to pad transition maximizes usable barrel length: Tight barrel to pad transition maximizes usable barrel length
