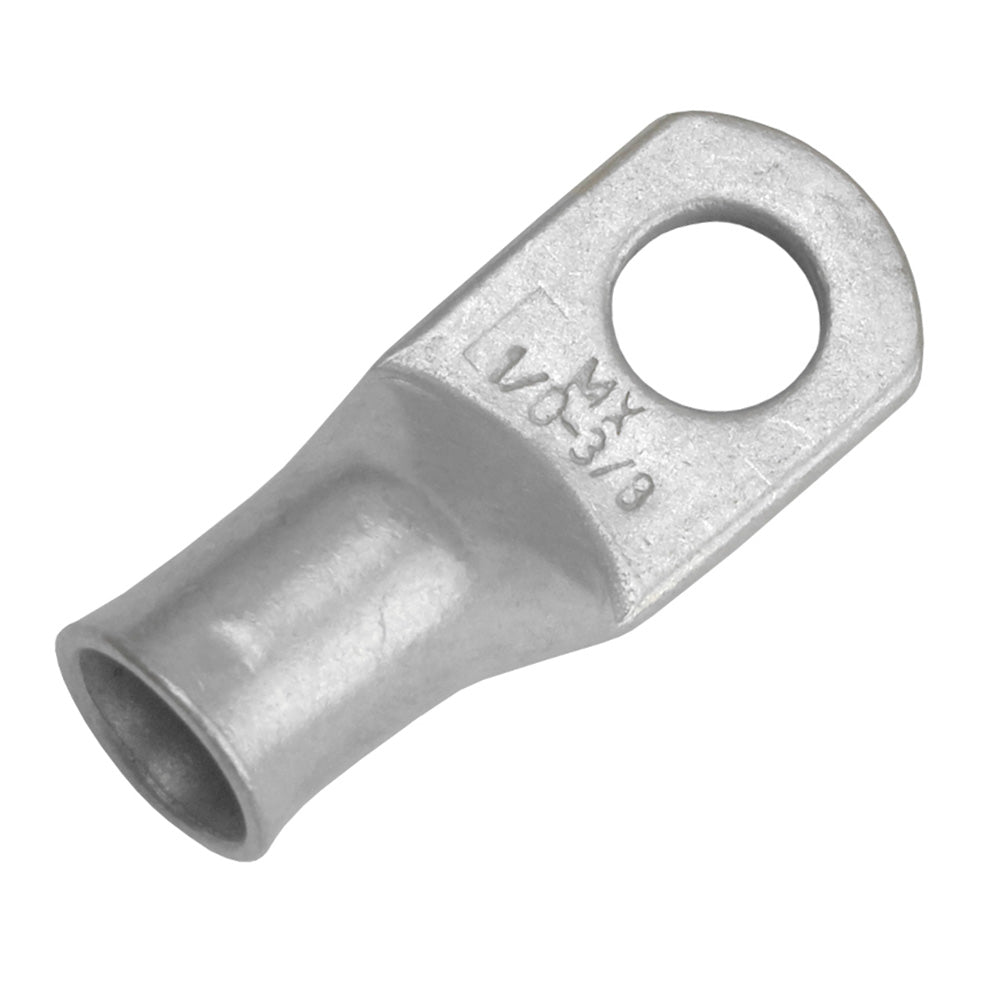

Tinned Lug 1/0 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1/0
- Stud Size: 3/8
- Length: 1.844
- Width: 0.734
- Clearance: 0.406
- Package Size: 10
Ensure a reliable connection in your electrical systems with the Pacer Group TAE1/0-38R-10 Tinned Lug, designed for 1/0 AWG wires and 3/8" stud sizes. These closed-end lugs are tin-plated, providing exceptional resistance against corrosion, making them ideal for marine applications. The unique design features no exposed seams, ensuring waterproof connections when paired with epoxy heat shrink. This guarantees that your conductors remain protected from the elements, enhancing the longevity of your connections.
Installation is simple: strip your wire to the appropriate length, slide the lug over the exposed wire until the insulation meets the edge, and then crimp using the right tool. For added durability, consider using epoxy-lined heat shrink. The Pacer Tinned Lugs are compatible with stranded copper wires and are available in various sizes, making them a versatile choice for various applications. Don't hesitate to reach out to a Pacer expert for assistance in selecting the right lug for your needs.
Features:
* Tin Plated for enhanced corrosion resistance: Tin Plated for enhanced corrosion resistance
* No exposed seams for waterproof connections: No exposed seams for waterproof connections
* Rated for 600V for reliable performance: Rated for 600V for reliable performance
* Constructed from seamless tubes of 99.9% copper for superior conductivity: Constructed from seamless tubes of 99.9% copper for superior conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area to improve electrical contact: Larger pad area to improve electrical contact
* Cable size and stud hole clearly stamped on the pad: Cable size and stud hole clearly stamped on the pad
* Compatible with crimping or soldering methods: Compatible with crimping or soldering methods
* Controlled flare for easy cable insertion: Controlled flare for easy cable insertion
* Tight barrel to pad transition for a longer usable barrel length: Tight barrel to pad transition for a longer usable barrel length
