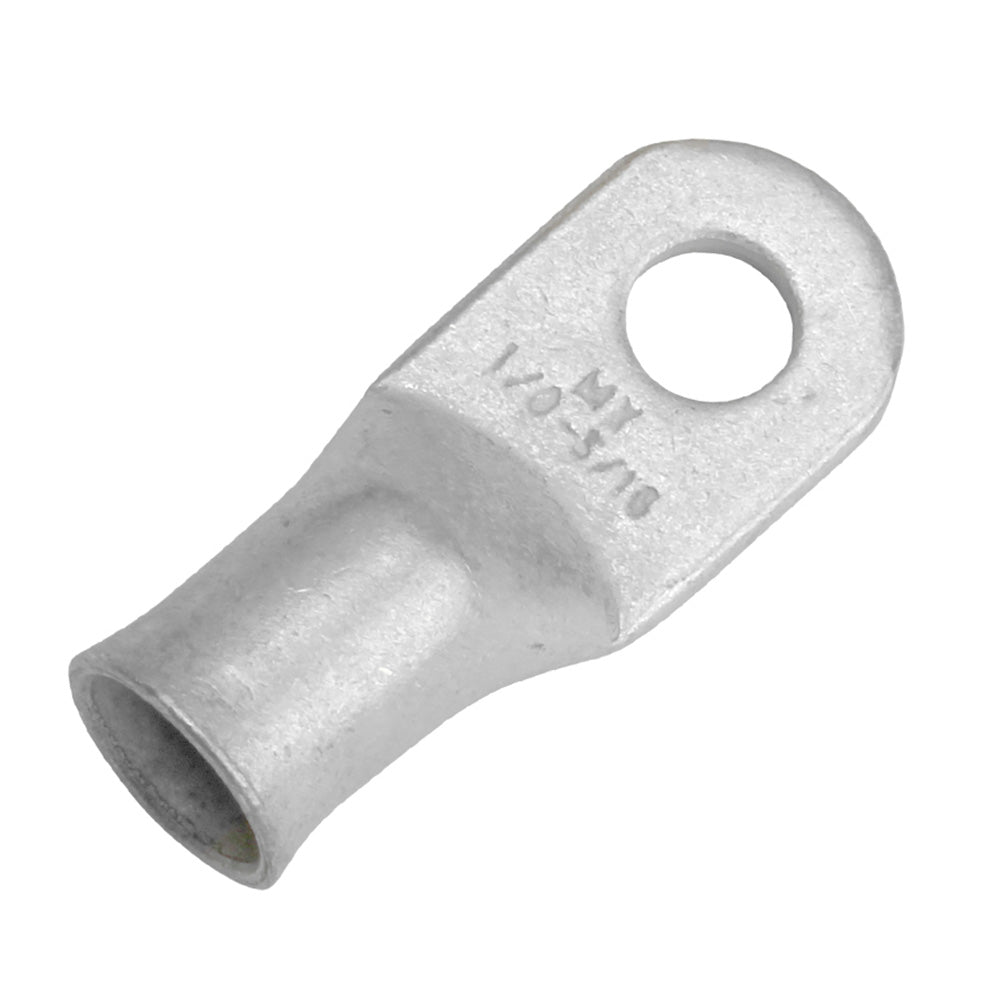

Tinned Lug 1/0 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1/0
- Stud Size: 5/16
- Length: 1.844
- Width: 0.734
- Clearance: 0.406
- Package Size: 10
Ensure a reliable and robust electrical connection with the Pacer Group TAE1/0-56R-10 Tinned Lug, designed for 1/0 AWG wires and a 5/16" stud size. These premium closed-end lugs feature a tin-plated finish that not only enhances durability but also prevents corrosion, making them ideal for marine and harsh environments. With no exposed seams, they can create waterproof connections when used with epoxy heat shrink, ensuring your electrical systems remain protected from the elements.
Designed for ease of use, simply strip your wire to the correct length, insert it into the lug, and crimp it securely. The lug's highly controlled flare allows for straightforward cable insertion, while the tight barrel to pad transition maximizes the usable barrel length. The Pacer Tinned Lug is made from seamless tubes of 99.9% copper for superior conductivity and is rated for up to 600V, making it suitable for various applications. Choose from a range of sizes and configurations to find the perfect fit for your needs.
Features:
* Tin Plated for enhanced durability: Tin Plated for enhanced durability
* No exposed seams for waterproof connections: No exposed seams for waterproof connections
* Rated for 600V for versatile applications: Rated for 600V for versatile applications
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact: Larger pad area for improved contact
* Cable size and stud hole stamped on pad for easy identification: Cable size and stud hole stamped on pad for easy identification
* Can be crimped or soldered for customization: Can be crimped or soldered for customization
* Highly controlled flare allows for easy cable insertion: Highly controlled flare allows for easy cable insertion
* Tight barrel to pad transition provides longer usable barrel length: Tight barrel to pad transition provides longer usable barrel length
