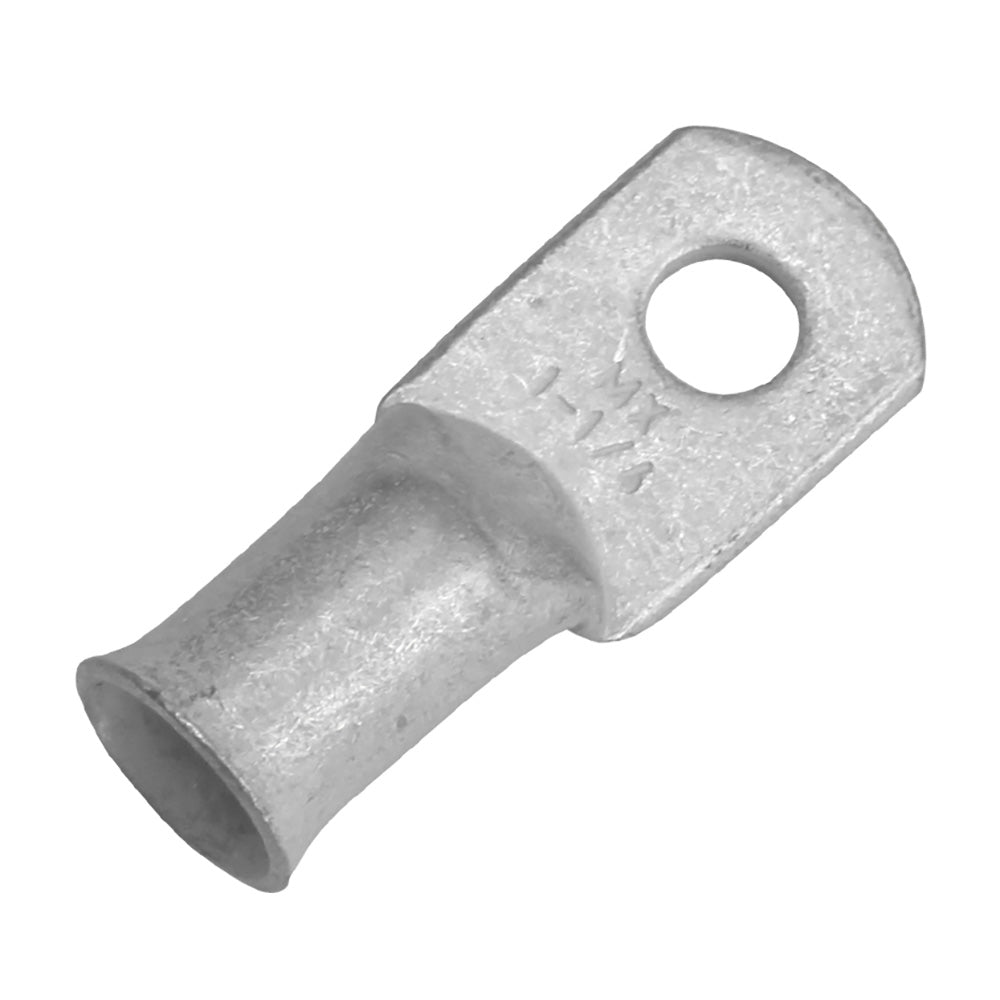

Tinned Lug 1 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1
- Stud Size: 1/4
- Length: 1.719
- Width: 0.692
- Clearance: 0.406
- Package Size: 10
Ensure reliable and long-lasting electrical connections with the Pacer Group TAE1-14R-10 Tinned Lug, designed for 1 AWG wire and 1/4" stud size. These closed-end lugs are constructed from seamless tubes of 99.9% copper, providing superior conductivity and durability. Perfect for marine applications, the tin-plated design features no exposed seams, allowing for waterproof connections when paired with epoxy heat shrink. This enhances the protection of your electrical systems against harsh environmental conditions.
Installation is straightforward; simply strip your wire to the recommended length, slide the lug over the exposed section, and crimp it securely. The lugs also feature a tightly controlled flare for easy cable insertion and a larger pad area for enhanced contact. Available in a convenient 10-pack, these lugs are versatile and compliant with various industry standards, making them a reliable choice for any electrical project.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams for waterproof connections: No exposed seams for waterproof connections
* Rated for 600V for safe electrical use: Rated for 600V for safe electrical use
* Constructed from seamless tubes of 99.9% copper for higher conductivity: Constructed from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact quality: Larger pad area for improved contact quality
* Cable size and stud hole clearly stamped on the pad for easy identification: Cable size and stud hole clearly stamped on the pad for easy identification
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare allows for easy cable insertion: Highly controlled flare allows for easy cable insertion
* Tight barrel to pad transition ensures a longer usable barrel length: Tight barrel to pad transition ensures a longer usable barrel length
