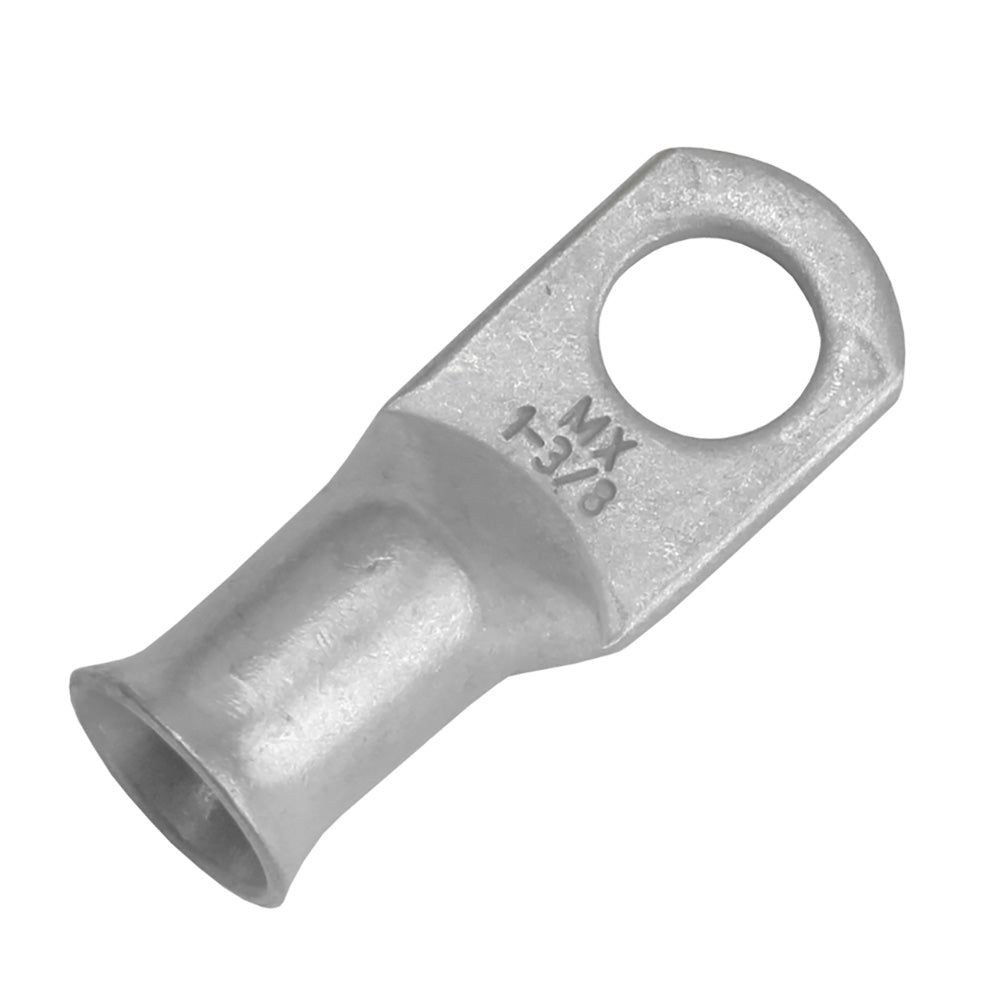

Tinned Lug 1 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1
- Stud Size: 3/8
- Length: 1.719
- Width: 0.692
- Clearance: 0.406
- Package Size: 10
The Pacer Group TAE1-38R-10 Tinned Lug offers a reliable solution for creating strong and durable connections in your electrical systems. Designed specifically for marine applications, these closed-end lugs are tin-plated and feature no exposed seams, ensuring that your connections remain waterproof and resistant to environmental factors. With the capability to be used with epoxy heat shrink, these lugs provide maximum protection and longevity for your projects.
Installation is straightforward: simply strip your wire to the appropriate length, slide the lug over the exposed wire, and crimp it using the correct tool. These lugs are compatible with stranded copper wires and come in a pack of ten, making them a convenient choice for both professionals and DIY enthusiasts alike. For added durability, consider using epoxy lined heat shrink after installation. Reach out to a Pacer expert for guidance on selecting the right closed-end lug for your needs.
Features:
* Tin Plated for enhanced corrosion resistance: Tin Plated for enhanced corrosion resistance
* No exposed seams for improved durability: No exposed seams for improved durability
* Rated for 600V, suitable for various applications: Rated for 600V, suitable for various applications
* Constructed from seamless tubes of 99.9% copper for higher conductivity: Constructed from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for better electrical contact: Larger pad area for better electrical contact
* Cable size and stud hole clearly stamped on the pad: Cable size and stud hole clearly stamped on the pad
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare for easy cable insertion: Highly controlled flare for easy cable insertion
* Tight barrel to pad transition provides a longer usable barrel length: Tight barrel to pad transition provides a longer usable barrel length
