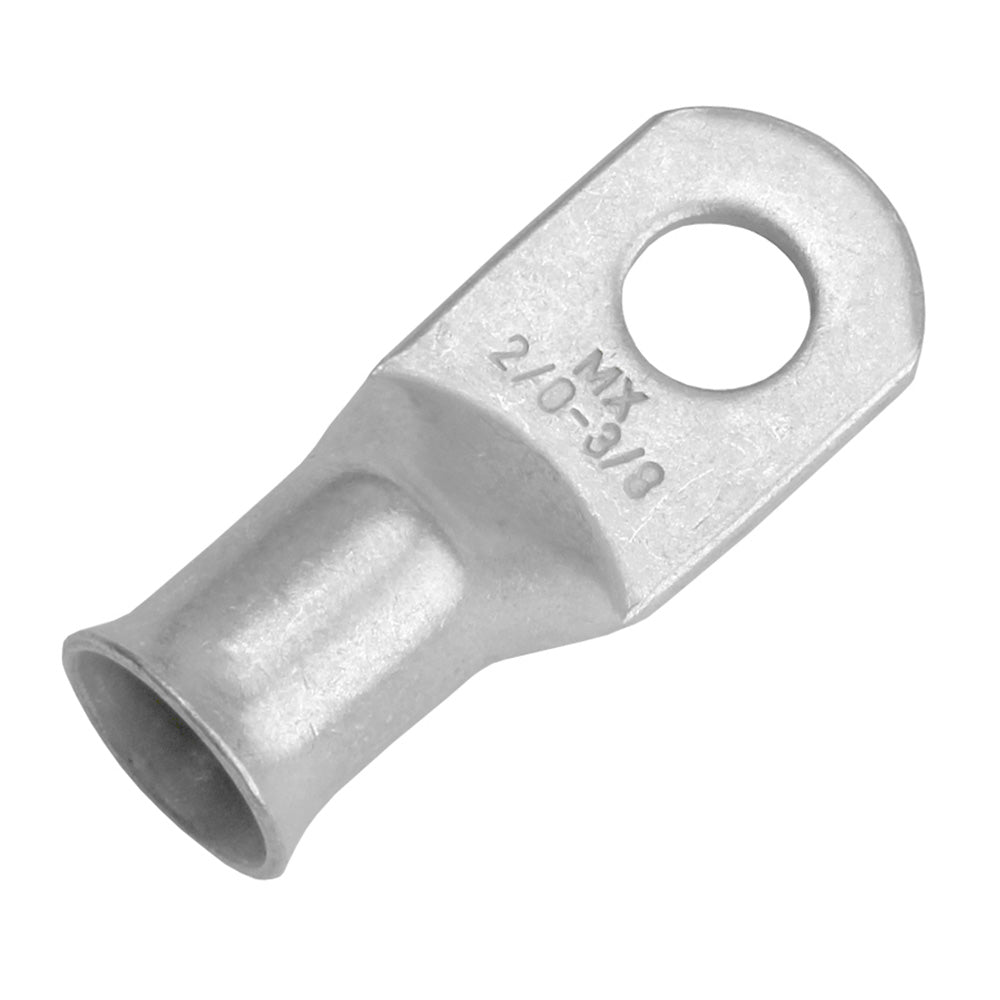

Tinned Lug 2/0 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 2/0
- Stud Size: 3/8
- Length: 2.063
- Width: 0.813
- Clearance: 0.500
- Package Size: 10
Ensure reliable connections in your electrical systems with the Pacer Group TAE2/0-38R-10 Tinned Lug. This pack of 10 closed-end lugs is designed specifically for 2/0 AWG wires and features a 3/8-inch stud size, making it perfect for various applications, especially in marine environments. The tin-plated finish provides exceptional corrosion resistance, while the seamless construction ensures durability and reliability over time.
These closed-end lugs are designed to create waterproof connections when used with epoxy heat shrink. This combination effectively protects the conductor from environmental elements. The larger pad area allows for better contact, and the lug can be crimped or soldered for added versatility. With an easy cable insertion thanks to a highly controlled flare, these lugs are user-friendly and efficient.
Pacer's lugs are compliant with multiple standards, ensuring quality and safety in your electrical projects. From their high conductivity copper material to the no exposed seams design, the Pacer Group TAE2/0-38R-10 Tinned Lugs are an excellent choice for anyone looking to enhance their electrical connections with reliability and ease.
Features:
* Tin plated for excellent corrosion resistance: Tin plated for excellent corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V for versatile applications: Rated for 600V for versatile applications
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact quality: Larger pad area for improved contact quality
* Cable size and stud hole stamped on pad for easy identification: Cable size and stud hole stamped on pad for easy identification
* Can be crimped or soldered for flexibility in installation: Can be crimped or soldered for flexibility in installation
* Highly controlled flare to allow easy cable insertion: Highly controlled flare to allow easy cable insertion
* Tight barrel to pad transition for longer usable barrel length: Tight barrel to pad transition for longer usable barrel length
