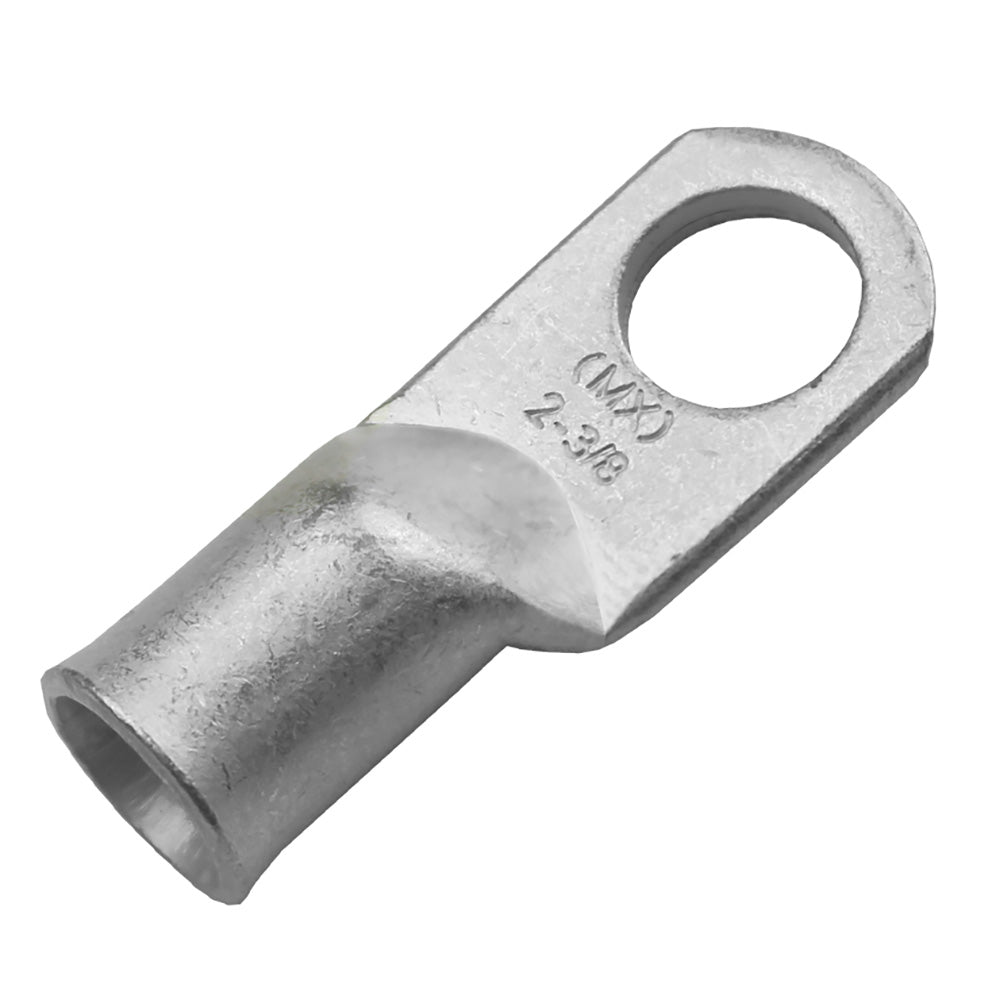

Tinned Lug 2 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 2
- Stud Size: 3/8
- Length: 1.625
- Width: 0.609
- Clearance: 0.406
- Package Size: 10
Ensure reliable and long-lasting connections with the Pacer Group TAE2-38R-10 Tinned Lug, designed for 2 AWG cables with a 3/8" stud size. These closed-end lugs are perfect for marine applications, offering a waterproof solution that protects against the elements. Crafted from seamless tubes of 99.9% copper, they deliver superior conductivity and durability, ensuring your electrical systems operate efficiently.
The Pacer Tinned Lugs feature a tight barrel-to-pad transition allowing for a longer usable barrel length, making cable insertion easy and effective. With no exposed seams and tin plating, these lugs are built to withstand harsh conditions. Simply strip your wire to the appropriate length, slide the lug onto the conductor, and crimp securely. For added durability, consider using epoxy-lined heat shrink tubing.
When it comes to selecting the right closed-end lug, Pacer experts are available to assist you. Trust in Pacer Group*s commitment to quality and performance with these reliable tinned lugs, available in various sizes to suit your needs.
Features:
* Tin Plated for durability: Tin Plated for durability
* No exposed seams for added safety: No exposed seams for added safety
* Rated for 600V for reliable performance: Rated for 600V for reliable performance
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact: Larger pad area for improved contact
* Cable size and stud hole clearly stamped on pad: Cable size and stud hole clearly stamped on pad
* Can be crimped or soldered for versatility: Can be crimped or soldered for versatility
* Highly controlled flare to facilitate easy cable insertion: Highly controlled flare to facilitate easy cable insertion
* Tight barrel-to-pad transition for longer usable barrel length: Tight barrel-to-pad transition for longer usable barrel length
