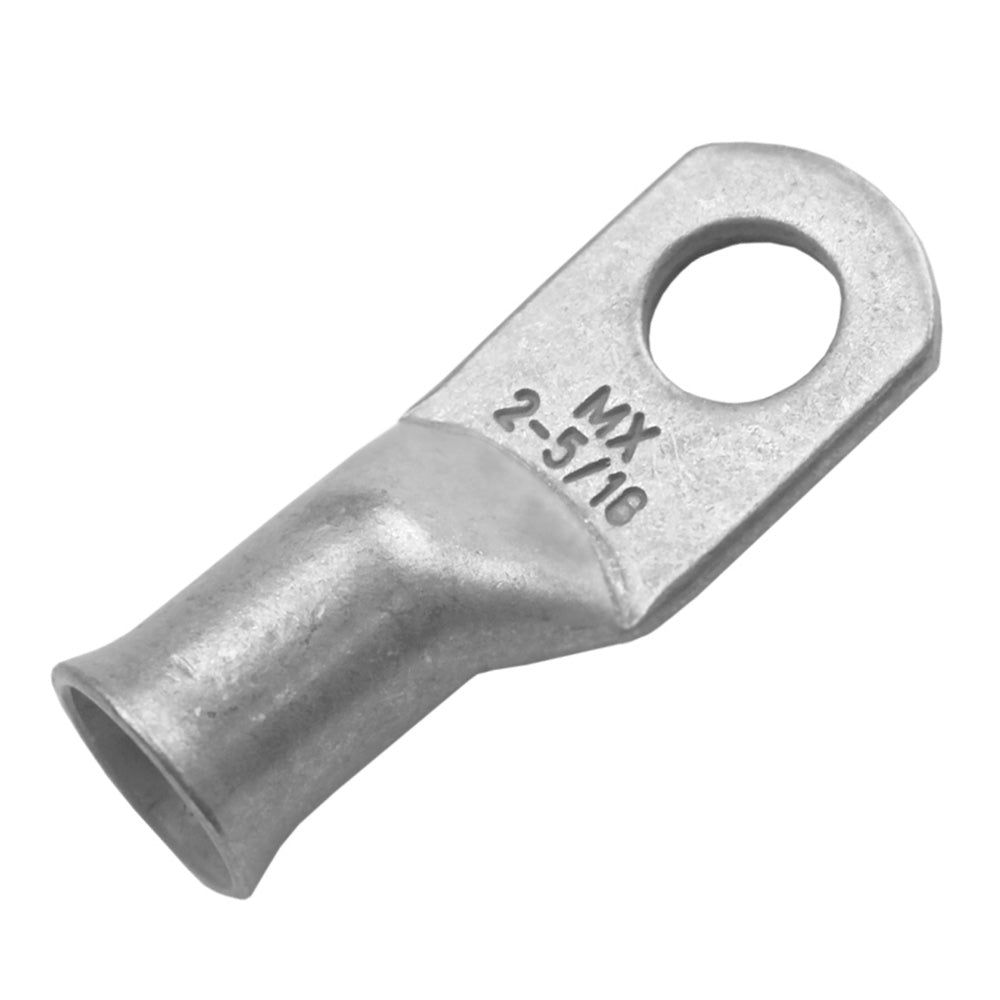

Tinned Lug 2 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 2
- Stud Size: 5/16
- Length: 1.625
- Width: 0.609
- Clearance: 0.406
- Package Size: 10
Ensure a reliable electrical connection with the Pacer Group TAE2-56R-10 Tinned Lug. Designed to accommodate 2 AWG wires and a 5/16-inch stud, these closed-end lugs provide exceptional durability and longevity, making them an ideal choice for various applications, including marine environments. The tin-plated finish prevents corrosion and ensures a waterproof seal when used with epoxy heat shrink, safeguarding your connections from the elements. Simply strip your wire, slide on the lug, crimp securely, and you're ready to go!
These lugs are constructed from seamless tubes of 99.9% copper for superior conductivity and are rated for 600V. The larger pad area enhances contact, while the highly controlled flare allows for easy cable insertion. Each lug is designed for stranded copper wires and can be crimped or soldered for secure connections. With a pack of ten, you'll have plenty on hand for all your projects. Trust Pacer for quality electrical connections that meet and exceed industry standards.
Features:
* Tin Plated for corrosion resistance: Tin Plated for corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V to ensure safety: Rated for 600V to ensure safety
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact quality: Larger pad area for improved contact quality
* Cable size and stud hole stamped on pad for easy identification: Cable size and stud hole stamped on pad for easy identification
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare allows easy cable insertion: Highly controlled flare allows easy cable insertion
* Tight barrel to pad transition provides longer usable barrel length: Tight barrel to pad transition provides longer usable barrel length
