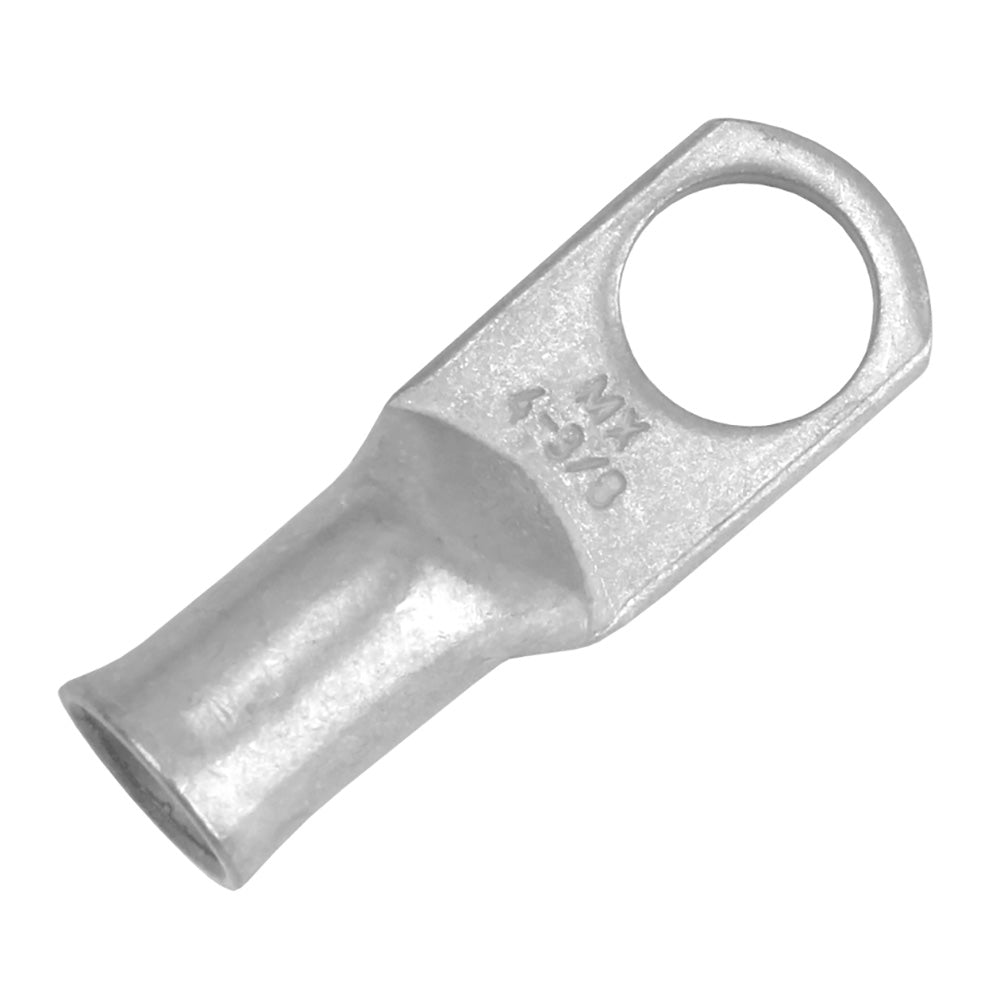

Tinned Lug 4 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 4
- Stud Size: 3/8
- Length: 1.688
- Width: 0.531
- Clearance: 0.406
- Package Size: 10
Discover the reliability of the Pacer Group TAE4-38R-10 Tinned Lug, expertly designed for 4 AWG wires with a 3/8" stud size. These closed-end lugs provide exceptional durability and are perfect for marine applications, ensuring that your electrical connections remain protected from the elements. Made from 99.9% copper, these tin-plated lugs boast no exposed seams, allowing for waterproof connections when paired with epoxy heat shrink. Simply strip your wire, crimp the lug, and you*re ready for reliable performance.
Pacer's Tinned Lugs are engineered for both stranded copper wires and easy application. With a larger pad area for better contact and a highly controlled flare for effortless cable insertion, these lugs are versatile and user-friendly. Whether you need to crimp or solder, the Pacer Group TAE4-38R-10 ensures a long-lasting connection with its tight barrel to pad transition. Trust Pacer Group for all your electrical connection needs and reach out to their experts for guidance on selecting the right closed-end lug for your project.
Features:
* Tin Plated for enhanced corrosion resistance: Tin Plated for enhanced corrosion resistance
* No exposed seams for increased durability: No exposed seams for increased durability
* Rated for 600V for versatile applications: Rated for 600V for versatile applications
* Constructed from seamless tubes of 99.9% copper for higher conductivity: Constructed from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved electrical contact: Larger pad area for improved electrical contact
* Cable size and stud hole clearly stamped on pad for easy identification: Cable size and stud hole clearly stamped on pad for easy identification
* Can be crimped or soldered for flexibility in installation: Can be crimped or soldered for flexibility in installation
* Highly controlled flare to facilitate easy cable insertion: Highly controlled flare to facilitate easy cable insertion
* Tight barrel to pad transition for longer usable barrel length: Tight barrel to pad transition for longer usable barrel length
