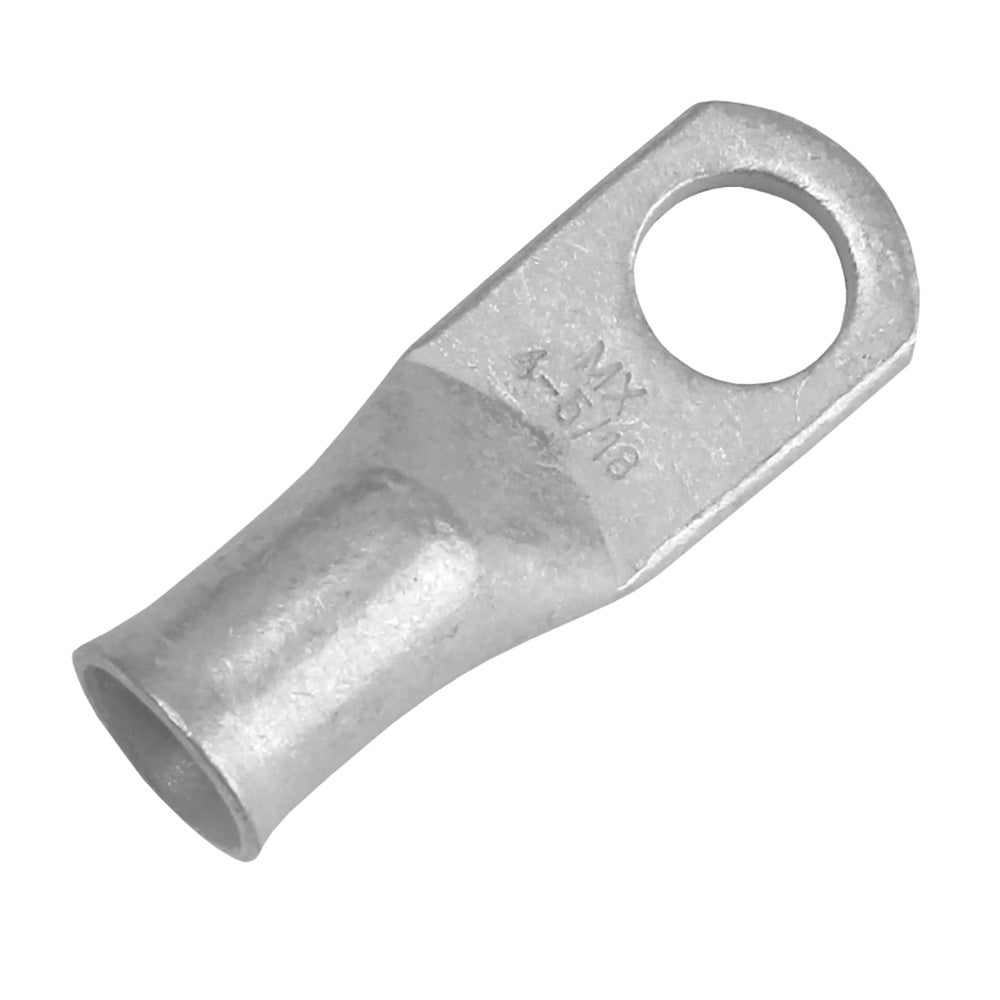

Tinned Lug 4 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 4
- Stud Size: 5/16
- Length: 1.50
- Width: 0.531
- Clearance: 0.406
- Package Size: 10
Ensure reliable and long-lasting connections with the Pacer Group TAE4-56R-10 Tinned Lug. Designed specifically for 4 AWG stranded copper wires, these lugs feature a 5/16" stud size, making them perfect for various electrical applications, particularly in marine environments where durability and waterproofing are essential. The tin-plated construction guarantees resistance to corrosion and ensures that your connections remain strong over time.
The closed-end design of these lugs means there are no exposed seams, offering added safety and longevity. For enhanced protection against environmental factors, pair them with epoxy heat shrink tubing to fully envelop the conductor. Easy to install, simply strip your wire, slide the lug over the exposed section, and crimp it in place. With Pacer*s extensive range of sizes, you can find the perfect fit for your needs. Contact a Pacer expert today for any assistance in selecting the right closed-end lug for your project.
Features:
* Tin Plated for corrosion resistance: Tin Plated for corrosion resistance
* No exposed seams for enhanced safety: No exposed seams for enhanced safety
* Rated for 600V to handle a variety of applications: Rated for 600V to handle a variety of applications
* Constructed from seamless tubes of 99.9% copper for superior conductivity: Constructed from seamless tubes of 99.9% copper for superior conductivity
* Designed specifically for stranded copper wires to ensure effective performance: Designed specifically for stranded copper wires to ensure effective performance
* Larger pad area for improved electrical contact: Larger pad area for improved electrical contact
* Cable size and stud hole information stamped for easy identification: Cable size and stud hole information stamped for easy identification
* Versatile installation options: can be crimped or soldered: Versatile installation options: can be crimped or soldered
* Highly controlled flare for effortless cable insertion: Highly controlled flare for effortless cable insertion
* Tight barrel to pad transition for extended usable barrel length: Tight barrel to pad transition for extended usable barrel length
