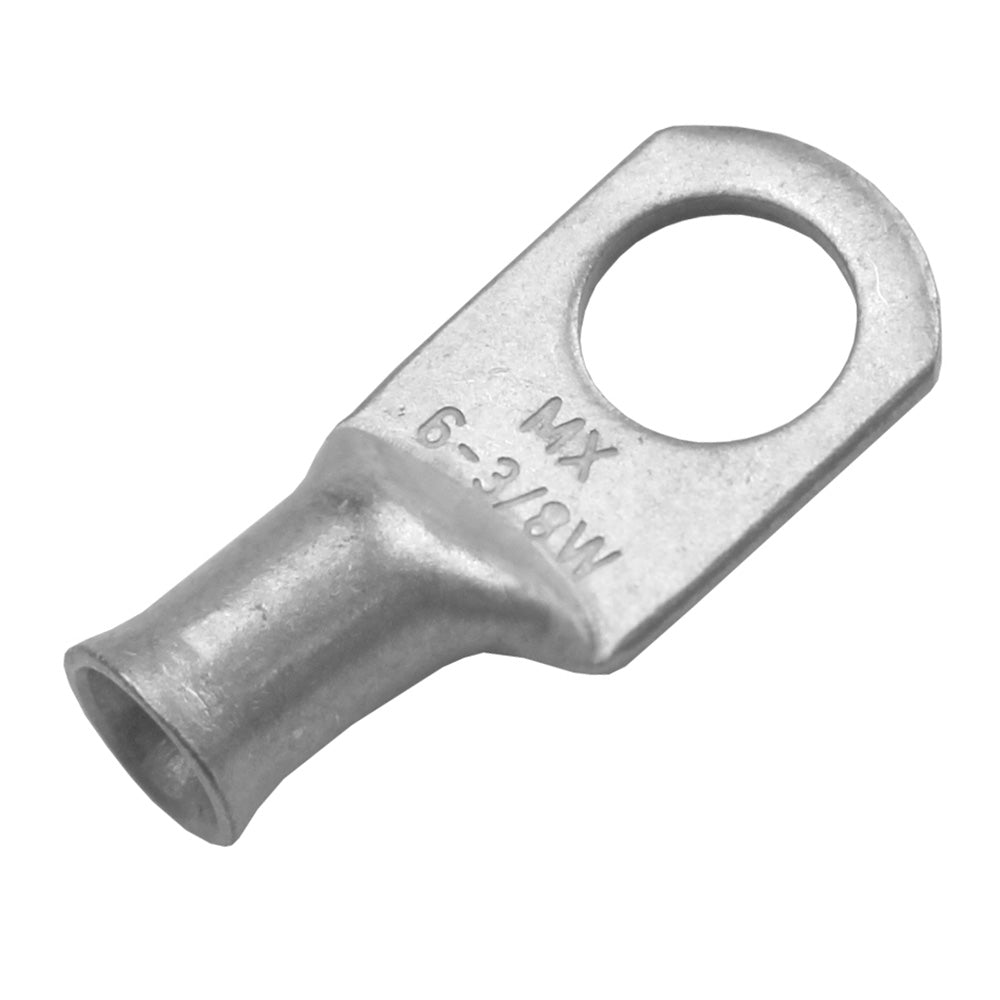

Tinned Lug 6 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 6
- Stud Size: 3/8
- Length: 1.406
- Width: 0.609
- Clearance: 0.406
- Package Size: 10
The Pacer Group TAE6-38R-10 Tinned Lug is designed to create robust and reliable connections in your electrical systems. With a 6 AWG wire size and a 3/8" stud size, this 10-pack of tinned lugs is perfect for various applications, particularly in marine environments. The closed-end design ensures no exposed seams, providing durability and longevity while enabling waterproof connections when used with epoxy heat shrink.
These tinned lugs are made from seamless tubes of 99.9% copper, ensuring higher conductivity and reliability. They are specifically designed for stranded copper wires, featuring a larger pad area for better contact and a highly controlled flare for easy cable insertion. Whether you choose to crimp or solder, the Pacer Tinned Lug guarantees a solid connection that stands the test of time. Reach out to a Pacer expert for assistance in selecting the right closed-end lug for your needs.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V applications: Rated for 600V applications
* Constructed from seamless tubes of 99.9% copper for superior conductivity: Constructed from seamless tubes of 99.9% copper for superior conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved electrical contact: Larger pad area for improved electrical contact
* Cable size and stud hole clearly stamped on the pad: Cable size and stud hole clearly stamped on the pad
* Can be easily crimped or soldered for versatile use: Can be easily crimped or soldered for versatile use
* Controlled flare allows for easy cable insertion: Controlled flare allows for easy cable insertion
* Tight barrel-to-pad transition for longer usable barrel length: Tight barrel-to-pad transition for longer usable barrel length
