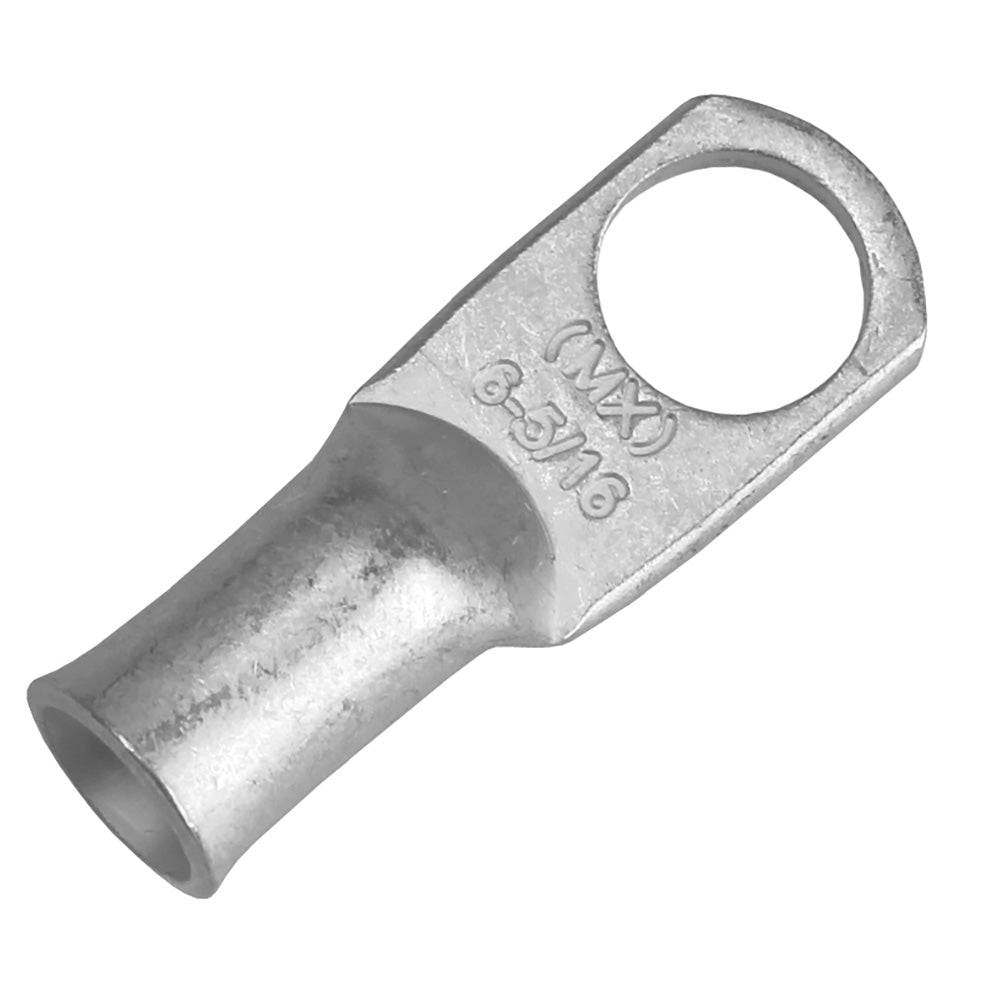

Tinned Lug 6 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 6
- Stud Size: 5/16
- Length: 1.266
- Width: 0.438
- Clearance: 0.344
- Package Size: 10
Upgrade your electrical connections with the Pacer Group TAE6-56R-10 Tinned Lug, designed for 6 AWG wires and featuring a durable 5/16" stud size. These closed-end lugs are tin-plated, ensuring they resist corrosion and provide longevity in marine applications. Their seamless design eliminates exposed seams, making them ideal for creating waterproof connections when used with epoxy heat shrink tubing. Simply strip your wire to the appropriate length, slide the lug over the exposed wire, and crimp securely for a reliable connection.
Crafted from 99.9% copper, these lugs offer superior conductivity and are rated for 600V, making them perfect for a variety of electrical systems. With a larger pad area for better contact and the ability to be crimped or soldered, the Pacer Tinned Lugs are versatile and easy to use. Whether you're working on a marine project or any electrical installation, trust Pacer Group for high-quality components that meet rigorous standards.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V to ensure safety and reliability: Rated for 600V to ensure safety and reliability
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved electrical contact: Larger pad area for improved electrical contact
* Cable size and stud hole stamped on pad for easy identification: Cable size and stud hole stamped on pad for easy identification
* Flexible installation options: can be crimped or soldered: Flexible installation options: can be crimped or soldered
* Highly controlled flare for easy cable insertion: Highly controlled flare for easy cable insertion
* Tight barrel to pad transition for longer usable barrel length: Tight barrel to pad transition for longer usable barrel length
