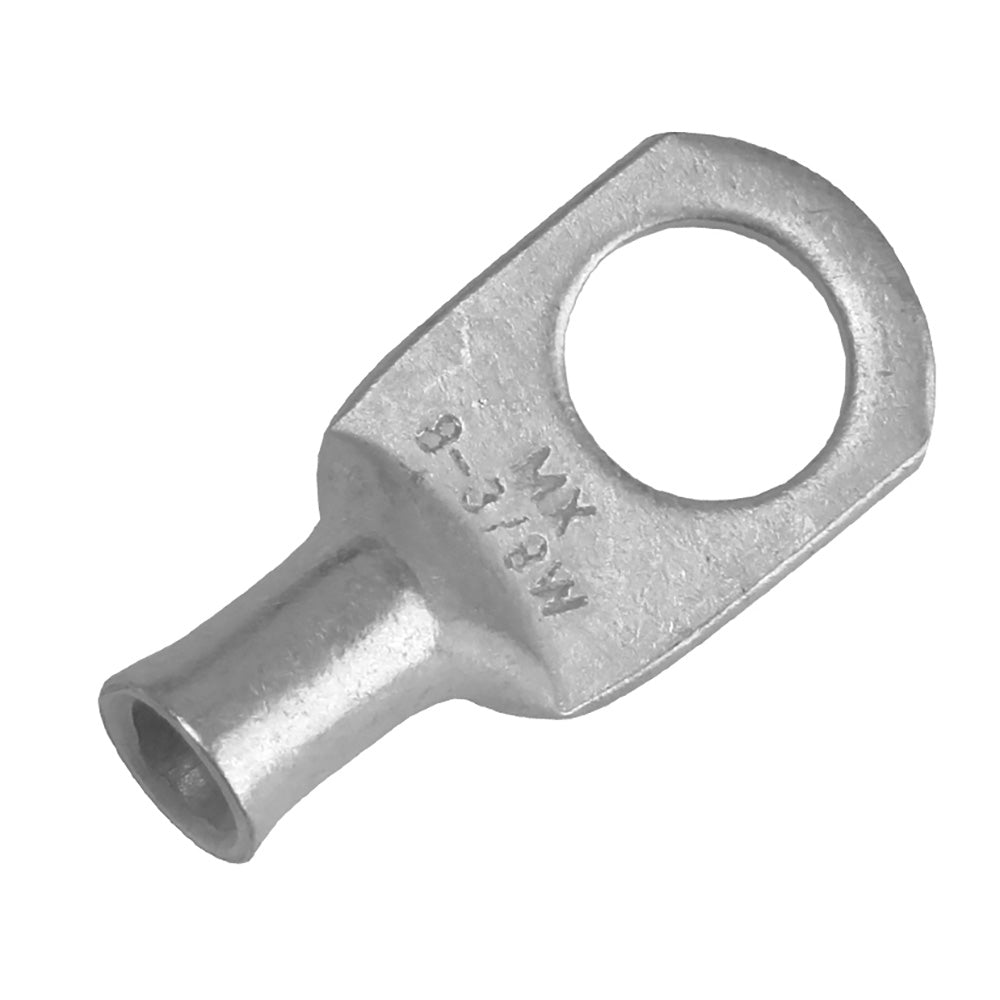

Tinned Lug 8 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 8
- Stud Size: 3/8
- Length: 1.344
- Width: 0.609
- Clearance: 0.406
- Package Size: 10
Ensure reliable and durable electrical connections with the Pacer Group TAE8-38R-10 Tinned Lug. Designed for 8 AWG wires and featuring a 3/8" stud size, these closed-end lugs are perfect for demanding marine applications. The tin-plated finish and seamless construction provide enhanced resistance to corrosion, making them ideal for environments where moisture can be a concern. When paired with epoxy heat shrink, they create waterproof connections that protect your wiring from the elements.
Installation is simple: strip your wire to the correct length, slide the lug over the exposed conductor, and crimp it securely. With a larger pad area for better contact and a highly controlled flare for easy cable insertion, you can be confident in the strength and reliability of your connections. Available in packs of ten, the Pacer Tinned Lugs are an essential component for any electrical project requiring high conductivity and durability.
Features:
* Tin Plated for enhanced corrosion resistance: Tin Plated for enhanced corrosion resistance
* No exposed seams to ensure longevity: No exposed seams to ensure longevity
* Rated for 600V to handle high voltage applications: Rated for 600V to handle high voltage applications
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved electrical contact: Larger pad area for improved electrical contact
* Cable size and stud hole stamped on the pad for easy identification: Cable size and stud hole stamped on the pad for easy identification
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare allows for easy cable insertion: Highly controlled flare allows for easy cable insertion
* Tight barrel to pad transition provides longer usable barrel length: Tight barrel to pad transition provides longer usable barrel length
