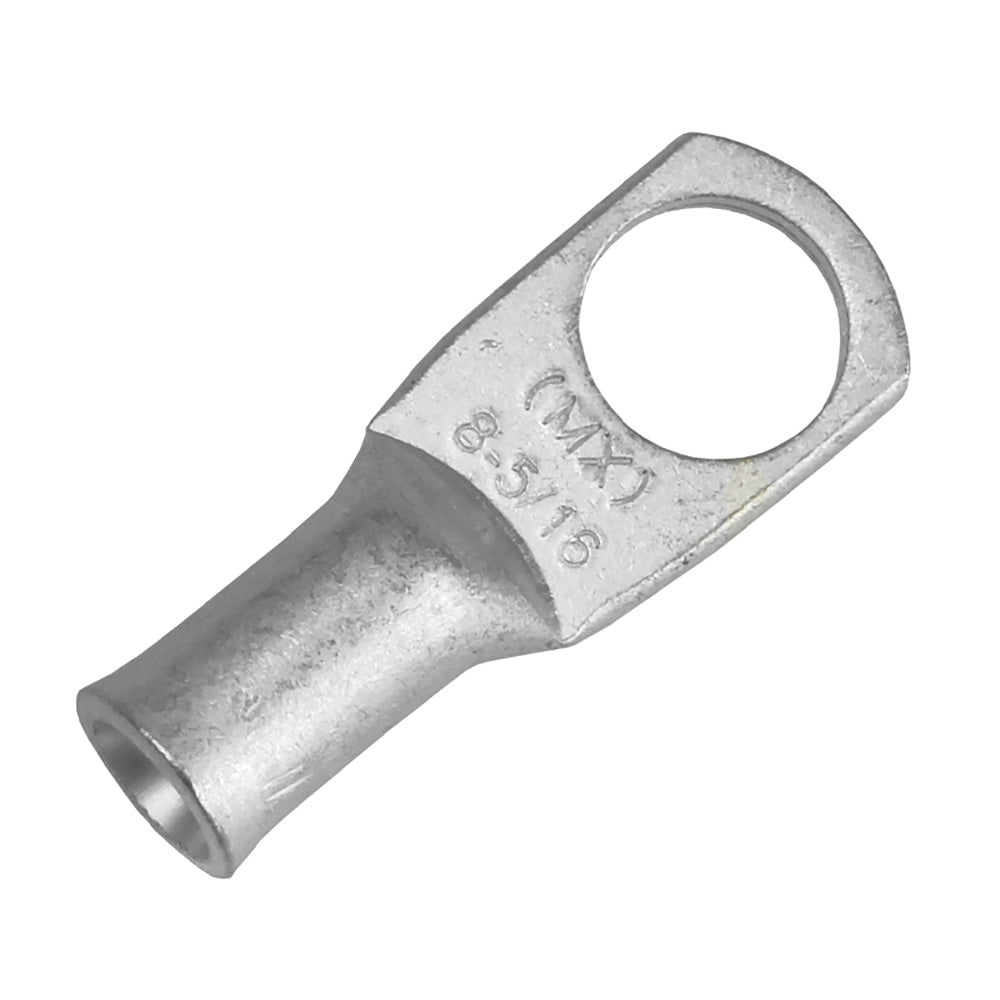

Tinned Lug 8 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed-end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy-lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 8
- Stud Size: 5/16
- Length: 1.187
- Width: 0.438
- Clearance: 0.344
- Package Size: 10
Ensure a reliable electrical connection with the Pacer Group TAE8-56R-10 Tinned Lug. Designed for 8 AWG wire and featuring a 5/16" stud size, this pack of 10 closed-end lugs offers durability and longevity, making them perfect for a variety of applications, including marine environments. With tin plating and no exposed seams, these lugs are capable of creating waterproof connections when used with epoxy heat shrink, ensuring that your wiring remains protected against the elements.
Installation is straightforward; simply strip your wire to the appropriate length, slide the lug onto the exposed wire, and crimp securely. The larger pad area allows for better contact, while the highly controlled flare ensures easy cable insertion. Pacer*s closed-end lugs are made from seamless tubes of 99.9% copper, providing superior conductivity and reliability. Trust Pacer Group for high-quality electrical connections that meet rigorous standards.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams to prevent moisture ingress: No exposed seams to prevent moisture ingress
* Rated for 600V for versatile applications: Rated for 600V for versatile applications
* Constructed from seamless tubes of 99.9% copper for higher conductivity: Constructed from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for improved contact and connectivity: Larger pad area for improved contact and connectivity
* Clear cable size and stud hole stamped on the pad for easy identification: Clear cable size and stud hole stamped on the pad for easy identification
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare allows for easy cable insertion: Highly controlled flare allows for easy cable insertion
* Tight barrel to pad transition provides a longer usable barrel length: Tight barrel to pad transition provides a longer usable barrel length
