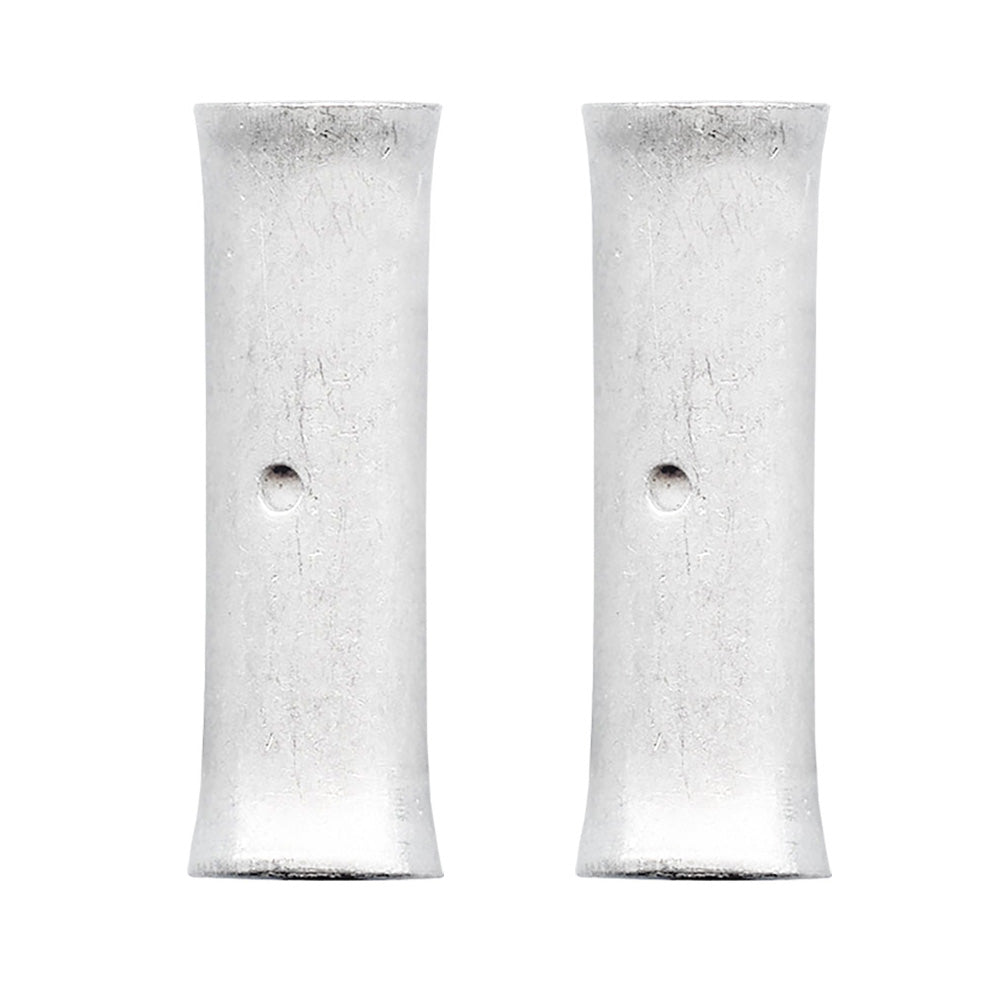

Seamless Butt Splice - 6 AWG - Non-Insulated - 10 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
- Package Size: 10
- Wire AWG: 6
- Length: 1.045
- I.D. (in.): 0.230
- O.D. (in.): 0.374
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
Discover the reliability of the Pacer Group TBS6-10 Seamless Butt Splice, designed for 6 AWG connections. This non-insulated butt splice is perfect for creating or repairing long-term electrical connections with ease. Crafted from high-quality tinned copper, these splices ensure optimal conductivity and durability for your wiring needs.
Using the Pacer seamless butt splices is straightforward. Start by cutting and stripping your wires to the correct length. Insert the wire into the splice until it reaches the indentation, then crimp securely using the proper tool. This process guarantees a solid connection that can withstand the test of time. After crimping, perform a tug test to ensure that your connection is robust and reliable. These butt splices are perfect for quick installations, providing peace of mind with their dependable performance.
Features:
* Tin Plated for superior conductivity and durability: Tin Plated for superior conductivity and durability
* Seamless design for a strong, reliable connection: Seamless design for a strong, reliable connection
