Seamless Butt Splice - 8 AWG - Non-Insulated - 10 Pack
Butt splices are a simple way to repair or create a long-term electrical connection. They are easy to use and built for longevity. Seamless tinned butt splices are available in non-insulated only. How do you use seamless tinned butt splices The first thing to do is cut and strip your wires to the proper length. Now, if you look inside the butt splice you will see there is an indentation. Insert your wire into the butt splice making sure it butts up to the indentation. Next, simply crimp using the proper tool. This guarantees the correct amount of pressure ensuring a solid connection. Now, simply repeat the process on the other side and youre done. Pacer would strongly recommend performing the tug test. This test ensures that the connection is solid. To do the test simply grab both wires coming out of the butt splice and gently tug two or three times.
When using seamless tinned butt splices, make sure you have properly stripped your wires to the correct length. When you look inside of the butt splice, you will see an indentation. Make sure your conductors butt up against that. Insert the wire making sure the insulation touches the butt splice. This reduces the risk of a weaker connection. Now, the splice is crimped with the proper tool. This crimp creates a solid connection. Next, repeat the process on the other side and perform the tug test to make sure that the wires dont pull out. This process creates a durable, lasting connection. Butt splices are used for their rapid installation and durability. Other methods of connection just dont offer the same level of protection.
Features:
Specifications:
- Package Size: 10
- Wire AWG: 8
- Length: 0.864
- I.D. (in.): 0.165
- O.D. (in.): 0.295
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant

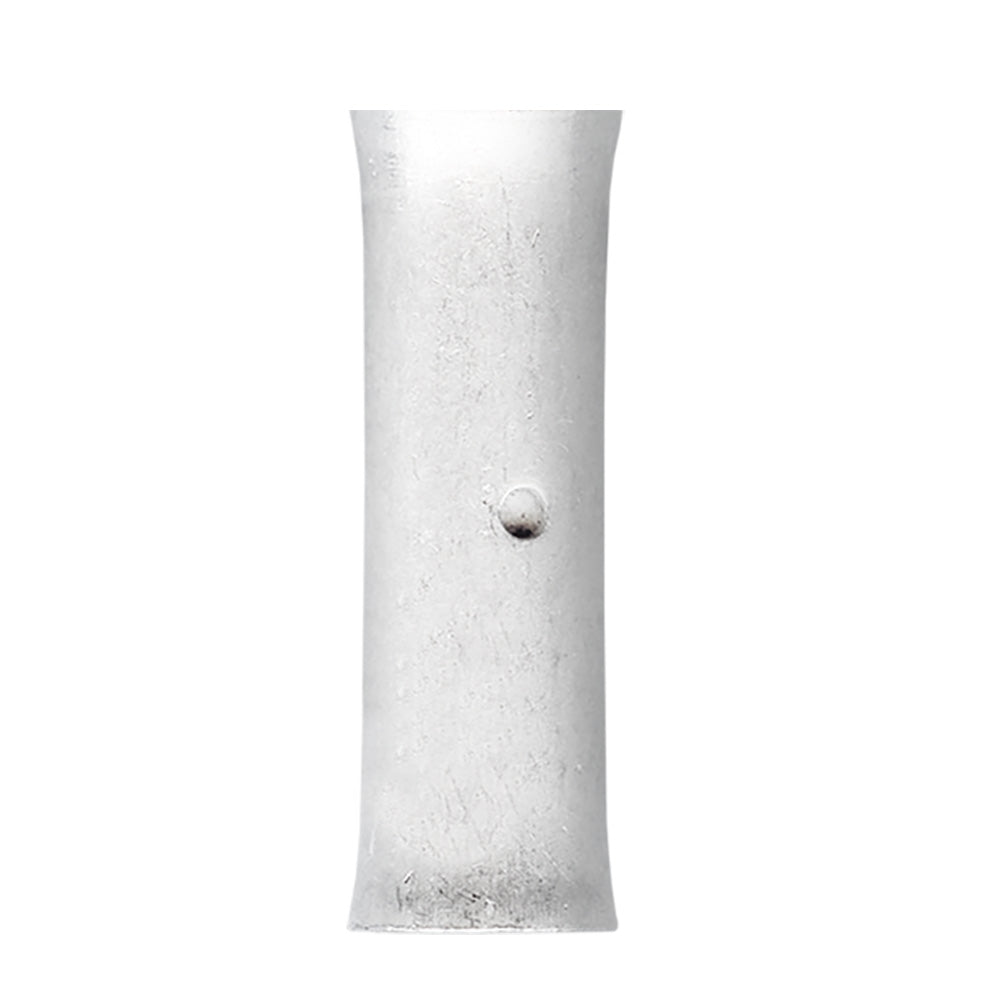

The Pacer Group TBS8-10 Seamless Butt Splice is an essential component for anyone looking to establish reliable electrical connections. Designed specifically for 8 AWG wires, this non-insulated butt splice offers a straightforward solution for both repairs and new installations. Its seamless, tin-plated construction enhances durability and conductivity, ensuring that your connections remain secure over time.
Using these butt splices is simple and efficient. Just cut and strip your wires to the appropriate length, insert them into the splice until they reach the indentation, and crimp with the right tool for a solid connection. Performing a tug test afterwards guarantees that the connection is robust and reliable. With a package containing 10 butt splices, you can tackle multiple wiring tasks with confidence, knowing each splice is designed for rapid installation and lasting performance.
Features:
* Tin Plated for enhanced conductivity: Tin Plated for enhanced conductivity
* Seamless design for improved strength and reliability: Seamless design for improved strength and reliability
