Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.
Features:
Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)
Applications:
Wire-to-wire applications
Enclosed connectors offer field-proven reliability and rugged quality
Characteristics:
Wedgelocks ensure contact alignment and retention
Redundant Silicone Seals
Hand-insertable and removable contacts
Compliances:
Ingress Protection (IP) Level: IP67
EU RoHS/ELV
Standard UL-94 Recognized
Specifications:
Number of Cavities: 12
Cavity Style: Receptacle (Pin)
Package Size: 5
Housing: Rectangular Receptacle, Plastic reinforced with glass fiber
Contact Size: 16 (13 Amp)
Wire Size: 20-14 AWG
Operating Temperature: -55C to 125C

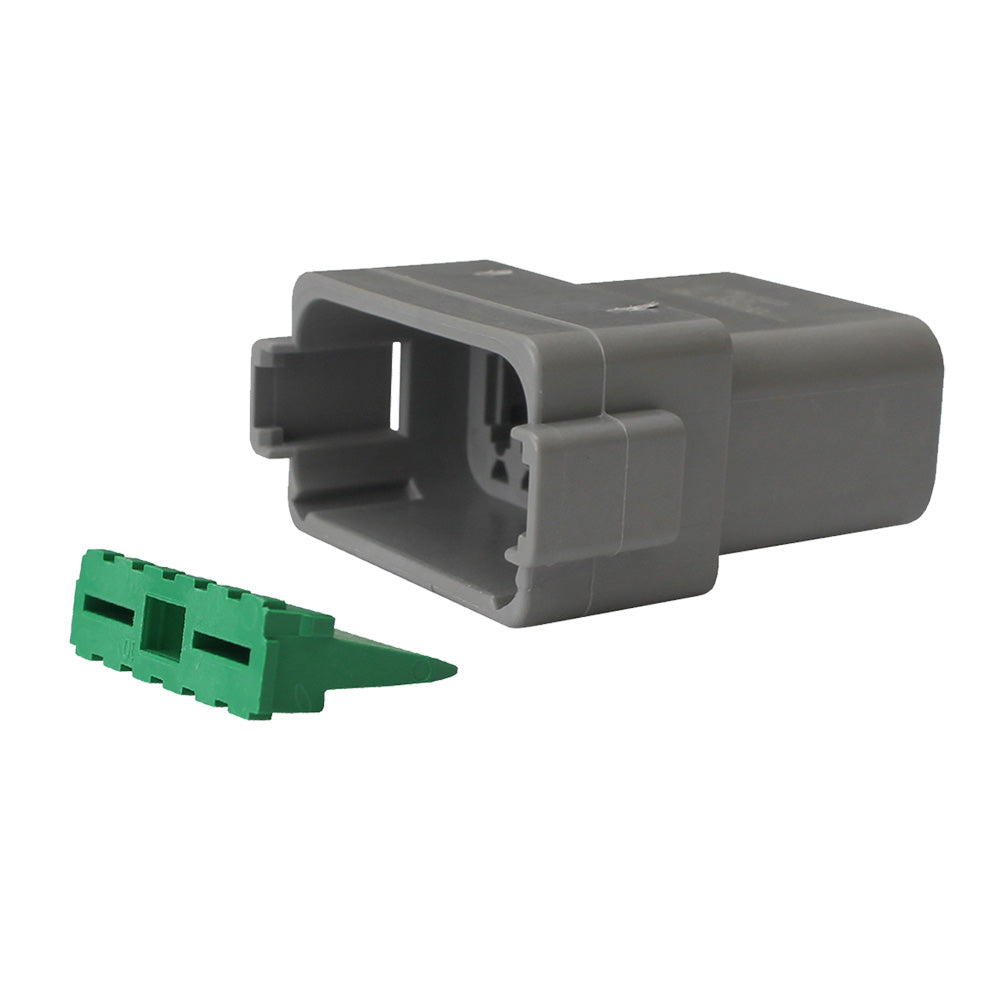

The Pacer Group TDT04-12P-5 Deutsch DT Receptacle & Wedge Lock Kit offers a robust solution for protecting your electrical connections. Designed for 20-14 AWG applications, these connectors create environmentally sealed connections that are waterproof and resistant to vibration and shock, ensuring durability in challenging conditions. Ideal for field use, the kit includes 5 pieces of housing and 5 pieces of wedge locks, providing everything you need for reliable wire-to-wire applications.
Each kit features wedgelocks that ensure proper contact alignment and retention, along with redundant silicone seals to enhance protection. The hand-insertable and removable contacts make installation and maintenance straightforward. With a proven IP67 ingress protection rating, you can trust that the Pacer Group Deutsch DT Receptacle & Wedge Lock Kit will stand up to the rigors of demanding environments. Whether you are undertaking automotive, marine, or industrial projects, this kit has you covered.
Features: * Kits include housing and wedge locks to create a secure connection: Kits include housing and wedge locks to create a secure connection
* Designed for wire-to-wire applications with proven reliability: Designed for wire-to-wire applications with proven reliability
* Wedgelocks ensure precise contact alignment and retention: Wedgelocks ensure precise contact alignment and retention
* Redundant silicone seals for enhanced waterproofing: Redundant silicone seals for enhanced waterproofing
* Hand-insertable and removable contacts for easy installation: Hand-insertable and removable contacts for easy installation
