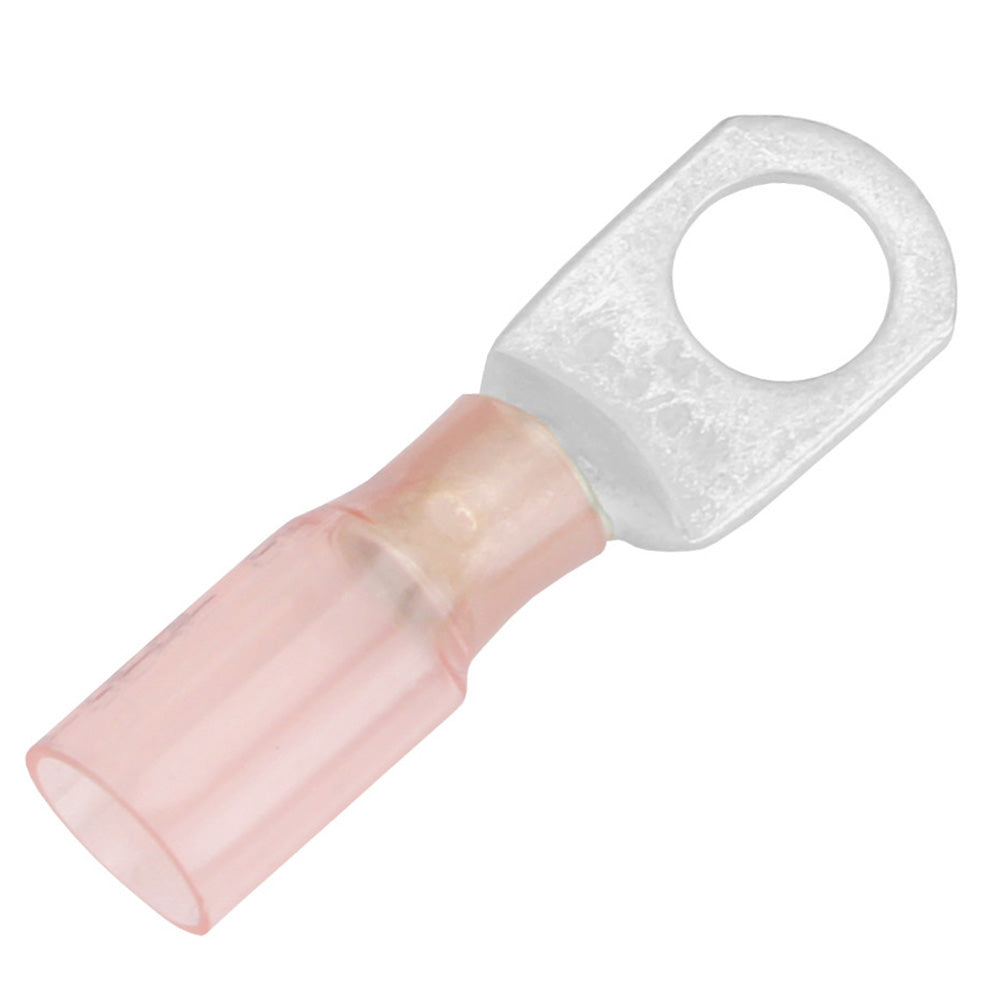

8 AWG Heat Shrink Ring Terminal - 3/8 Stud Size - 25 Pack
Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
- Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
- Conforms to automotive manufacturers specifications for wiring repairs
- Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
Compliances:
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 C
- Operating Temp: -55 C - 125 C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- Stud Size: 3/8
- Terminal Pad Width: 0.59
- Package Size: 25
The Pacer Group TE8-38R-25 8 AWG Heat Shrink Ring Terminal is engineered for durability and reliability in electrical connections. Designed specifically for 8 AWG wires, these terminals ensure a secure fit over studs or screws, eliminating the risk of disconnection during use. The unique heat shrink design features an adhesive liner that activates with heat to provide a robust, moisture-proof seal, making them ideal for harsh environments.
These heat shrink ring terminals not only safeguard against water, corrosion, and vibration but also offer strain relief for enhanced longevity. With a translucent polyolefin tubing, identifying the correct terminal is easy thanks to its color-coded design and wire gauge imprint. Whether you're working on automotive repairs or other wiring projects, the Pacer Group TE8-38R-25 terminals are compliant with industry standards including UL, CSA, and RoHS, ensuring a safe and effective solution for your wiring needs.
Features:
* Protects terminations from water, condensation, salt spray, and corrosion: Protects terminations from water, condensation, salt spray, and corrosion
* Added vibration protection in rugged environments: Added vibration protection in rugged environments
* Provides strain relief: Provides strain relief
* Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion: Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
* Conforms to automotive manufacturers specifications for wiring repairs: Conforms to automotive manufacturers specifications for wiring repairs
* Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job: Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job
