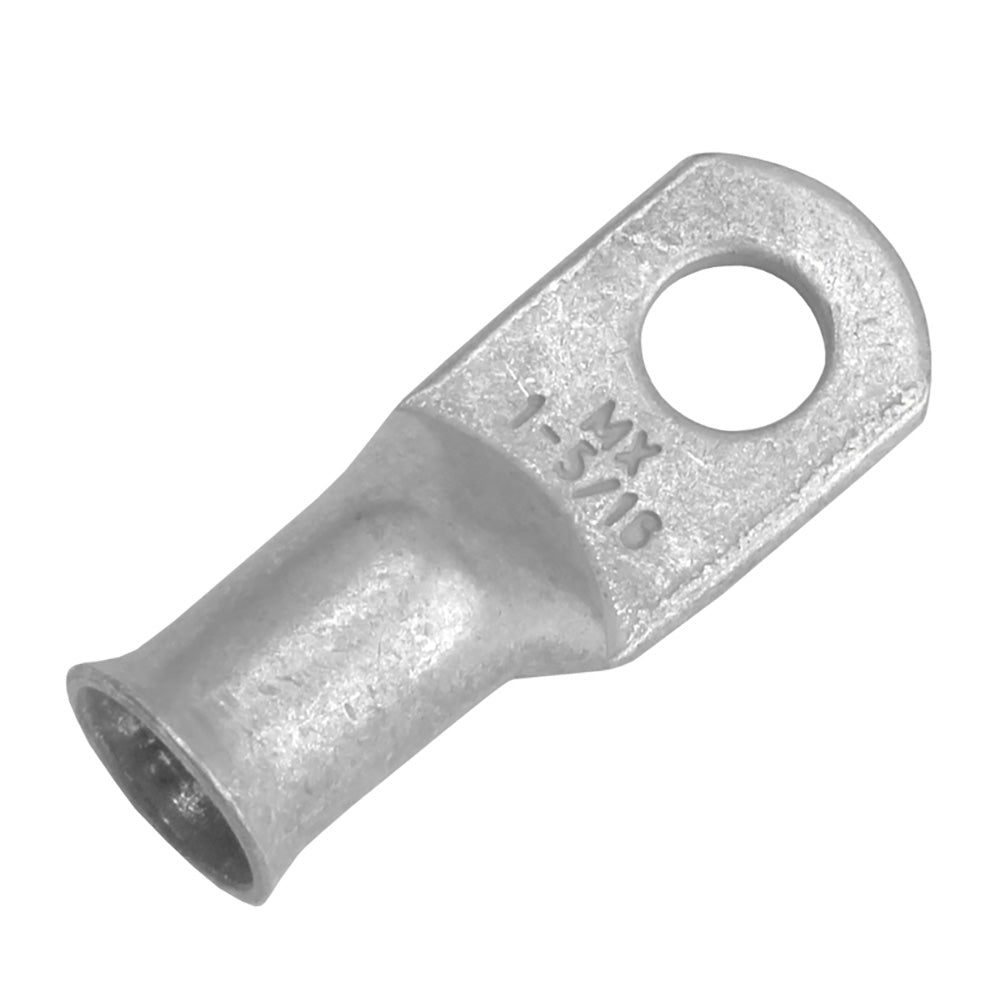

Tinned Lug 1 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 1
- Stud Size: 5/16
- Length: 1.719
- Width: 0.692
- Clearance: 0.406
- Package Size: 10
Ensure a reliable electrical connection with the Pacer Group Tinned Lug, designed specifically for 1 AWG wires and 5/16" stud sizes. This 10-pack of closed-end lugs is perfect for various applications, including marine environments, where durability and waterproofing are essential. Each lug is tin-plated with no exposed seams, making them resistant to corrosion and ideal for creating robust connections that stand the test of time.
Installation is straightforward: simply strip the wire to the appropriate length, slide the lug over the exposed section, and crimp securely using the right tool. For added protection against the elements, consider using epoxy heat shrink tubing. With features like a larger pad area for better contact and compatibility with stranded copper wires, these lugs are a practical choice for anyone looking to enhance their electrical systems.
Features:
* Tin Plated for enhanced corrosion resistance: Tin Plated for enhanced corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V for high-voltage applications: Rated for 600V for high-voltage applications
* Constructed from seamless tubes of 99.9% copper for superior conductivity: Constructed from seamless tubes of 99.9% copper for superior conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area ensures better contact and connection reliability: Larger pad area ensures better contact and connection reliability
* Cable size and stud hole clearly stamped on the pad for easy identification: Cable size and stud hole clearly stamped on the pad for easy identification
* Can be crimped or soldered for versatile installation options: Can be crimped or soldered for versatile installation options
* Highly controlled flare facilitates easy cable insertion: Highly controlled flare facilitates easy cable insertion
* Tight barrel to pad transition ensures longer usable barrel length: Tight barrel to pad transition ensures longer usable barrel length
