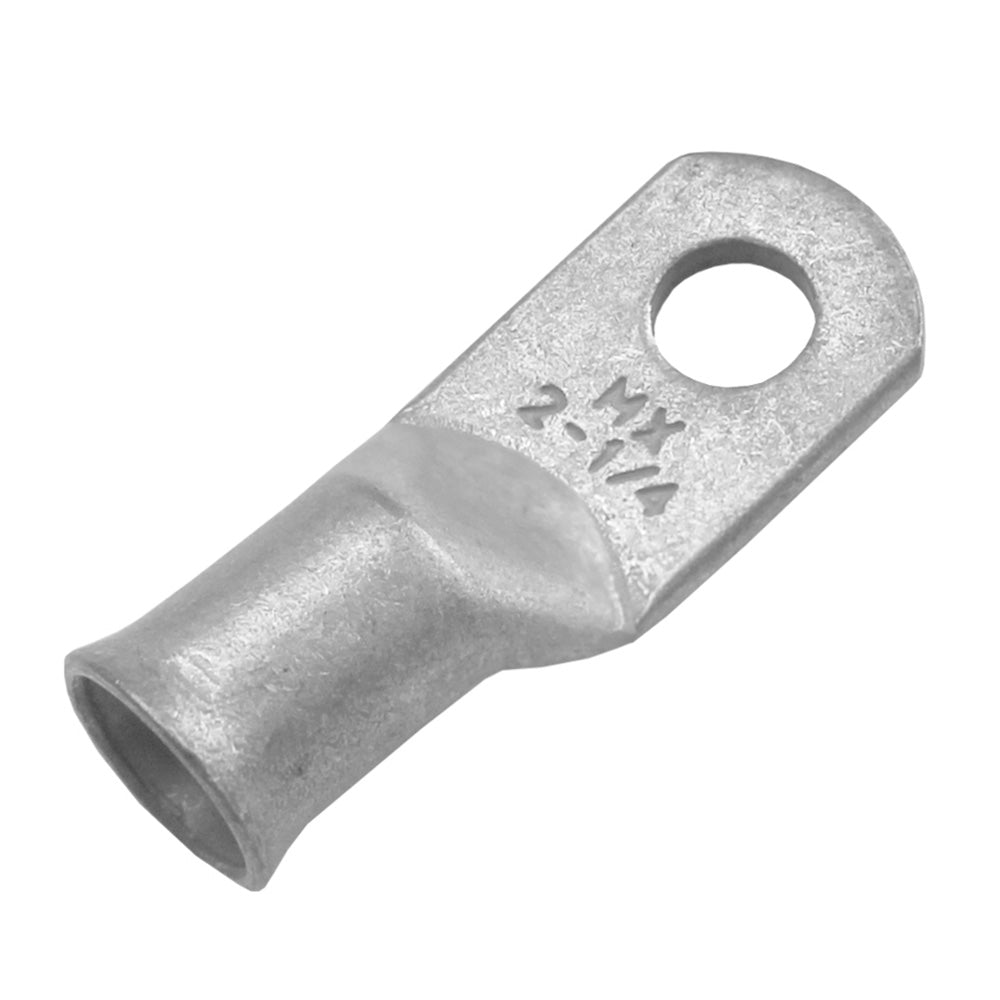

Tinned Lug 2 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 2
- Stud Size: 1/4
- Length: 1.625
- Width: 0.609
- Clearance: 0.406
- Package Size: 10
Ensure the integrity of your electrical connections with the Pacer Group Tinned Lug 2 AWG - 1/4" Stud Size - 10 Pack. These premium closed-end lugs are designed for enhanced durability and longevity, making them perfect for both marine and general applications. With their tin-plated finish and no exposed seams, these lugs provide waterproof connections when used with epoxy heat shrink, effectively protecting your wires from the elements. Simply strip your wire to the correct length, slide on the lug, and crimp for a secure fit.
Pacer's lugs are made from seamless tubes of 99.9% copper for superior conductivity, and they are rated for up to 600V. The design features a larger pad area for improved contact and is suitable for stranded copper wires. This pack includes 10 lugs, perfect for those who demand reliability and performance in their electrical systems. For expert advice on selecting the right lug for your project, reach out to a Pacer expert today.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams for added durability: No exposed seams for added durability
* Rated for 600V, ensuring safety and reliability: Rated for 600V, ensuring safety and reliability
* Constructed from seamless tubes of 99.9% copper for higher conductivity: Constructed from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area for better electrical contact: Larger pad area for better electrical contact
* Cable size and stud hole clearly stamped on the pad: Cable size and stud hole clearly stamped on the pad
* Can be crimped or soldered for versatile installation: Can be crimped or soldered for versatile installation
* Highly controlled flare for easy cable insertion: Highly controlled flare for easy cable insertion
* Tight barrel to pad transition for longer usable barrel length: Tight barrel to pad transition for longer usable barrel length
