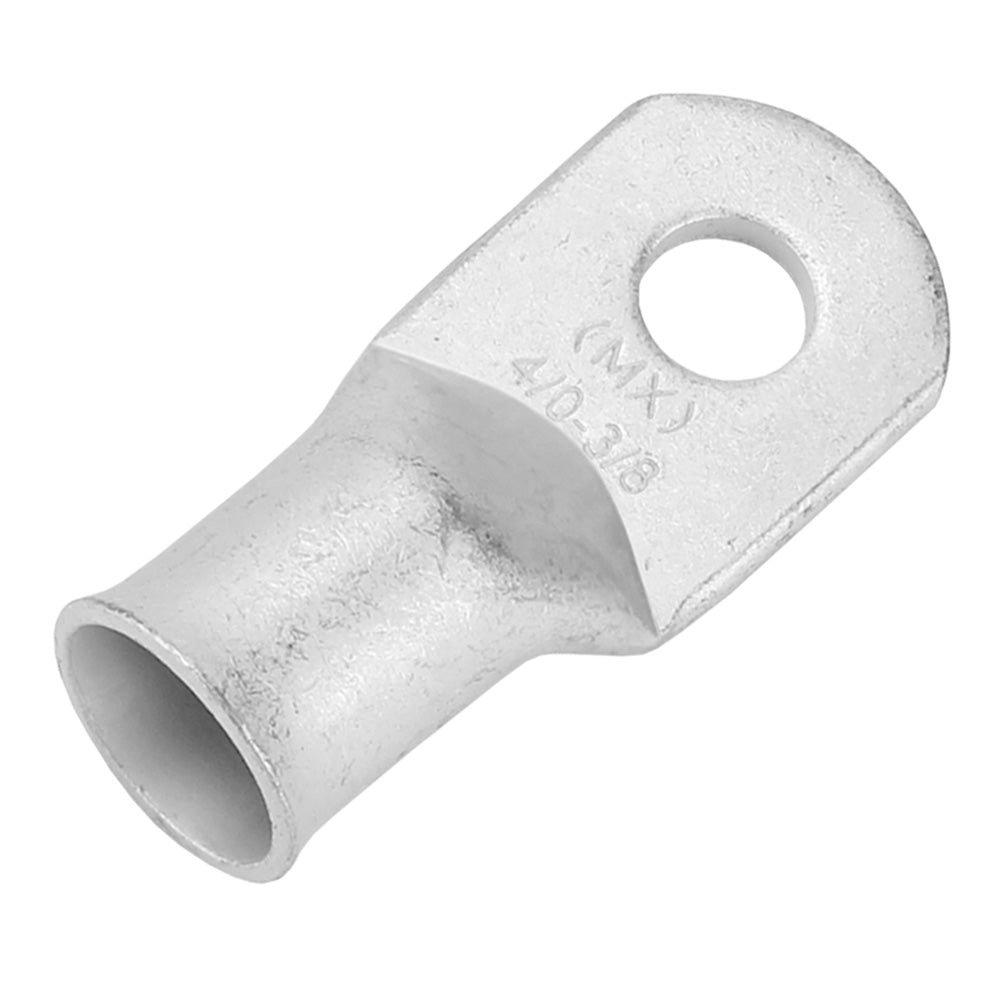

Tinned Lug 4/0 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 4/0
- Stud Size: 3/8
- Length: 2.344
- Width: 0.984
- Clearance: 0.547
- Package Size: 10
Ensure a reliable electrical connection with the Pacer Group Tinned Lug 4/0 AWG with 3/8" stud size, offered in a convenient 10 pack. These closed-end lugs are designed for durability and longevity, making them perfect for various applications, including marine environments. With their tin-plated finish and seamless design, these lugs can withstand the elements, allowing you to create waterproof connections when paired with epoxy heat shrink. Simply strip your wire, slide the lug over, crimp it securely, and enhance its durability with heat shrink for lasting performance.
The Pacer Group Tinned Lugs are crafted from seamless tubes of 99.9% copper, ensuring superior conductivity. Rated for 600V, they accommodate stranded copper wires and feature a larger pad area for improved contact. The cable size and stud hole markings on the pad simplify installation, while the highly controlled flare allows for easy insertion of cables. Whether you are a seasoned professional or a DIY enthusiast, these closed-end lugs provide the reliability and performance you need for any electrical project.
Features:
* Tin plated for enhanced corrosion resistance: Tin plated for enhanced corrosion resistance
* No exposed seams for improved durability: No exposed seams for improved durability
* Rated for 600V applications: Rated for 600V applications
* Made from seamless tubes of 99.9% copper for higher conductivity: Made from seamless tubes of 99.9% copper for higher conductivity
* Designed specifically for stranded copper wires: Designed specifically for stranded copper wires
* Larger pad area ensures better electrical contact: Larger pad area ensures better electrical contact
* Cable size and stud hole clearly stamped on the pad: Cable size and stud hole clearly stamped on the pad
* Can be crimped or soldered for versatile connections: Can be crimped or soldered for versatile connections
* Highly controlled flare enables easy cable insertion: Highly controlled flare enables easy cable insertion
* Tight barrel to pad transition maximizes barrel length: Tight barrel to pad transition maximizes barrel length
