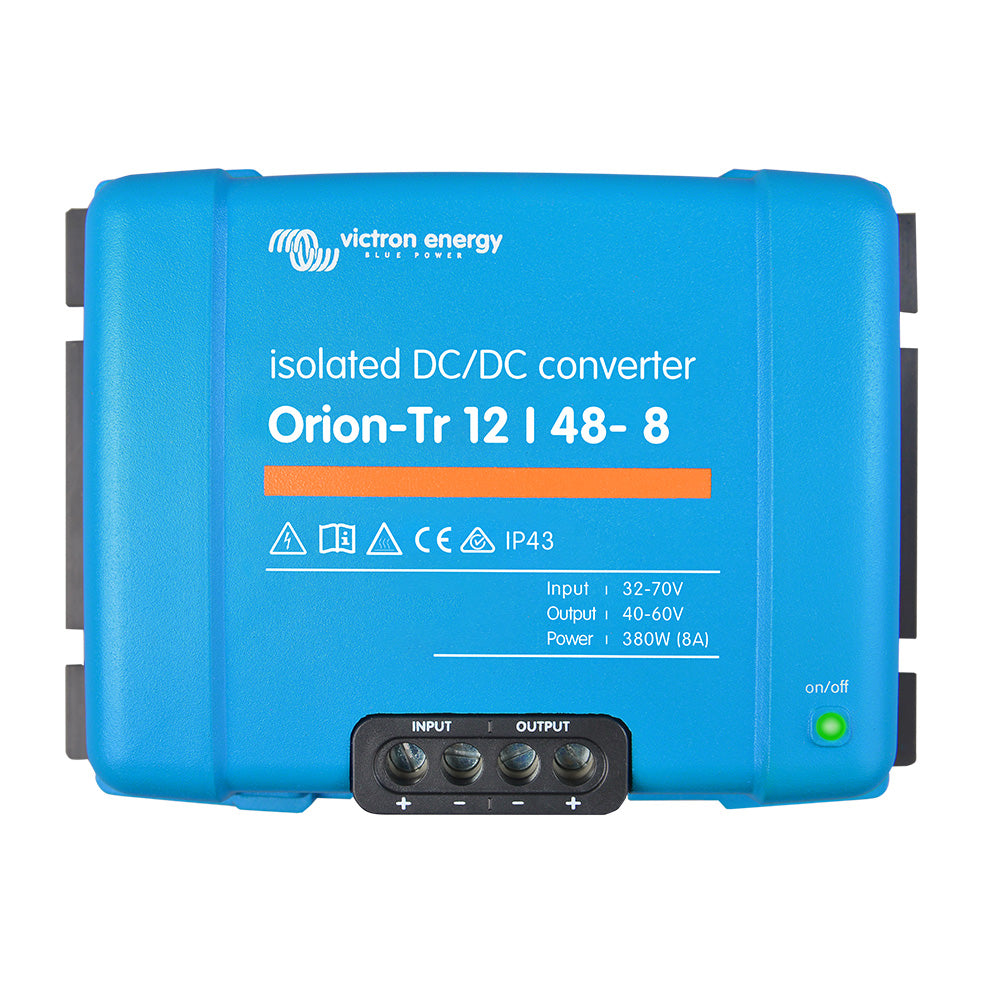

Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55C with a full rated output up to 40C.
Bluetooth Smart enabled
- Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk absorption float
- For lead acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries absorption time is fixed, default 2 hours.
- Alternatively, a fixed output voltage can be chosen.
Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)
- The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery.
Remote on/off
- A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
- An unlimited number of units can be connected in parallel.
High temperature protected
- The output current will reduce at high ambient temperatures.
IP43 protection
- When installed with the screw terminals oriented downward.
Screw terminals
- No special tools are needed for installation.
Input fuse (not replaceable)
Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Orion-Tr Smart 12/48-8A (380W) Isolated DC-DC Charger is an advanced solution for dual battery systems, particularly in vehicles and boats. Designed for seamless operation with both lead-acid and lithium batteries, this professional DC to DC charger features Bluetooth connectivity, allowing you to monitor and program settings directly from your smartphone or tablet using the VictronConnect app. It incorporates an adaptive 3-stage charging algorithm to ensure optimal battery health, whether during routine use or following deep discharges.
Built for durability, the Orion-Tr Smart can endure high temperatures of up to 55?C, with full rated output at 40?C. Its smart alternator compatibility and engine running detection mechanism prevent unwanted discharge of the starter battery. The charger can also be controlled remotely with a simple on/off switch, providing you with convenience and control wherever you go. With the capability to connect multiple units in parallel, you can easily increase output power as needed.
Features:
* Bluetooth Smart enabled for easy monitoring and programming via smartphone or tablet.: Bluetooth Smart enabled for easy monitoring and programming via smartphone or tablet.
* Fully programmable with configurable battery charge algorithms.: Fully programmable with configurable battery charge algorithms.
* Adaptive 3-stage charge algorithm (bulk, absorption, float) to prevent overcharging.: Adaptive 3-stage charge algorithm (bulk, absorption, float) to prevent overcharging.
* Compatible with vehicles featuring smart alternators (Euro 5 and Euro 6 engines).: Compatible with vehicles featuring smart alternators (Euro 5 and Euro 6 engines).
* Remote on/off capability for added convenience.: Remote on/off capability for added convenience.
* Short circuit proof and able to be paralleled to increase output current.: Short circuit proof and able to be paralleled to increase output current.
* High temperature protection with output current reduction at high ambient temperatures.: High temperature protection with output current reduction at high ambient temperatures.
* IP43 protection when installed with screw terminals downward.: IP43 protection when installed with screw terminals downward.
* Easy installation with screw terminals that require no special tools.: Easy installation with screw terminals that require no special tools.
